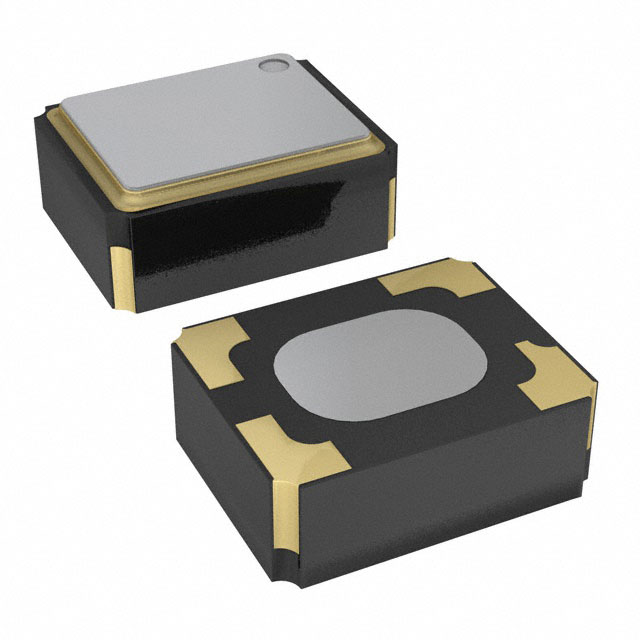

MC-K Series

Catalog

STANDARD CLOCK OSCILLATORS 48MHZ 2016 4PADS CMO S AEC-Q100/Q200

Part	Function	Frequency Stability	Package / Case	Current - Supply (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)	Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency	Output	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Base Resonator [custom]	Ratings	Current - Supply (Disable) (Max)
KYOCERA AVX MC2016K48.0000C16ESH	Enable/Disable	50 ppm	4-SMD No Lead	6 mA	0.031 in	0.8 mm	XO (Standard)	Surface Mount	-40 C	105 ░C	3.63 V	1.6 V	48 MHz	CMOS	1.6 mm	0.079 in	0.063 "	2 mm	Crystal	AEC-Q100 AEC-Q200
KYOCERA AVX MC2016K32.0000C16ESH	Enable/Disable	50 ppm	4-SMD No Lead	5 mA	0.031 in	0.8 mm	XO (Standard)		-40 C	105 ░C	3.63 V	1.6 V	32 MHz	CMOS	1.6 mm	0.079 in	0.063 "	2 mm	Crystal	AEC-Q100 AEC-Q200	5 µA
