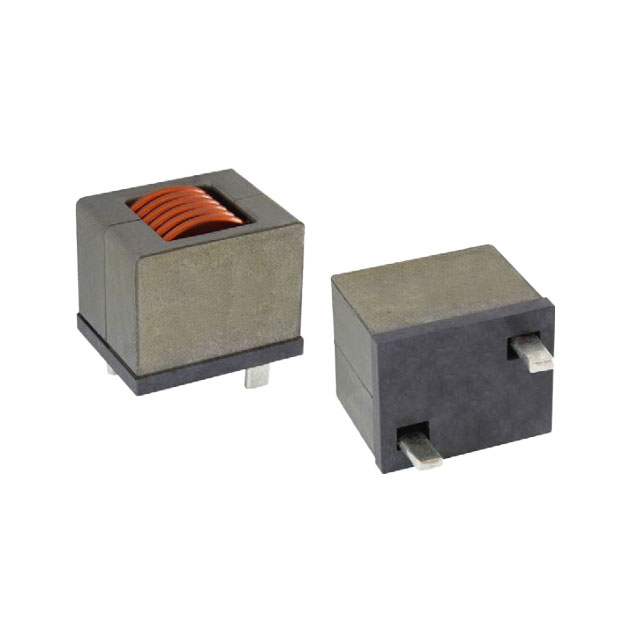

IHDM-1008BC-x0 Series
Manufacturer: Vishay Dale
Beta
⌘K
POWER INDUCTORS - LEADED 2.2UH 20% 63 A
| Part | Package / Case | Frequency - Self Resonant | Inductance | Operating Temperature (Min) | Operating Temperature (Max) | Inductance Frequency - Test | Height - Seated (Max) | Type | Tolerance | Current - Saturation (Isat) | Current Rating | Mounting Type | Supplier Device Package - Pad Count | Supplier Device Package - Orientation | Package Name | Package Pad Count | Shielding | Material - Core | Size / Dimension Width | Size / Dimension Length | DC Resistance (DCR) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Dale | 2 PC Pin Vertical | 69 MHz | 2.2 µH | -40 °C | 180 °C | 100 kHz | 0.896 in | Drum Core Wirewound | 20 % | 204 A | 63 A | Through Hole | 2 PC 2 PC Pin | Vertical | 2 PC Pin Vertical | 2 PC 2 PC Pin | Unshielded | Iron Powder | 0.816 in | 1.005 in | 0.7 mOhm |
