MULTIGIG RT 2-S Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RF CONNECTORS / COAXIAL CONNECTORS CNTCT .047 SEMIRIGID SMPM STR CBL CONN
| Part | Contact Finish | Pin or Socket | Type | Contact Termination | Wire Gauge | Wire Gauge | Dielectric Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Body Material | Fastening Type | Housing Color | Frequency - Max [Max] | Shield Termination | Connector Style | Mounting Type | Impedance | Cable Group | Cable Group | Connector Type | Number of Ports | Center Contact Material | Features | Color | Accessory Type | Material Flammability Rating | Voltage Rating | Pitch | Pitch | Number of Rows [custom] | Number of Positions Loaded | Number of Columns | Features | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Contact Finish Thickness | Contact Finish Thickness | Termination | Connector Usage | Number of Positions | Mounting Feature | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gold | Center Pin | Coaxial | Solder | Coaxial Cable | 0.047 in | |||||||||||||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Solder | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Gold | Beryllium Copper | Snap-On | Gold | 26 GHz | Solder | SMPM | Free Hanging (In-Line) | 50 Ohms | 0.085 " 0.086 " 0.086 in | RG-405 | Plug Male Pin | 1 | Beryllium Copper | ||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | |||||||||||||||||||||||||||||||||||||||||||||||

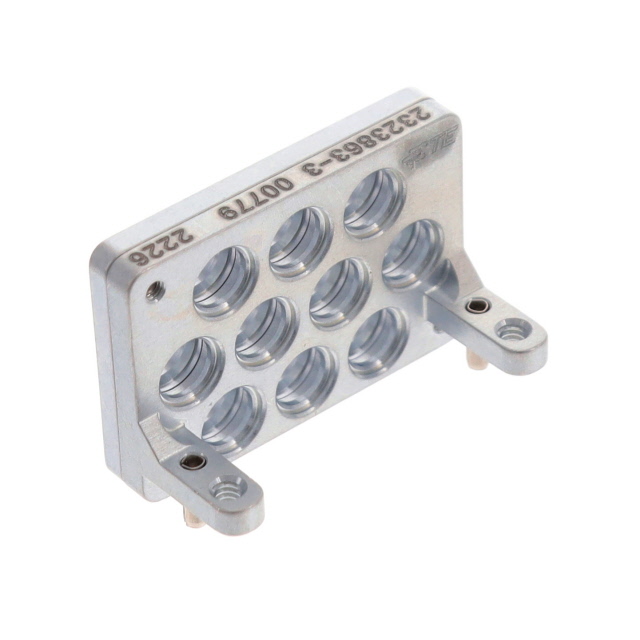

 TE Connectivity AMP Connectors | Aluminum | SMPM | 10 | Silver | Housing Module | ||||||||||||||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Gold | -55 C | 125 °C | MULTIG Center | Board Edge Right Angle Through Hole | Plug Male Blades | Black | UL94 V-0 | 50 VAC | 1.8 mm | 0.071 in | 7 | All | 16 | Board Guide | 40 | 32 | 8 | 50 µin | 1.27 µm | Press-Fit | Daughtercard | 112 | ||||||||||||||||||||||||
TE Connectivity AMP Connectors | |||||||||||||||||||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Gold | Center Socket | Coaxial | Solder | Coaxial Cable 0.085" | ||||||||||||||||||||||||||||||||||||||||||
TE Connectivity AMP Connectors | |||||||||||||||||||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Solder | Snap-On | Gold | Solder | SMPM | Panel Mount | 50 Ohms | 0.047 in | Plug Male Pin | 1 | Beryllium Copper | Smooth Bore | Bulkhead | ||||||||||||||||||||||||||||||||||
TE Connectivity AMP Connectors | Gold | -55 C | 125 °C | MULTIG Center | Board Edge Right Angle Through Hole | Plug Male Blades | Black | UL94 V-0 | 50 VAC | 1.8 mm | 0.071 in | 7 | 16 | Board Guide | 31 | 20 | 20 | 50 µin | 1.27 µm | Press-Fit | Daughtercard | 112 | 6 | 3 | 109 |
