3282-8P Series

Catalog

CONN PLUG MALE 8P GOLD SLDR CUP

Part	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Backshell Material, Plating	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Number of Positions	Fastening Type	Primary Material	Color	Current Rating (Amps)	Mounting Type	Connector Type	Contact Finish - Mating	Contact Material	Shielding	Orientation	Voltage Rating	Features
SWITCHCRAFT/CONXALL 3282-8PG-515	Weathertight	115 °C	-40 C	Nylon Polyamide (PA)	3.81 mm	0.15 "	4.32 mm	0.17 in	8	Bayonet Lock	Plastic	Black	5.6 A	Free Hanging (In-Line)	Plug Male Pins	Gold	Brass	Unshielded	Keyed	600 V	Backshell Cable Clamp
SWITCHCRAFT/CONXALL 3282-8PG-3DC	Weathertight	115 °C	-40 C	Nylon Polyamide (PA)					8	Bayonet Lock	Plastic	Black	5.6 A	Free Hanging (In-Line)	Plug Male Pins	Gold	Brass	Unshielded	Keyed	600 V	Backshell

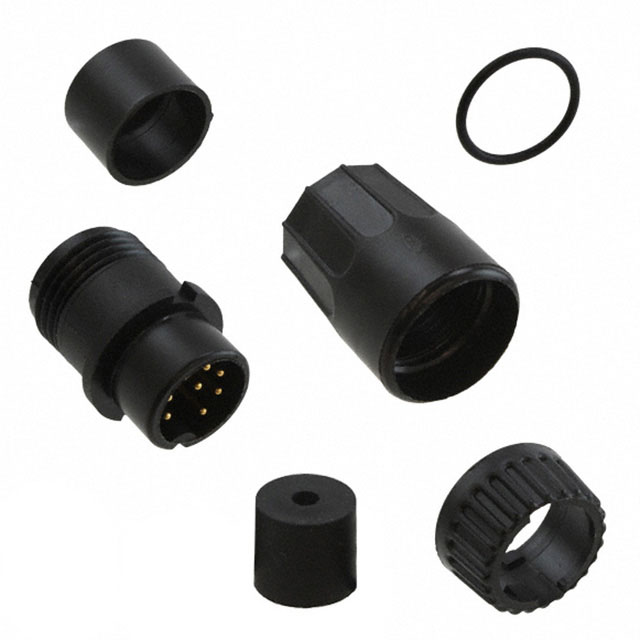

SWITCHCRAFT/CONXALL 3282-8PG-321	Weathertight	115 °C	-40 C	Nylon Polyamide (PA)	5.33 mm	0.21 in	5.84 mm	0.23 in	8	Bayonet Lock	Plastic	Black	5.6 A	Free Hanging (In-Line)	Plug Male Pins	Gold	Brass	Unshielded	Keyed	600 V	Backshell
SWITCHCRAFT/CONXALL 3282-8PG-318	Weathertight	115 °C	-40 C	Nylon Polyamide (PA)	4.57 mm	0.18 "	5.08 mm	0.2 "	8	Bayonet Lock	Plastic	Black	5.6 A	Free Hanging (In-Line)	Plug Male Pins	Gold	Brass	Unshielded	Keyed	600 V	Backshell
SWITCHCRAFT/CONXALL 3282-8PG-315	Weathertight	115 °C	-40 C	Nylon Polyamide (PA)	3.81 mm	0.15 "	4.32 mm	0.17 in	8	Bayonet Lock	Plastic	Black	5.6 A	Free Hanging (In-Line)	Plug Male Pins	Gold	Brass	Unshielded	Keyed	600 V	Backshell
