3977-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

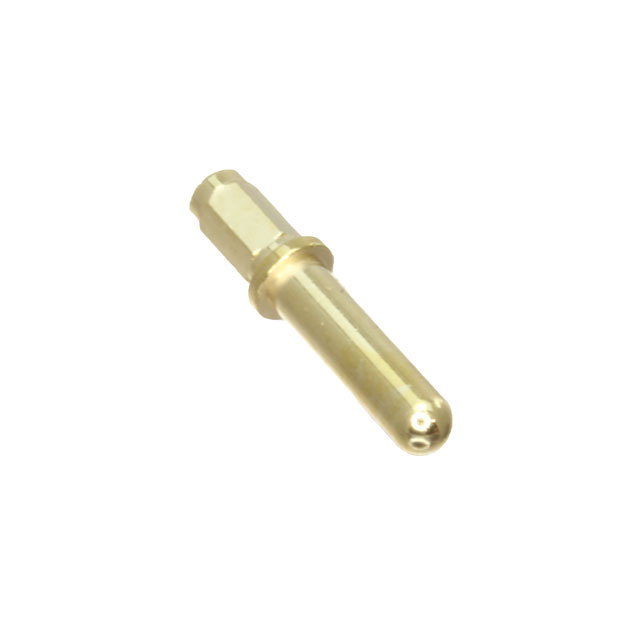

PRESS-FIT PCB PIN
| Part | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Pin Size - Below Flange | Pin Size - Below Flange | Length - Below Flange [x] | Length - Below Flange [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Insulation | Terminal Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Mounting Type | Contact Material | Contact Finish | Length - Above Flange [x] | Length - Above Flange [x] | Length - Overall [x] | Length - Overall [x] | Termination | Terminal Style | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.07 in | 1.78 mm | 1.58 mm | 0.062 in | 0.125 " | 3.18 mm | 0.093 in | 2.36 mm | Non-Insulated | PC Pin | 0.062 in | 1.57 mm | Through Hole | Brass Alloy | Gold | 0.235 in | 5.97 mm | 9.53 mm | 0.375 in | Press-Fit | Single End | 0.25 Ám | 10 Áin |
