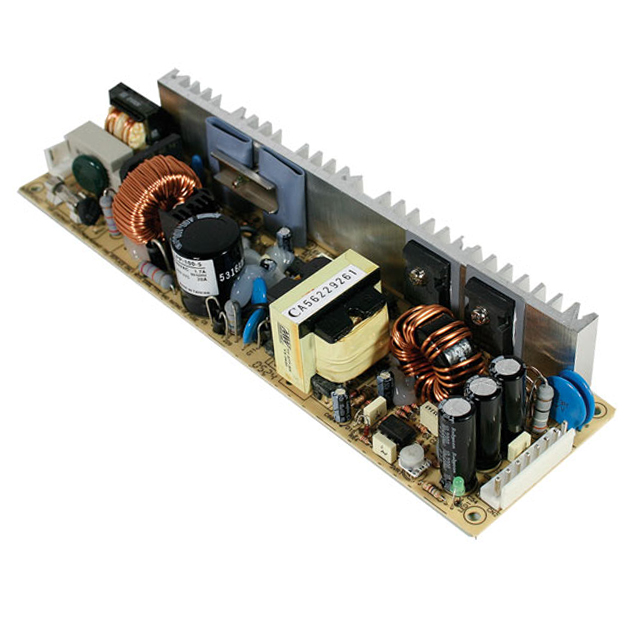

LPP-100 Series

Catalog

AC/DC CONVERTER 15V 101W

Part	Power (Watts)	Number of Outputs	Current - Output 1	Features	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1	Voltage - Isolation	Efficiency	Mounting Type	Applications
MEAN WELL USA Inc. LPP-100-15	101 W	1	6.7 A	Adjustable Output PFC Universal Input	CB CE cURus TUV	85 VAC 120 VDC	264 VAC 370 VDC	-10 °C	60 °C	Open Frame	222 mm	2.44 "	1.32 in	62 mm	33.6 mm	8.74 in	15 V	3000 V	80 %	Chassis Mount	ITE (Commercial)
MEAN WELL USA Inc. LPP-100-5	100 W	1	20 A	Adjustable Output PFC Universal Input	CB CE cURus TUV	85 VAC 120 VDC	264 VAC 370 VDC	-10 °C	60 °C	Open Frame	222 mm	2.44 "	1.32 in	62 mm	33.6 mm	8.74 in	5 V	3000 V	75 %	Chassis Mount	ITE (Commercial)
MEAN WELL USA Inc. LPP-100-3.3	66 W	1	20 A	Adjustable Output PFC Universal Input	CB CE cURus TUV	85 VAC 120 VDC	264 VAC 370 VDC	-10 °C	60 °C	Open Frame	222 mm	2.44 "	1.32 in	62 mm	33.6 mm	8.74 in	3.3 V	3000 V	69 %	Chassis Mount	ITE (Commercial)
MEAN WELL USA Inc. LPP-100-24	101 W	1	4.2 A	Adjustable Output PFC Universal Input	CB CE cURus TUV	85 VAC 120 VDC	264 VAC 370 VDC	-10 °C	60 °C	Open Frame	222 mm	2.44 "	1.32 in	62 mm	33.6 mm	8.74 in	24 V	3000 V	83 %	Chassis Mount	ITE (Commercial)
MEAN WELL USA Inc. LPP-100-12	102 W	1		Adjustable Output PFC Universal Input	CB CE cURus TUV	85 VAC 120 VDC	264 VAC 370 VDC	-10 °C	60 °C	Open Frame	222 mm	2.44 "	1.32 in	62 mm	33.6 mm	8.74 in	12 V	3000 V	79 %	Chassis Mount	ITE (Commercial)
MEAN WELL USA Inc. LPP-100-48	101 W	1	2.1 A	Adjustable Output PFC Universal Input	CB CE cURus TUV	85 VAC 120 VDC	264 VAC 370 VDC	-10 °C	60 °C	Open Frame	222 mm	2.44 "	1.32 in	62 mm	33.6 mm	8.74 in	48 V	3000 V	83 %	Chassis Mount	ITE (Commercial)
MEAN WELL USA Inc. LPP-100-13.5	101 W	1		Adjustable Output PFC Universal Input	CB CE cURus TUV	85 VAC 120 VDC	264 VAC 370 VDC	-10 °C	60 °C	Open Frame	222 mm	2.44 "	1.32 in	62 mm	33.6 mm	8.74 in	13.5 V	3000 V	79 %	Chassis Mount	ITE (Commercial)
