RJSSE Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
CONN MOD JACK 6P6C UNSHLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Connector Type | Number of Positions/Contacts [y] | Number of Positions/Contacts [x] | Number of Ports | LED Color | Shielding | Contact Material | Contact Finish | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Tab Direction | Mounting Type | Orientation | Termination | Features | Number of Positions/Contacts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | -55 C | 85 °C | Thermoplastic | Jack | 6 | 6 | 2 | Does Not Contain LED | Unshielded | Phosphor Bronze | Gold | 1 | ||||||||
 Amphenol ICC (Commercial Products) | -55 C | 85 °C | Thermoplastic | Jack | 6 | 6 | 1 | Does Not Contain LED | Unshielded | Phosphor Bronze | Gold | 1 | 20 µin | 0.51 µm | Up | Surface Mount | 90 ° | Solder | ||
 Amphenol ICC (Commercial Products) | -55 C | 85 °C | Thermoplastic | Jack | 6 | 6 | 1 | Does Not Contain LED | Unshielded | Phosphor Bronze | Gold | 1 | 20 µin | 0.51 µm | Up | Surface Mount | 90 ° | Solder | Light Pipe | |

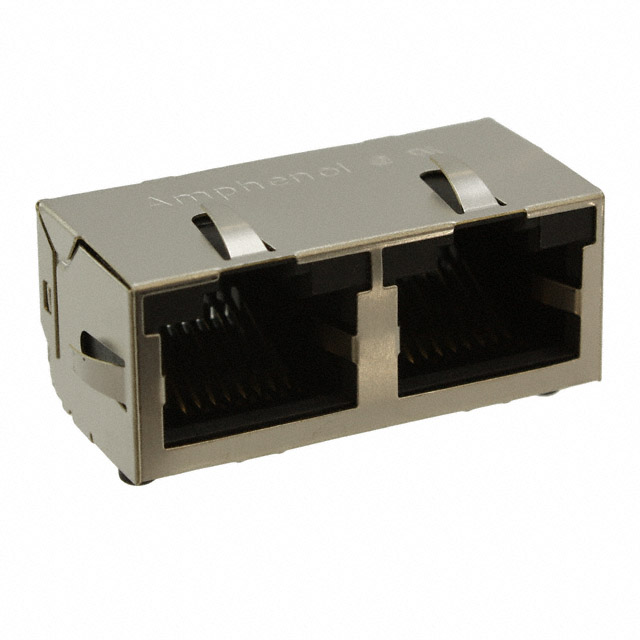

 Amphenol ICC (Commercial Products) | -55 C | 85 °C | Thermoplastic | Jack | 2 | Does Not Contain LED | EMI Finger Shielded | Phosphor Bronze | Gold | 1 | 20 µin | 0.51 µm | Up | Surface Mount | 90 ° | Solder | Board Guide Solder Retention | 8p8c (RJ45 Ethernet) | ||
 Amphenol ICC (Commercial Products) | -55 C | 85 °C | Thermoplastic | Jack | 1 | Does Not Contain LED | EMI Finger Shielded | Phosphor Bronze | Gold | 1 | 20 µin | 0.51 µm | Up | Surface Mount | 90 ° | Solder | Board Guide | 8p8c (RJ45 Ethernet) | ||
 Amphenol ICC (Commercial Products) | -55 C | 85 °C | Thermoplastic | Jack | 1 | Does Not Contain LED | EMI Finger Shielded | Phosphor Bronze | Gold | 1 | 20 µin | 0.51 µm | Up | Surface Mount | 90 ° | Solder | Board Guide Light Pipe Solder Retention | 8p8c (RJ45 Ethernet) | ||
 Amphenol ICC (Commercial Products) | -55 C | 85 °C | Thermoplastic | Jack | 1 | Does Not Contain LED | EMI Finger Shielded | Phosphor Bronze | Gold | 1 | 50 µin | 1.27 µm | Up | Surface Mount | 90 ° | Solder | Board Guide Light Pipe Solder Retention | 8p8c (RJ45 Ethernet) | ||
Amphenol ICC (Commercial Products) | -55 C | 85 °C | Thermoplastic | Jack | 1 | Does Not Contain LED | EMI Finger Shielded | Phosphor Bronze | Gold | 1 | 50 µin | 1.27 µm | Up | Surface Mount | 90 ° | Solder | Board Guide Light Pipe Solder Retention | 8p8c (RJ45 Ethernet) | ||
 Amphenol ICC (Commercial Products) | -55 C | 85 °C | Thermoplastic | Jack | 1 | Does Not Contain LED | Shielded | Phosphor Bronze | Gold | 1 | 20 µin | 0.51 µm | Up | Surface Mount | 90 ° | Solder | 8p8c (RJ45 Ethernet) | |||

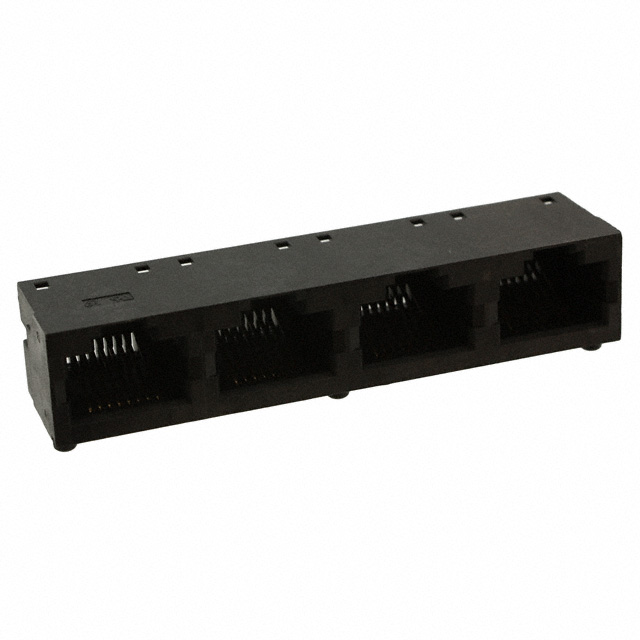

 Amphenol ICC (Commercial Products) | -55 C | 85 °C | Thermoplastic | Jack | 4 | Does Not Contain LED | Unshielded | Phosphor Bronze | Gold | 1 | 20 µin | 0.51 µm | Up | Surface Mount | 90 ° | Solder | Board Guide Solder Retention | 8p8c (RJ45 Ethernet) |
