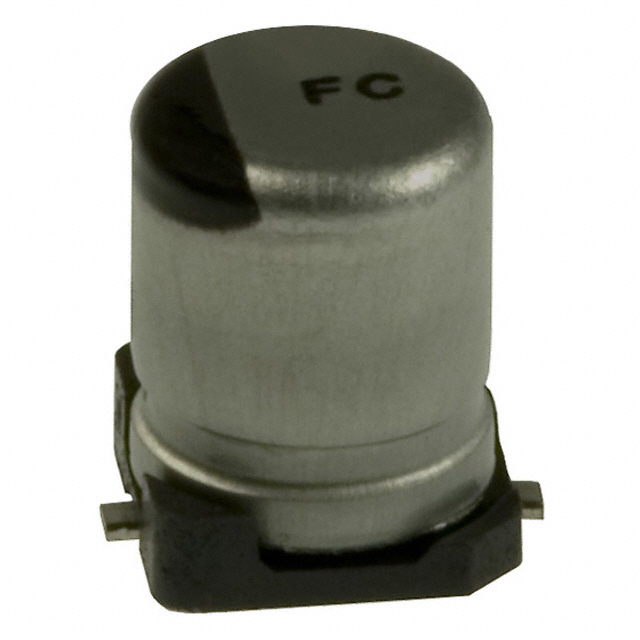

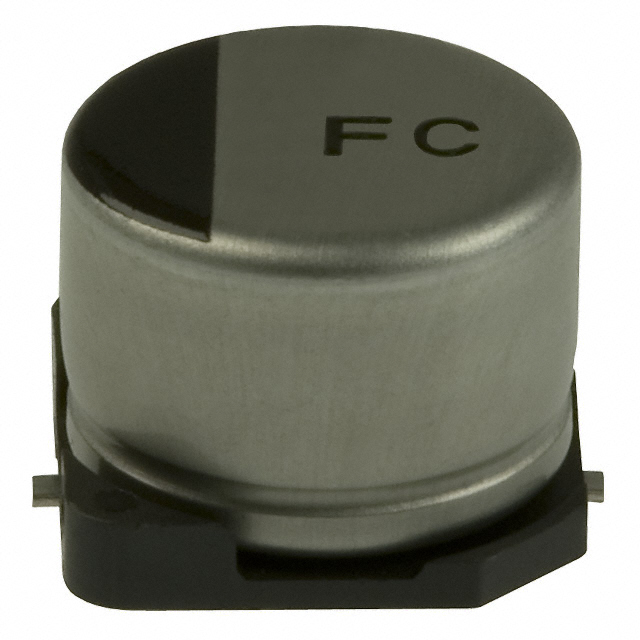

EEE-FC Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP ALUM 33UF 20% 35V SMD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Polarization	Lifetime @ Temp.	Tolerance	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Impedance	Capacitance	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Ratings	Voltage - Rated	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Electronic Components EEE-FC1V330P	-40 C	105 ░C	Automotive	Polar	1000 Hrs	20 %	Surface Mount	0.244 in	6.2 mm	400 mOhms	33 ÁF	Radial Can - SMD	0.315 in	8 mm	8.3 mm	8.3 mm	0.327 in	0.327 in	AEC-Q200	35 V	230 mA	172.5 mA
Panasonic Electronic Components EEE-FC1E680P	-40 C	105 ░C	Automotive	Polar	1000 Hrs	20 %	Surface Mount			300 mOhms	68 µF	Radial Can - SMD	0.315 in	8 mm	8.3 mm	8.3 mm	0.327 in	0.327 in	AEC-Q200	25 VDC	450 mA	337.5 mA	0.402 in	10.2 mm
Panasonic Electronic Components EEE-FC1H470P	-40 C	105 ░C	Automotive	Polar	1000 Hrs 1000 Hrs	20 % 20 %	Surface Mount			300 mOhms	47 µF	Radial Can - SMD	0.394 in	10 mm	10.3 mm	10.3 mm	0.406 "	0.406 in	AEC-Q200	50 VDC	500 mA	375 mA	0.402 in	10.2 mm
Panasonic Electronic Components EEE-FC0J152P	-40 C	105 ░C	Automotive	Polar	1000 Hrs	20 %	Surface Mount			150 mOhms	1.5 mF	Radial Can - SMD	0.394 in	10 mm	10.3 mm	10.3 mm	0.406 "	0.406 in	AEC-Q200	6.3 VDC		502.5 mA	0.402 in	10.2 mm
Panasonic Electronic Components EEE-FC1C101P	-40 C	105 ░C	Automotive	Polar	1000 Hrs	20 %	Surface Mount	0.244 in	6.2 mm	400 mOhms	100 µF	Radial Can - SMD	0.315 in	8 mm	8.3 mm	8.3 mm	0.327 in	0.327 in	AEC-Q200	16 V	230 mA	172.5 mA
Panasonic Electronic Components EEE-FC0J221P	-40 C	105 ░C	Automotive	Polar	1000 Hrs	20 %	Surface Mount	0.244 in	6.2 mm	400 mOhms	220 µF	Radial Can - SMD	0.315 in	8 mm	8.3 mm	8.3 mm	0.327 in	0.327 in	AEC-Q200	6.3 VDC	230 mA	172.5 mA
Panasonic Electronic Components EEE-FC1E471P	-40 C	105 ░C	Automotive	Polar	1000 Hrs	20 %	Surface Mount			150 mOhms	470 µF	Radial Can - SMD	0.394 in	10 mm	10.3 mm	10.3 mm	0.406 "	0.406 in	AEC-Q200	25 VDC		502.5 mA	0.402 in	10.2 mm
Panasonic Electronic Components EEE-FC1H1R0R	-40 C	105 ░C	Automotive	Polar	1000 Hrs	20 %	Surface Mount			5 Ohms	1 µF	Radial Can - SMD	0.157 in	4 mm	4.3 mm	4.3 mm	0.169 in	0.169 "	AEC-Q200	50 VDC	30 mA		0.213 in	5.4 mm
Panasonic Electronic Components EEE-FC1C100AR	-40 C	105 ░C	Automotive High Temperature Reflow	Polar	1000 Hrs	20 %	Surface Mount			3 Ohms	10 µF	Radial Can - SMD	0.157 in	4 mm	4.3 mm	4.3 mm	0.169 in	0.169 "	AEC-Q200	16 V	60 mA	45 mA	0.213 in	5.4 mm
Panasonic Electronic Components EEE-FC0J152AP	-40 C	105 ░C	Automotive High Temperature Reflow	Polar	1000 Hrs	20 %	Surface Mount			150 mOhms	1.5 mF	Radial Can - SMD	0.394 in	10 mm	10.3 mm	10.3 mm	0.406 "	0.406 in	AEC-Q200	6.3 VDC		502.5 mA	0.402 in	10.2 mm
