3212J Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

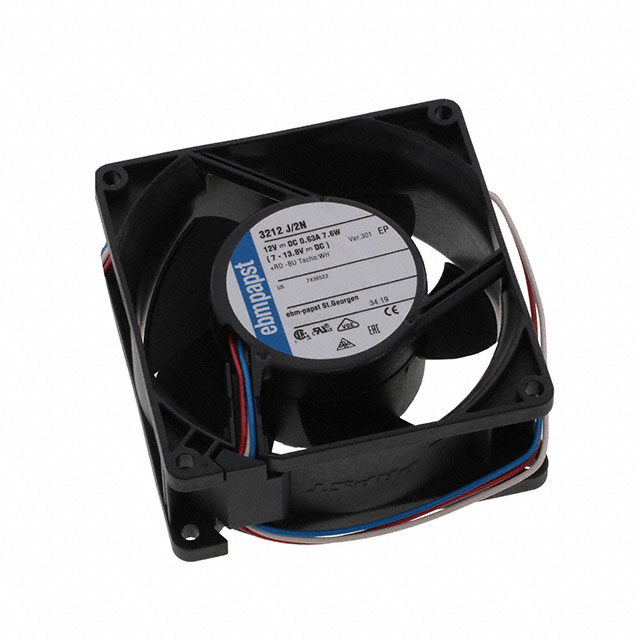

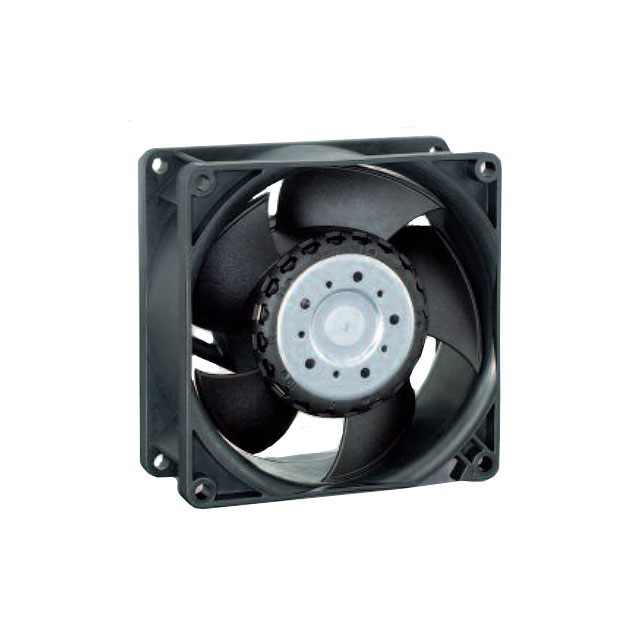

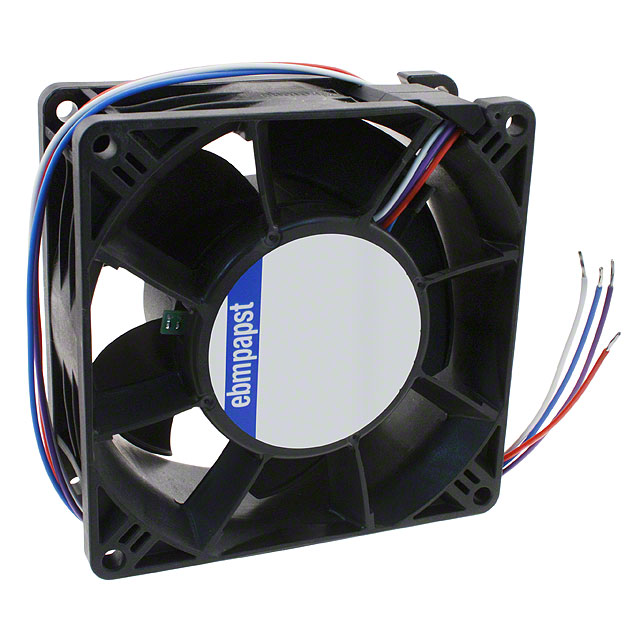

DC AXIAL FAN, 12 V, SQUARE, 92 MM, 38 MM, BALL BEARING, 164.8 CFM
| Part | Voltage Range [Max] | Voltage Range [Min] | Material - Frame | Material - Blade | Current Rating (Amps) | Lifetime @ Temp. | Size / Dimension [y] | Size / Dimension [x] | Approval Agency | RPM | Noise | Bearing Type | Termination | Air Flow | Air Flow | Power (Watts) | Features | Fan Type | Width [y] | Operating Temperature [Min] | Operating Temperature [Max] | Weight [custom] | Weight [custom] | Voltage - Rated | Weight [custom] | Weight [custom] | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 13.8 VDC | 6 VDC | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polyamide (PA) Nylon Fiberglass Reinforced | 4.2 A | 40 °C 60000 Hrs | 92 mm | 92 mm | CSA UL VDE | 13000 RPM | 76 dB(A) | Ball | 4 Wire Leads | 165 CFM | 4.62 mł/min | 50 W | PWM Control Speed Sensor (Tach) | Tubeaxial | 38 mm | -20 ░C | 70 °C | 0.62 lb | 281.23 g | 12 VDC | ||||
ebm-papst Inc. | 13.8 VDC | 6 VDC | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polyamide (PA) Nylon Fiberglass Reinforced | 40 °C 60000 Hrs | 92 mm | 92 mm | CSA UL VDE | 13000 RPM | 73 dB(A) | Ball | 2 Wire Leads | 165 CFM | 4.62 mł/min | 50 W | Tubeaxial | 38 mm | -20 ░C | 70 °C | 12 VDC | 0.617 lb | 279.87 g | ||||||
 ebm-papst Inc. | 13.8 VDC | 7 V | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polyamide (PA) Nylon Fiberglass Reinforced | 70000 Hrs | 92 mm | 92 mm | CSA UL VDE | 6000 RPM | 51 dB(A) | Ball | 3 Wire Leads | 76.5 CFM | 2.14 mł/min | 7.5 W | Locked Rotor Protection Speed Sensor (Tach) | Tubeaxial | 38 mm | -20 ░C | 70 °C | 12 VDC | |||||||
 ebm-papst Inc. | Polyamide (PA) Nylon Fiberglass Reinforced | 70000 Hrs | 92 mm | 92 mm | CSA UL VDE | 6800 RPM | 55 dB(A) | Ball | 2 Wire Leads | 86 CFM | 2.41 m³/min | 9 W | Tubeaxial | 38 mm | -20 ░C | 70 °C | 12 VDC | 239.95 g | 0.529 lb |
