PJE8403 Series

Catalog

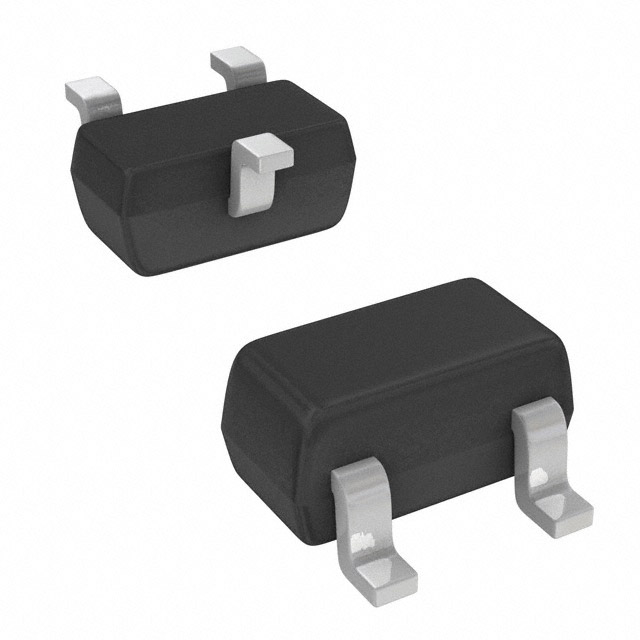

SOT-523, MOSFET

Part	Vgs(th) (Max) @ Id	Rds On (Max) @ Id, Vgs [Max]	Vgs (Max) [Max]	Input Capacitance (Ciss) (Max) @ Vds [Max]	Gate Charge (Qg) (Max) @ Vgs	Mounting Type	Power Dissipation (Max) [Max]	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Technology	Operating Temperature [Max]	Operating Temperature [Min]	FET Type	Package / Case	Current - Continuous Drain (Id) @ 25°C	Supplier Device Package
Panjit International Inc. PJE8403_R1_00001	1 V	340 mOhm	8 V	151 pF	2.2 nC	Surface Mount	300 mW	20 V	1.8 V	4.5 V	MOSFET (Metal Oxide)	150 °C	-55 °C	P-Channel	SC-89 SOT-490	600 mA	SOT-523 Flat Leads
