3-102 Series

Catalog

MSM MECHANICAL METAL LINE SWITCH

Part	Mechanical Life	Electrical Life	Voltage Rating - DC	Actuator Marking	Termination Style	Panel Cutout Dimensions [diameter]	Circuit	Illumination Type, Color	Switch Function	Type	Actuator Type	Features	Illumination Voltage (Nominal)	Ingress Protection	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Current Rating (Amps)	Voltage Rating - AC
SCHURTER Inc. 3-102-633	1500000 Cycles	200000 Cycles	30 V	No Marking	Quick Connect - 0.110" (2.8mm)	16.1 mm	SPDT	LED Red	On-Mom	Anti-Vandal Illuminated	Button Flush Round	Ceramic Actuator	24 V	IP40	Panel Mount Front	85 °C	-25 °C	Clear	100 mA

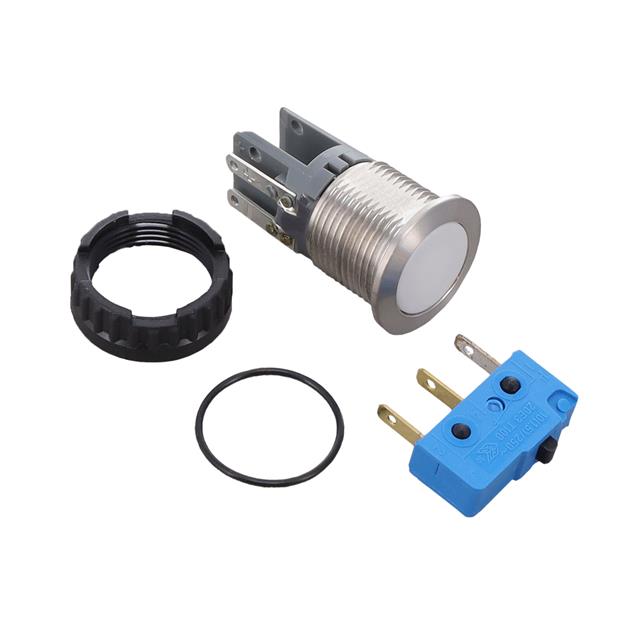

SCHURTER Inc. 3-102-648	1500000 Cycles	50000 Cycles		No Marking	Quick Connect - 0.110" (2.8mm)	16.1 mm	SPDT	LED White	On-Mom	Anti-Vandal Illuminated	Button Flush Round	Ceramic Actuator	24 V	IP40	Panel Mount Front	85 °C	-25 °C	Clear	10 A	250 V

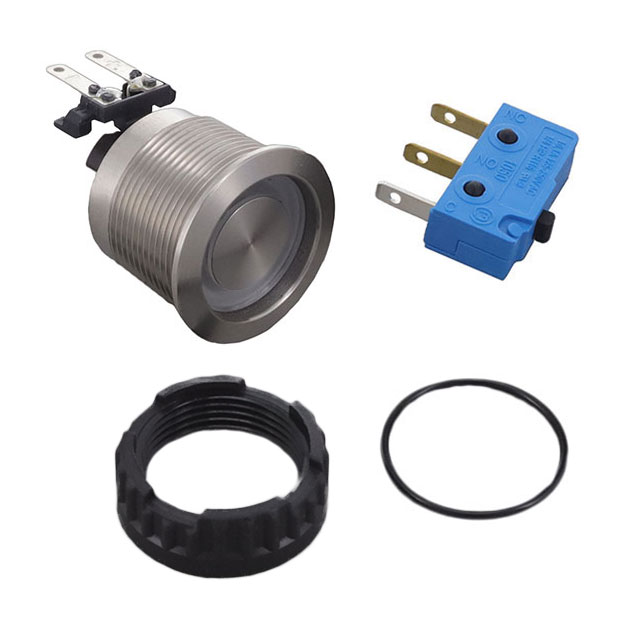

SCHURTER Inc. 3-102-618	1500000 Cycles	200000 Cycles	30 V	No Marking	Quick Connect - 0.110" (2.8mm)	16.1 mm	SPDT	LED Red	On-Mom	Anti-Vandal Illuminated	Button Flush Round		24 V	IP40	Panel Mount Front	85 °C	-25 °C	Silver	100 mA

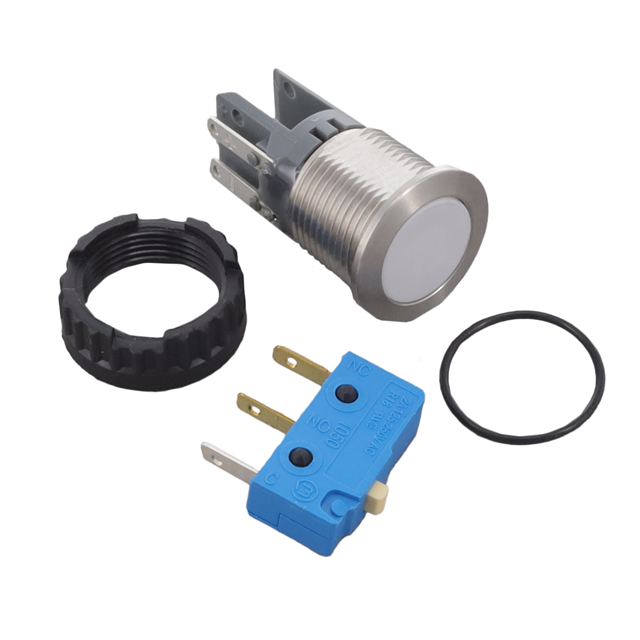

SCHURTER Inc. 3-102-636	1500000 Cycles	200000 Cycles	30 V	No Marking	Quick Connect - 0.110" (2.8mm)	16.1 mm	SPDT	Green LED	On-Mom	Anti-Vandal Illuminated	Button Flush Round	Ceramic Actuator	24 V	IP40	Panel Mount Front	85 °C	-25 °C	Clear	100 mA

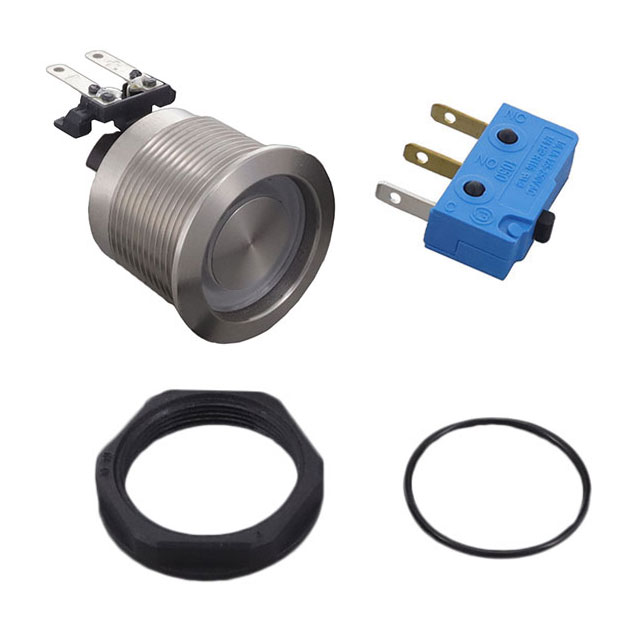

SCHURTER Inc. 3-102-627	1500000 Cycles	200000 Cycles	30 V	No Marking	Quick Connect - 0.110" (2.8mm)	16.1 mm	SPDT	LED Yellow	On-Mom	Anti-Vandal Illuminated	Button Flush Round		24 V	IP40	Panel Mount Front	85 °C	-25 °C	Silver	100 mA

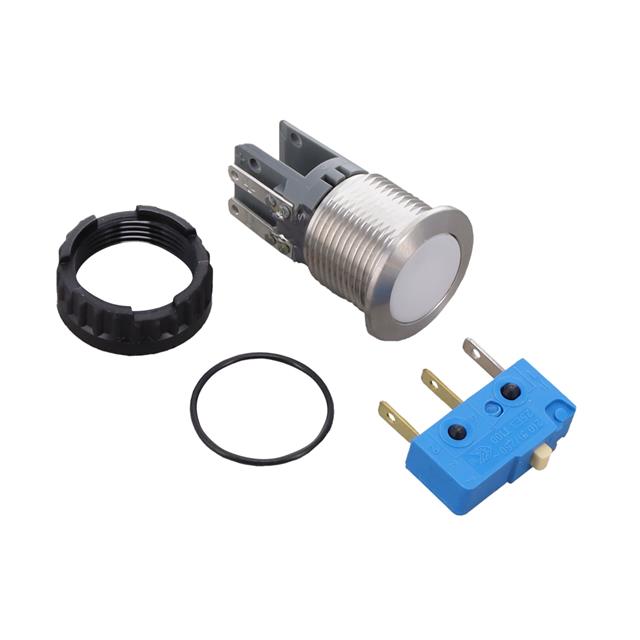

SCHURTER Inc. 3-102-640	1500000 Cycles	200000 Cycles	30 V	No Marking	Quick Connect - 0.110" (2.8mm)	16.1 mm	SPDT	Blue LED	On-Mom	Anti-Vandal Illuminated	Button Flush Round	Ceramic Actuator	24 V	IP40	Panel Mount Front	85 °C	-25 °C	Clear	100 mA
SCHURTER Inc. 3-102-632	1500000 Cycles	50000 Cycles		No Marking	Quick Connect - 0.110" (2.8mm)	16.1 mm	SPDT	LED White	On-Mom	Anti-Vandal Illuminated	Button Flush Round		24 V	IP40	Panel Mount Front	85 °C	-25 °C	Silver	10 A	250 V
SCHURTER Inc. 3-102-620	1500000 Cycles	50000 Cycles		No Marking	Quick Connect - 0.110" (2.8mm)	16.1 mm	SPDT	LED Red	On-Mom	Anti-Vandal Illuminated	Button Flush Round		24 V	IP40	Panel Mount Front	85 °C	-25 °C	Silver	10 A	250 V

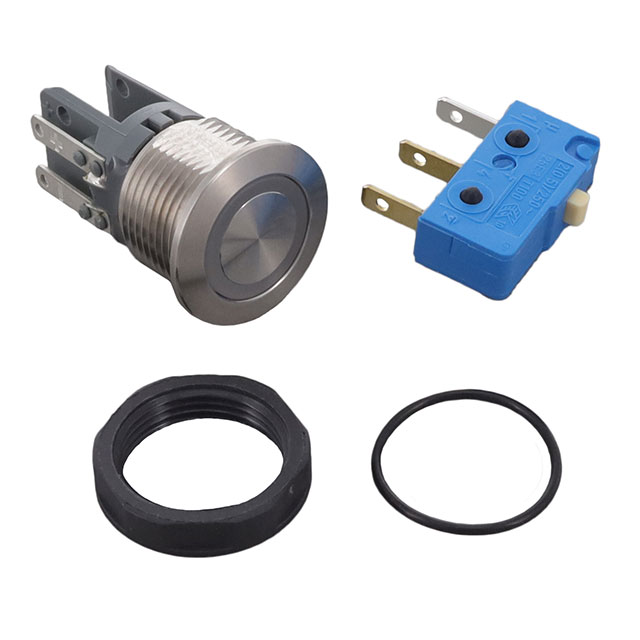

SCHURTER Inc. 3-102-624	1500000 Cycles	200000 Cycles	30 V	No Marking	Quick Connect - 0.110" (2.8mm)	16.1 mm	SPDT	Blue LED	On-Mom	Anti-Vandal Illuminated	Button Flush Round		24 V	IP40	Panel Mount Front	85 °C	-25 °C	Silver	100 mA
