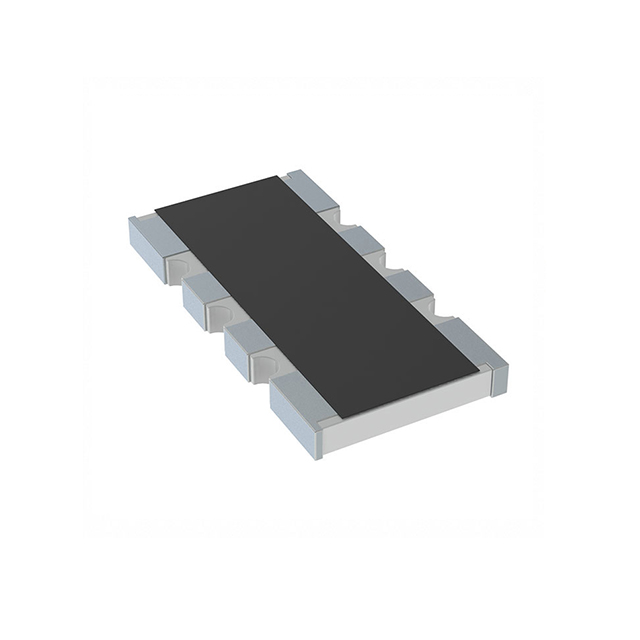

CAY16 Series
Manufacturer: Bourns Inc.
Beta
⌘K

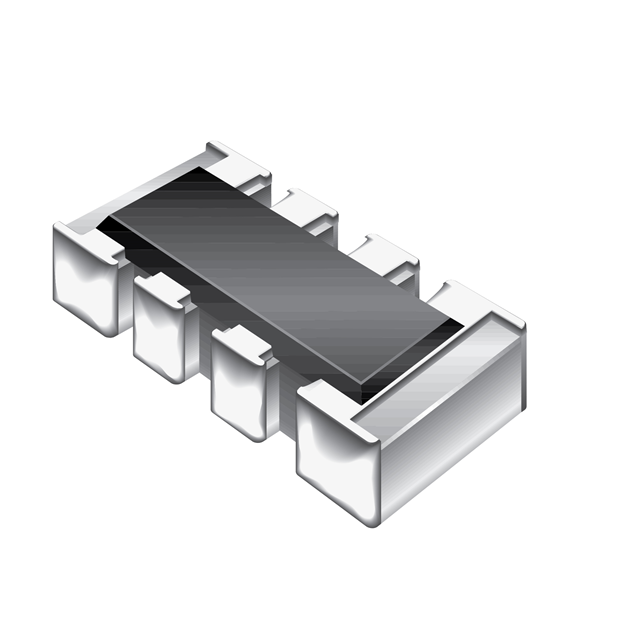

RES ARRAY 4 RES 430 OHM 1206
| Part | Supplier Device Package | Resistance (Ohms) [custom] | Temperature Coefficient | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Package / Case | Tolerance | Circuit Type | Number of Pins | Power Per Element | Mounting Type | Number of Resistors | Operating Temperature [Min] | Operating Temperature [Max] | Resistance (Ohms) | Grade | Qualification | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 1206 | 430 Ohms | 200 ppm/°C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.6 mm | 0.024 in | 1206 (3216 Metric) Convex Long Side Terminals | 5 % | Isolated | 8 | 62.5 mW | Surface Mount | 4 | -55 C | 125 °C | ||||
Bourns Inc. | 1206 | 200 ppm/°C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.6 mm | 0.024 in | 1206 (3216 Metric) Convex Long Side Terminals | 5 % | Isolated | 8 | 62.5 mW | Surface Mount | 4 | -55 C | 125 °C | 20 Ohms | ||||
Bourns Inc. | 1206 | 200 ppm/°C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.6 mm | 0.024 in | 1206 (3216 Metric) Convex Long Side Terminals | 1 % | Isolated | 8 | 62.5 mW | Surface Mount | 4 | -55 C | 125 °C | 24 Ohms | ||||
 Bourns Inc. | 1206 | 10 Ohms | 200 ppm/°C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.6 mm | 0.024 in | 1206 (3216 Metric) Convex Long Side Terminals | 1 % | Isolated | 8 | 63 mW | Surface Mount | 4 | -55 C | 125 °C | Automotive | AEC-Q200 | ||
Bourns Inc. | 1206 | 226 Ohms | 200 ppm/°C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.6 mm | 0.024 in | 1206 (3216 Metric) Convex Long Side Terminals | 1 % | Isolated | 8 | 62.5 mW | Surface Mount | 4 | -55 C | 125 °C | ||||
Bourns Inc. | 1206 | 200 ppm/°C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.6 mm | 0.024 in | 1206 (3216 Metric) Convex Long Side Terminals | 1 % | Isolated | 8 | 62.5 mW | Surface Mount | 4 | -55 C | 125 °C | 12 kOhms | ||||
 Bourns Inc. | 1206 | 100 Ohms | 200 ppm/°C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.6 mm | 0.024 in | 1206 (3216 Metric) Convex Long Side Terminals | 1 % | Isolated | 8 | 63 mW | Surface Mount | 4 | -55 C | 125 °C | Automotive | AEC-Q200 | ||
Bourns Inc. | 1206 | 1.5 k | 200 ppm/°C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.6 mm | 0.024 in | 1206 (3216 Metric) Convex Long Side Terminals | 5 % | Isolated | 8 | 63 mW | Surface Mount | 4 | -55 C | 125 °C | Automotive | AEC-Q200 | ||
 Bourns Inc. | 1206 | 27 kOhms | 200 ppm/°C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.6 mm | 0.024 in | 1206 (3216 Metric) Convex Long Side Terminals | 5 % | Isolated | 8 | 62.5 mW | Surface Mount | 4 | -55 C | 125 °C | ||||
Bourns Inc. | 1206 | 200 ppm/°C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.6 mm | 0.024 in | 1206 (3216 Metric) Convex Long Side Terminals | 5 % | Isolated | 8 | 63 mW | Surface Mount | 4 | -55 C | 125 °C | Automotive | AEC-Q200 | 1k |
