A8A-216 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

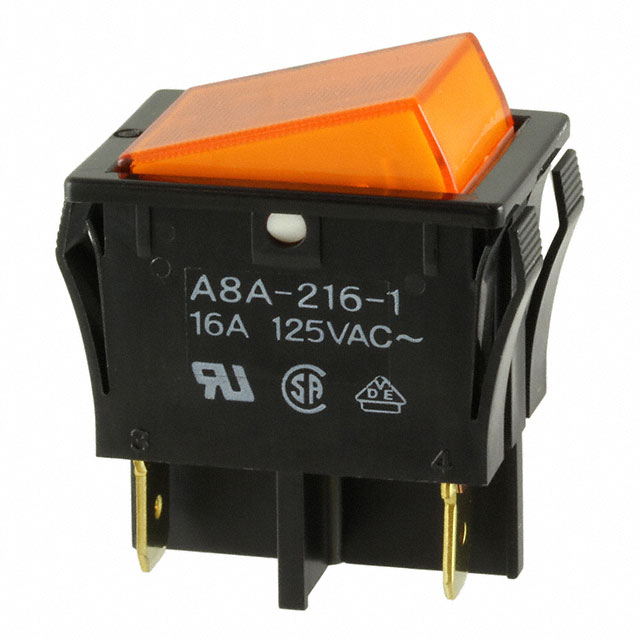

SWITCH ROCKER DPST 16A 125V
| Part | Electrical Life | Mechanical Life | Mounting Type | Illumination Type, Color | Ingress Protection | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Color - Actuator/Cap | Actuator Marking | Illumination Voltage (Nominal) | Voltage Rating - AC | Termination Style | Approval Agency | Current Rating (Amps) | Actuator Type | Switch Function | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 20000 Steps | 40000 Cycles | Panel Mount Snap-In | Neon Orange | IP00 | DPST | 50 °C | -25 °C | Orange | No Marking | 110 VAC | 125 V | Quick Connect - 0.250" (6.3mm) | CSA EN UL | 16 A | Flat - Illuminated | On-Off | 30 mm | 22 mm |
 Omron Electronics Inc-EMC Div | 20000 Steps | 40000 Cycles | Panel Mount Snap-In | Neon Orange | IP00 | DPST | 50 °C | -25 °C | Orange | No Marking | 110 VAC | 125 V | Quick Connect - 0.250" (6.3mm) | CSA EN UL | 16 A | Flat - Illuminated | On-Off | 30 mm | 22 mm |
