GTS447H Series
Manufacturer: CW Industries
Beta
⌘K

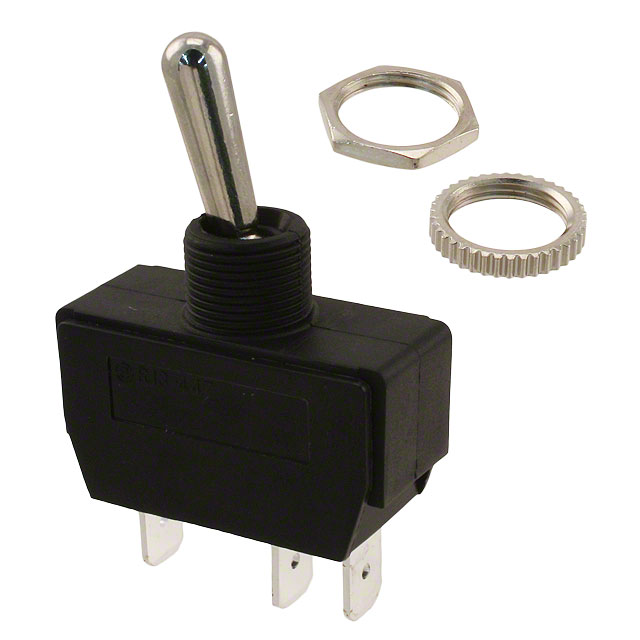

SWITCH TOGGLE SPDT 16A 277V
| Part | Voltage Rating - AC | Electrical Life | Ingress Protection | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Actuator Length [x] | Illumination | Termination Style | Current Rating (Amps) | Switch Function | Panel Cutout Dimensions [diameter] | Mounting Type | Bushing Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 250 V 277 V | 10000 Cycles | IP56 - Dust Protected Water Resistant | Standard Round | 0 °C | 85 °C | SPDT | 17.5 mm | Non-Illuminated | Quick Connect - 0.250" (6.3mm) | 16 A | On-Off-Mom | 12.2 mm Dia | Panel Mount | 15/32-32 |
