CONMCX Series
RF Connectors / Coaxial Connectors SEE 9631-7179-10
Manufacturer: TE Connectivity AMP Connectors
Catalog
RF Connectors / Coaxial Connectors SEE 9631-7179-10
Beta
⌘K
RF Connectors / Coaxial Connectors SEE 9631-7179-10
RF Connectors / Coaxial Connectors SEE 9631-7179-10
RF Connectors / Coaxial Connectors SEE 9631-7179-10
| Part | Mating Cycles | Insertion Loss | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Includes | Body Finish | Number of Ports | Shield Termination | Housing Color | Contact Termination | Impedance | Mounting Type | Frequency - Max [Max] | Center Contact Material | Mounting Feature | Connector Style | Connector Type | Fastening Type | Cable Group | Voltage Rating | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

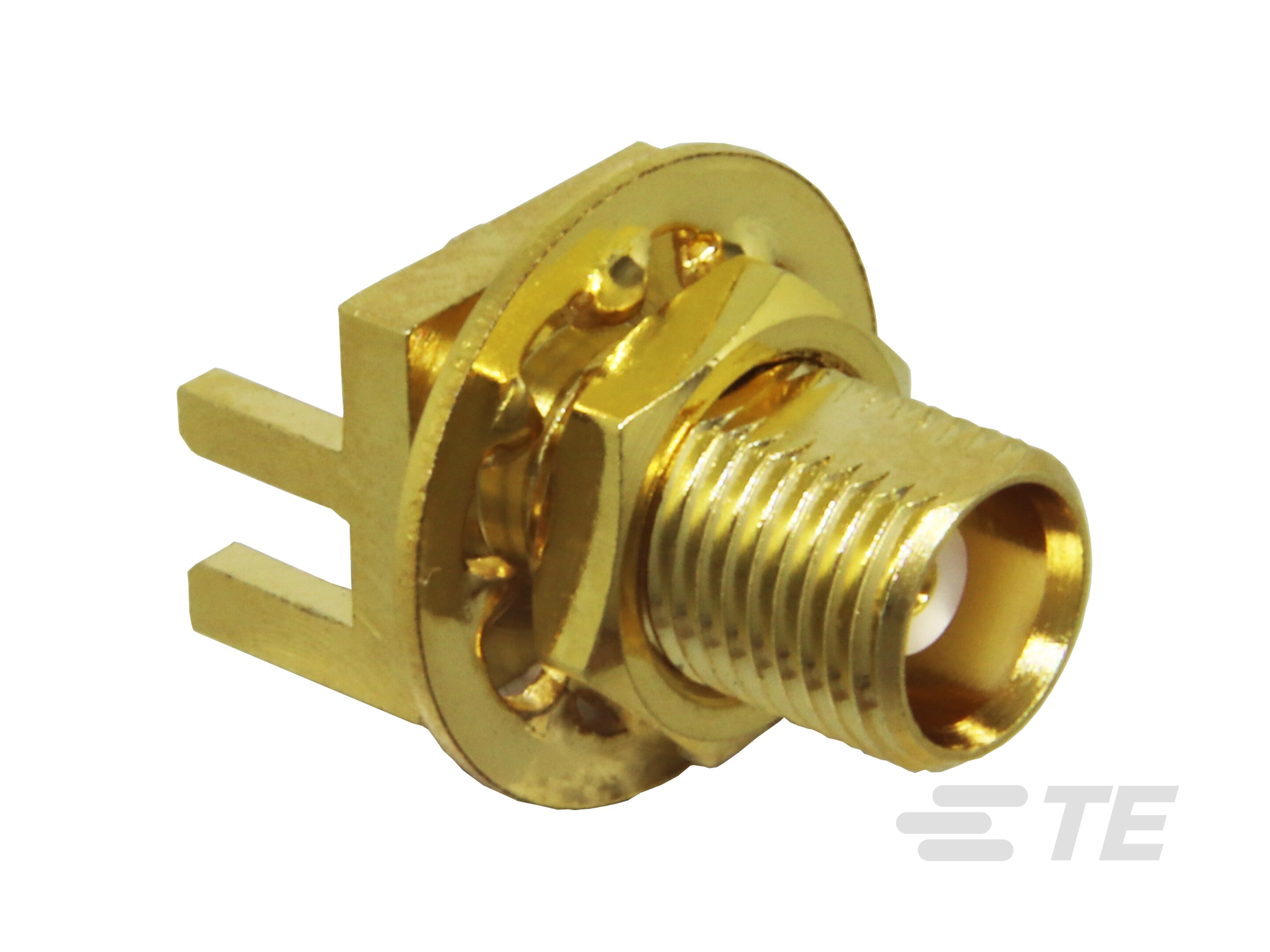

 TE Connectivity AMP Connectors | 500 | 0.1 dB | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Gold | 1 Connector 1 Lockwasher 1 Nut | Gold | 1 | Solder | Gold | Solder | 50 Ohms | Board Edge End Launch Panel Mount | 6000 MHz | Beryllium Copper | Bulkhead - Front Side Nut | MCX | Receptacle Female Socket | Snap-On | |||

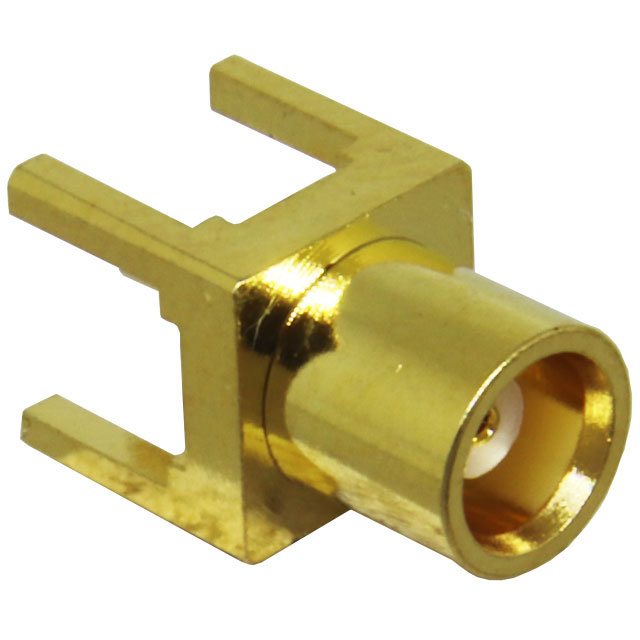

 TE Connectivity AMP Connectors | 500 | 0.1 dB | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Gold | Gold | 1 | Solder | Gold | Solder | 50 Ohms | Through Hole | 6000 MHz | Beryllium Copper | MCX | Receptacle Female Socket | Snap-On | |||||

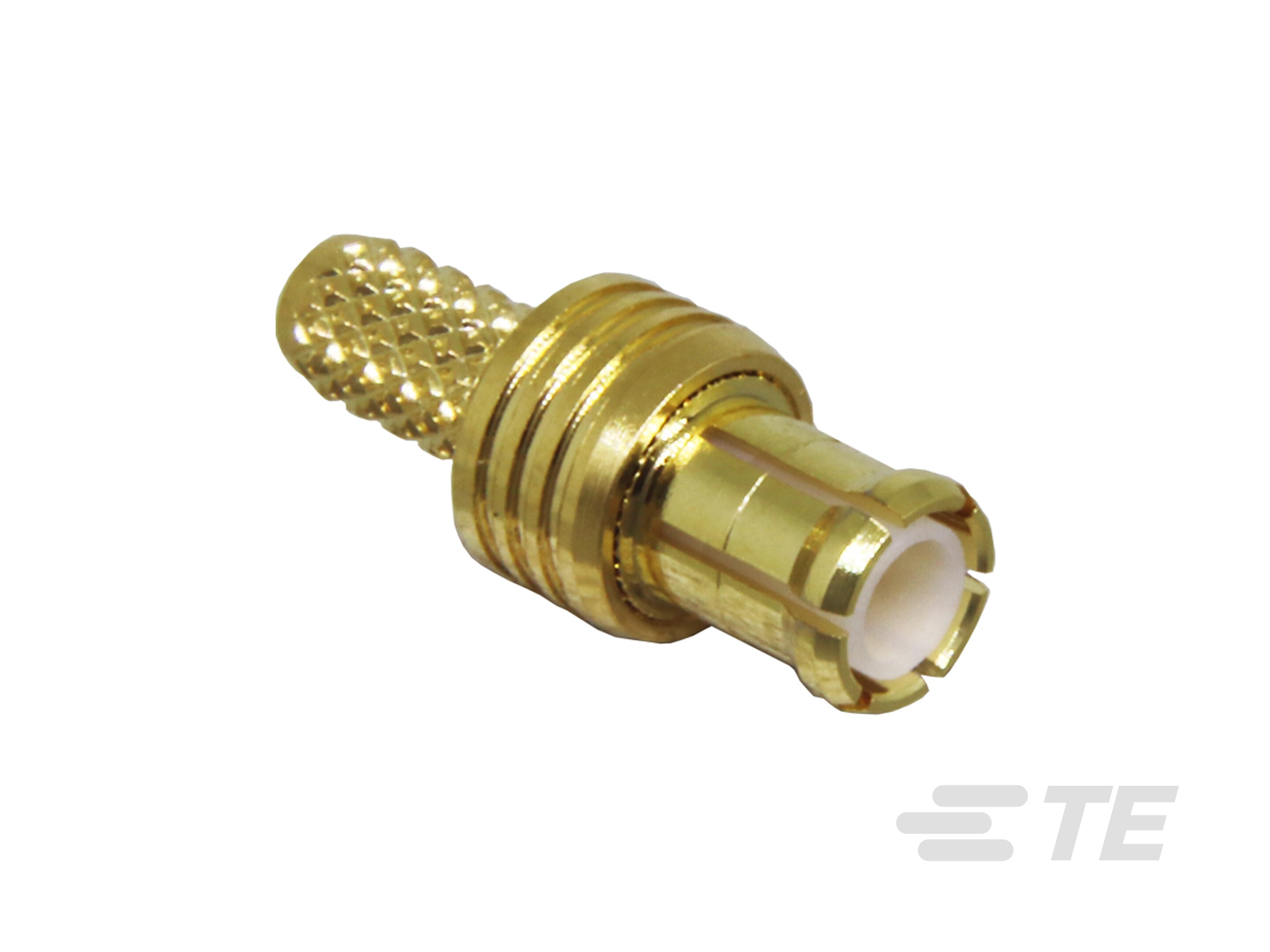

 TE Connectivity AMP Connectors | 500 | 0.1 dB | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Gold | Nickel | 1 | Crimp | Silver | Solder | 50 Ohms | Free Hanging (In-Line) | 6000 MHz | Brass | MCX | Plug Male Pin | Snap-On | RG-174 | ||||

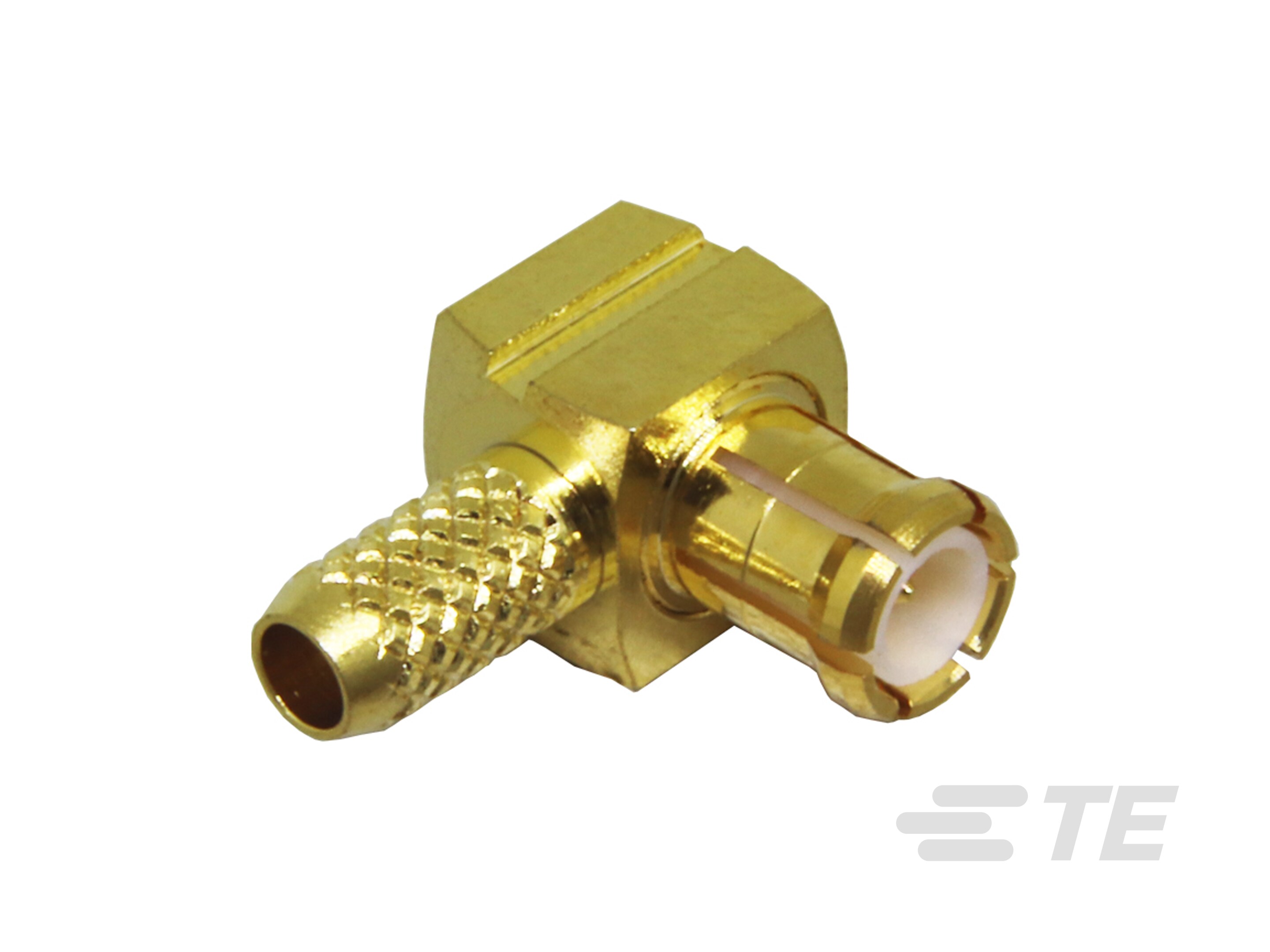

 TE Connectivity AMP Connectors | 500 | 0.2 dB | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Gold | 1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink 1 Insulator | Gold | 1 | Crimp | Gold | Solder | 50 Ohms | Free Hanging (In-Line) Right Angle | 6000 MHz | Brass | MCX | Plug Male Pin | Snap-On | RG-178 | 250 V | ||

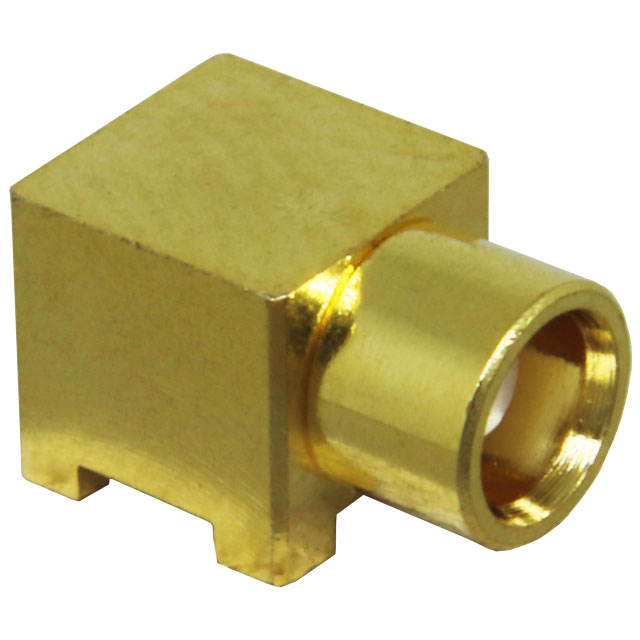

 TE Connectivity AMP Connectors | 500 | 0.2 dB | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Gold | Gold | 1 | Solder | Gold | Solder | 50 Ohms | Right Angle Surface Mount | 6000 MHz | Beryllium Copper | MCX | Receptacle Female Socket | Snap-On | |||||
 TE Connectivity AMP Connectors | 500 | 0.1 dB | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Gold | Gold | 1 | Solder | Gold | Solder | 50 Ohms | Board Edge End Launch | 6000 MHz | Beryllium Copper | MCX | Receptacle Female Socket | Snap-On | |||||

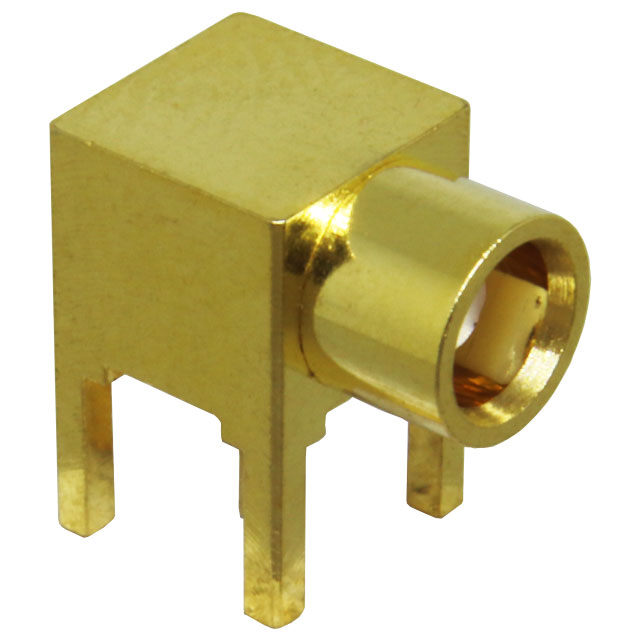

 TE Connectivity AMP Connectors | 500 | 0.2 dB | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Gold | Gold | 1 | Solder | Gold | Solder | 50 Ohms | Right Angle Through Hole | 6000 MHz | Beryllium Copper | MCX | Receptacle Female Socket | Snap-On | |||||

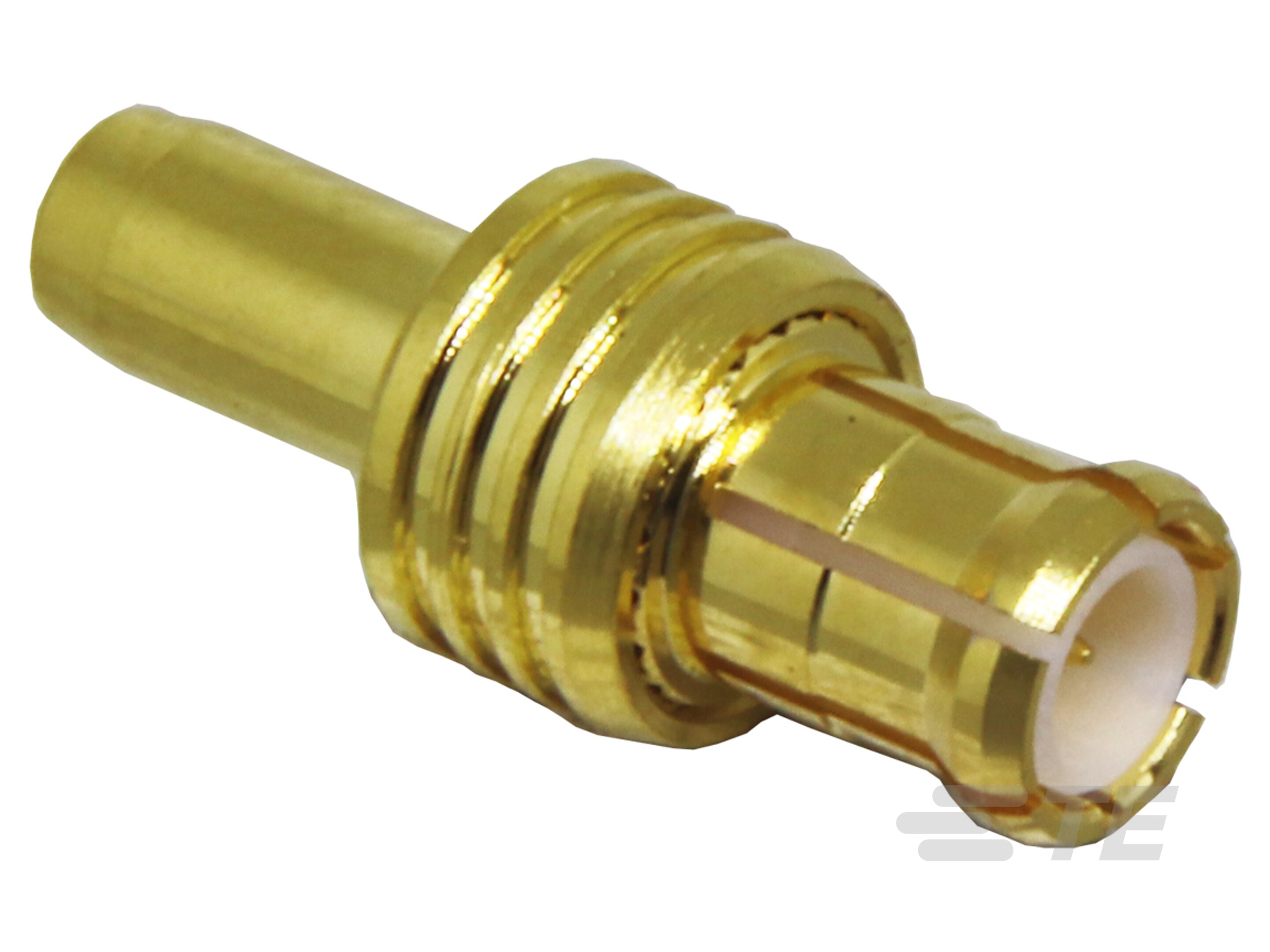

 TE Connectivity AMP Connectors | 500 | 0.1 dB | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Gold | 1 Connector 1 Contact 1 Heat Shrink 1 Spacer 1 Support | Gold | 1 | Crimp | Gold | Crimp Solder | 50 Ohms | Free Hanging (In-Line) | 6000 MHz | Brass | MCX | Plug Male Pin | Snap-On | RG-178 | 250 V | ||
 TE Connectivity AMP Connectors | 500 | 0.2 dB | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Gold | 1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink 1 Insulator | Gold | 1 | Crimp | Gold | Solder | 50 Ohms | Free Hanging (In-Line) Right Angle | 6000 MHz | Brass | MCX | Plug Male Pin | Snap-On | RG-174 | |||

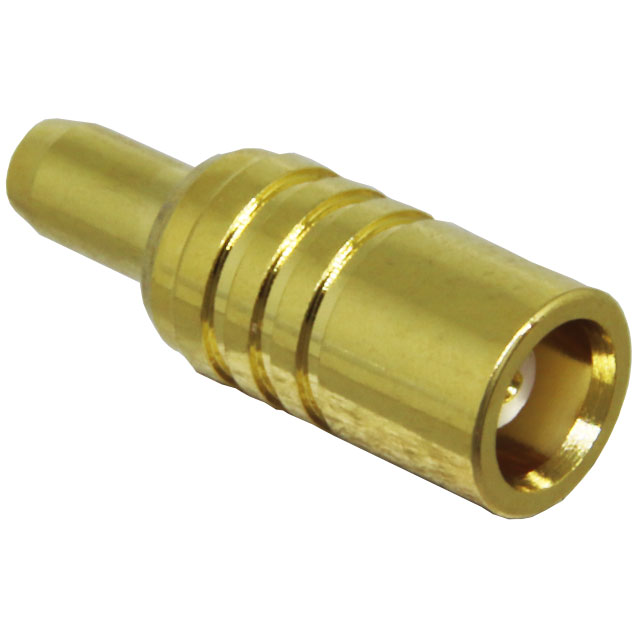

 TE Connectivity AMP Connectors | 500 | 0.1 dB | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | Gold | 1 Connector 1 Contact 1 Heat Shrink 1 Spacer 1 Support | Gold | 1 | Crimp | Gold | Solder | 50 Ohms | Free Hanging (In-Line) | 6000 MHz | Beryllium Copper | MCX | Receptacle Female Socket | Snap-On | RG-178 | 250 V | 196 |
