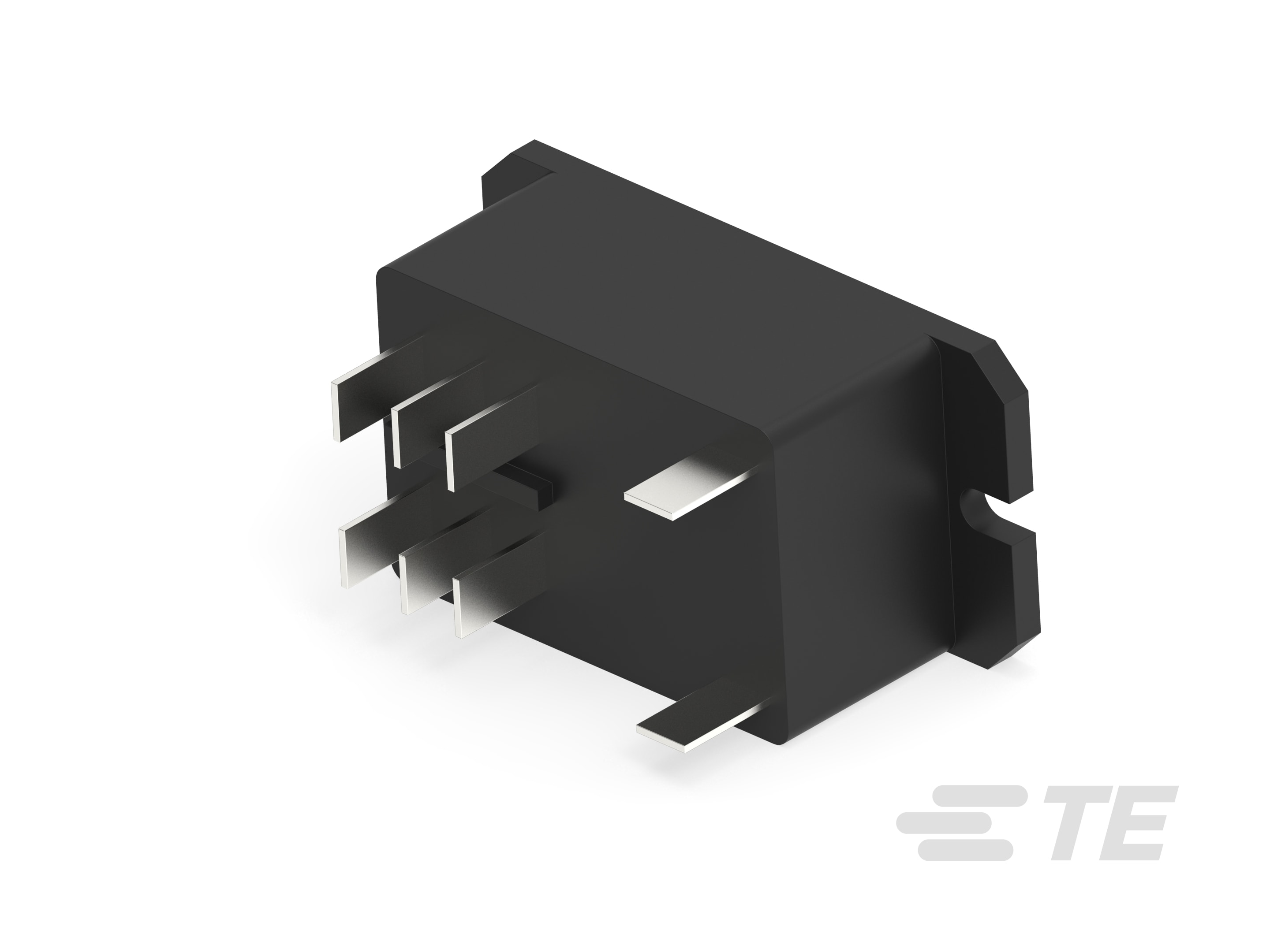

Potter & Brumfield T92 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE DPDT 30A 240V
| Part | Coil Resistance | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage [Max] | Must Operate Voltage | Contact Form | Contact Material | Must Release Voltage | Coil Voltage | Termination Style | Contact Rating (Current) | Coil Insulation | Operate Time | Release Time | Relay Type | Coil Current | Mounting Type | Coil Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.8 kOhms | CSA TUV UL UR VDE | 65 °C | -55 C | 600 VAC | 192 VAC | DPDT (2 Form C) | Silver Tin Oxide Indium Oxide (AgSnOInO) | 24 VAC | 240 VAC/DC | Quick Connect - 0.250" (6.3mm) | 30 A | Class F | 25 ms | 25 ms | General Purpose | 63.2 mA | Chassis Mount | Non Latching | |
 TE Connectivity AMP Connectors | CSA TUV UL UR VDE | 65 °C | -55 C | 600 VAC | 9.6 VAC/DC | DPDT (2 Form C) | Silver Cadmium Oxide (AgCdO) | 1.2 VAC | 12 VAC | Quick Connect - 0.250" (6.3mm) | 30 A | Class F | 15 ms | 15 ms | General Purpose | 333 mA | Chassis Mount | Non Latching | ||
 TE Connectivity AMP Connectors | 86 Ohms | CSA TUV UL UR VDE | 85 °C | -55 C | 600 VAC | 9 VDC | DPST-NO (2 Form A) | Silver Tin Oxide Indium Oxide (AgSnOInO) | 1.2 VDC | 12 VDC | Quick Connect - 0.250" (6.3mm) | 30 A | Class F | 25 ms | 25 ms | General Purpose | 139.5 mA | Chassis Mount | Non Latching | |
 TE Connectivity AMP Connectors | CSA TUV UL UR VDE | 65 °C | -55 C | 600 VAC | 192 VAC | DPDT (2 Form C) | Silver Cadmium Oxide (AgCdO) | 24 VAC | 240 VAC/DC | Quick Connect - 0.250" (6.3mm) | 30 A | Class F | 15 ms | 15 ms | General Purpose | 16.7 mA | Chassis Mount | Non Latching | ||
TE Connectivity AMP Connectors | 7.25 kOhms | CSA TUV UL UR VDE | 85 °C | -55 C | 600 VAC | 82.5 VDC | DPDT (2 Form C) | Silver Cadmium Oxide (AgCdO) | 11 VDC | 110 VDC | Quick Connect - 0.250" (6.3mm) | 30 A | Class F | 15 ms | 15 ms | General Purpose | 15.5 mA | Chassis Mount | Non Latching | |
 TE Connectivity AMP Connectors | 350 Ohms | CSA TUV UL UR VDE | 85 °C | -55 C | 600 VAC | 18 VDC | DPDT (2 Form C) | Silver Tin Oxide Indium Oxide (AgSnOInO) | 2.4 VDC | 24 VDC | Quick Connect - 0.250" (6.3mm) | 30 A | Class F | 25 ms | 25 ms | General Purpose | 68.6 mA | Chassis Mount | Non Latching | |
 TE Connectivity AMP Connectors | 3.8 kOhms | CSA TUV UL UR VDE | 65 °C | -55 C | 600 VAC | 192 VAC | DPST-NO (2 Form A) | Silver Cadmium Oxide (AgCdO) | 24 VAC | 240 VAC/DC | Quick Connect - 0.250" (6.3mm) | 30 A | Class F | 15 ms | 15 ms | General Purpose | 16.7 mA | Chassis Mount | Non Latching | |
TE Connectivity AMP Connectors | 350 Ohms | CSA TUV UL UR VDE | 85 °C | -55 C | 600 VAC | 18 VDC | DPST-NO (2 Form A) | Silver Cadmium Oxide (AgCdO) | 2.4 VDC | 24 VDC | Quick Connect | 30 A | Class F | 15 ms | 15 ms | General Purpose | 70.8 mA | Chassis Mount | Non Latching | 0.187 in 0.25 in |
 TE Connectivity AMP Connectors | 5.5 kOhms | CSA TUV UL UR VDE | 65 °C | -55 C | 600 VAC | 221.6 VAC | DPST-NO (2 Form A) | Silver Cadmium Oxide (AgCdO) | 27.7 VAC | 277 VAC | Quick Connect - 0.250" (6.3mm) | 30 A | Class F | 15 ms | 15 ms | General Purpose | 14.4 mA | Chassis Mount | Non Latching | |
TE Connectivity AMP Connectors | 950 Ohms | CSA TUV UL UR VDE | 65 °C | -55 C | 600 VAC | 96 VAC | DPDT (2 Form C) | Silver Cadmium Oxide (AgCdO) | 12 VAC | 120 VAC | Quick Connect | 30 A | Class F | 15 ms | 15 ms | General Purpose | 33.3 mA | Chassis Mount | Non Latching | 0.187 in 0.25 in |
