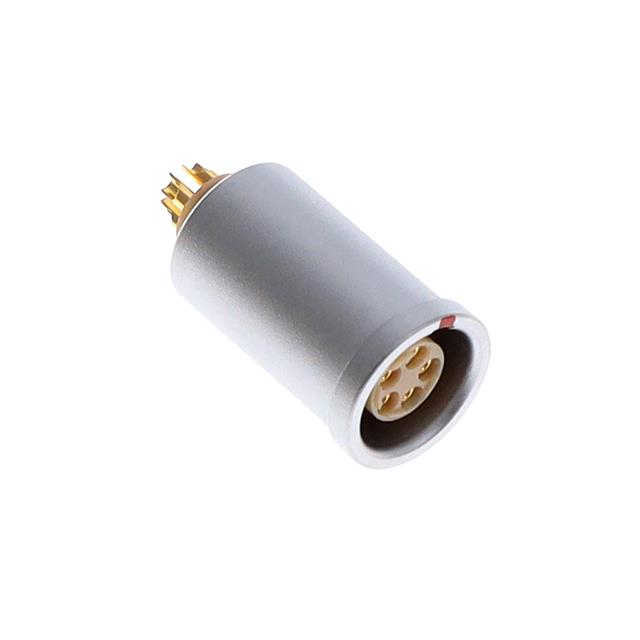

EJG.0B Series
Manufacturer: LEMO
Beta
⌘K
CONN RCPT FMALE 4P GOLD SLDR CUP
| Part | Mounting Type | Ingress Protection | Number of Positions | Shielding | Color | Material Flammability Rating | Orientation [custom] | Insert Material | Contact Material | Current Rating (Amps) | Shell Finish | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert | Connector Type | Primary Material | Contact Finish - Mating | Shell Material | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Press Fit | IP50 - Dust Protected | 4 | Shielded | Silver | UL94 V-0 | G | Polyetheretherketone (PEEK) | Bronze | 7 A | Chrome | 1.5 Ám | 59 Áin | Push-Pull | -55 C | 250 °C | 304 | Receptacle Female Sockets | Metal | Gold | Brass | |
 LEMO | Press Fit | IP50 - Dust Protected | 5 | Shielded | Silver | UL94 V-0 | G | Polyetheretherketone (PEEK) | Bronze | 6.5 A | Chrome | 1.5 Ám | 59 Áin | Push-Pull | -55 C | 250 °C | 305 | Receptacle Female Sockets | Metal | Gold | Brass | |
LEMO | Press Fit | IP50 - Dust Protected | 4 | Shielded | Silver | UL94 V-0 | G | Polyetheretherketone (PEEK) | Bronze | 7 A | Chrome | 1.5 Ám | 59 Áin | Push-Pull | -55 C | 250 °C | 304 | Receptacle Female Sockets | Metal | Gold | Brass | Crimp |
