CDM-6-3018 Series
Manufacturer: Luminus Devices Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

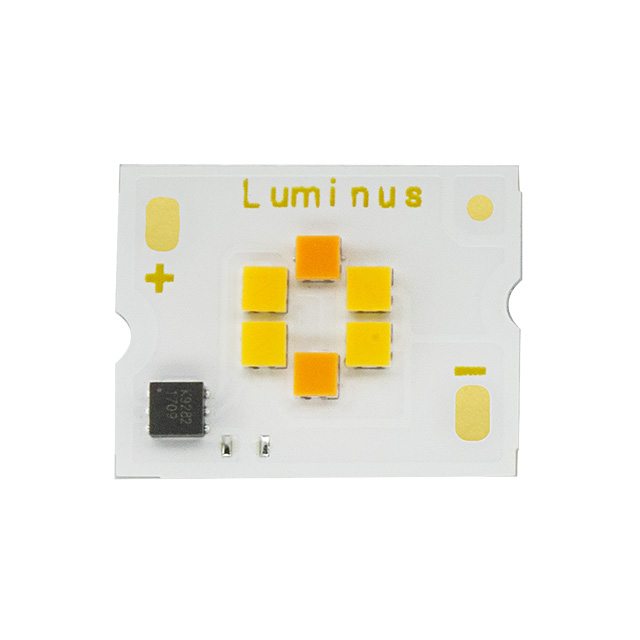

LED MOD CDM WARM WHT RECT 3000K
| Part | Lens Type | Configuration | Light Emitting Surface (LES) Diameter | CRI (Color Rendering Index) | Type | Current - Test | Features | Current - Max | Voltage - Forward (Vf) (Typ) | Lumens/Watt | CCT (K) Maximum | CCT (K) Minimum | Height | Temperature - Test | Luminous Flux (Typical) | Color | Viewing Angle | Size / Dimension Length | Size / Dimension Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Luminus Devices Inc. | Flat | Rectangle | 6.8 mm | 90 | LED Module | 300 mA | Dimming Warm | 440 mA | 17.8 V | 92 lm/W | 3000 K | 1800 K | 1.58 mm | 85 °C | 490 lm | Warm White | 130 ° | 15 mm | 12 mm |
