060-P459 Series

Catalog

HAMMER UNION PRESSURE SENSORS

Part	Accuracy	Port Size	Port Size	Port Size	Operating Pressure	Operating Pressure	Pressure Type	Applications	Features	Output Type	Port Style	Output [Min]	Output [Max]	Maximum Pressure	Maximum Pressure	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Maximum Pressure [Max]	Maximum Pressure [Max]

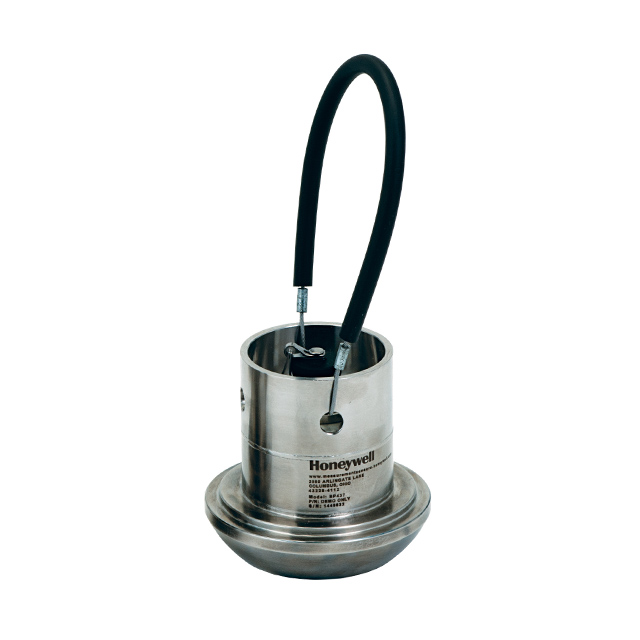

Honeywell Sensing and Productivity Solutions 060-P459-04	0.2 %	Male - Tube	2 in	51 mm	15000 PSI	103421.36 kPa	Vented Gauge	Industrial Automation	Temperature Compensated	Analog Current	Weco® 1502 Hammer Union	4 mA	20 mA	22500 PSI	155132.04 kPa	9 V	28 V	125 °C	-40 C	Connector
Honeywell Sensing and Productivity Solutions 060-P459-02	0.2 %	Male - Tube	2 in	51 mm	6000 PSI	41368.54 kPa	Vented Gauge	Industrial Automation	Temperature Compensated	Analog Current	Weco® 1502 Hammer Union	4 mA	20 mA			9 V	28 V	125 °C	-40 C	Connector	62052.82 kPa	9000 PSI

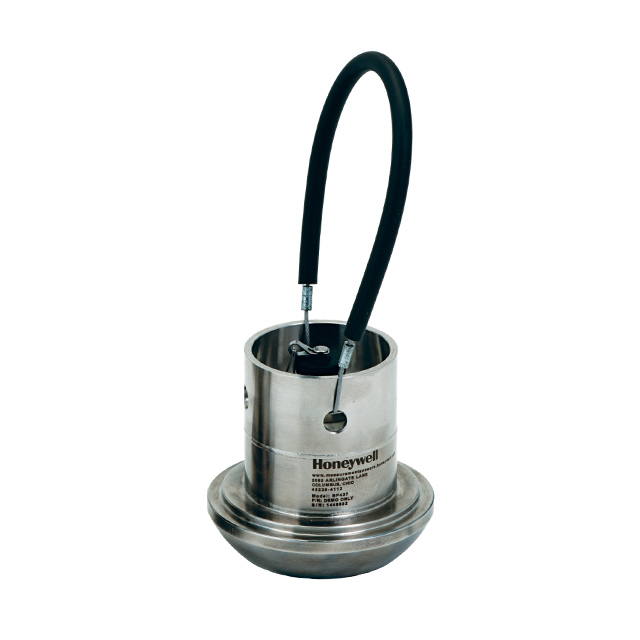

Honeywell Sensing and Productivity Solutions 060-P459-01	0.2 %	Male - Tube	2 in	51 mm	5000 PSI	34473.79 kPa	Vented Gauge	Industrial Automation	Temperature Compensated	Analog Current	Weco® 1502 Hammer Union	4 mA	20 mA			9 V	28 V	125 °C	-40 C	Connector	51710.68 kPa	7500 PSI
Honeywell Sensing and Productivity Solutions 060-P459-03	0.2 %	Male - Tube	2 in	51 mm	10000 PSI	68947.57 kPa	Vented Gauge	Industrial Automation	Temperature Compensated	Analog Current	Weco® 1502 Hammer Union	4 mA	20 mA	15000 PSI	103421.36 kPa	9 V	28 V	125 °C	-40 C	Connector
