MNU10 Series

Catalog

CONN QC TAB 10-12AWG 0.250 50PC

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Contact Material	Features	Tab Thickness	Tab Thickness	Color	Terminal Type	Insulation	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Length - Overall [x]	Length - Overall [x]	Termination	Tab Width [x]	Tab Width [x]	Gender	Contact Finish
3M Electronic Specialty MNU10-250DMIX-BOTTLE	6.35 mm	0.25 in	Copper ETP	Butted Seam	0.81 mm	0.032 in	Yellow	Standard	Fully Insulated	Free Hanging (In-Line)	10 AWG	12 AWG	26.67 mm	1.05 in	Crimp	6.35 mm	0.25 in	Male	Tin

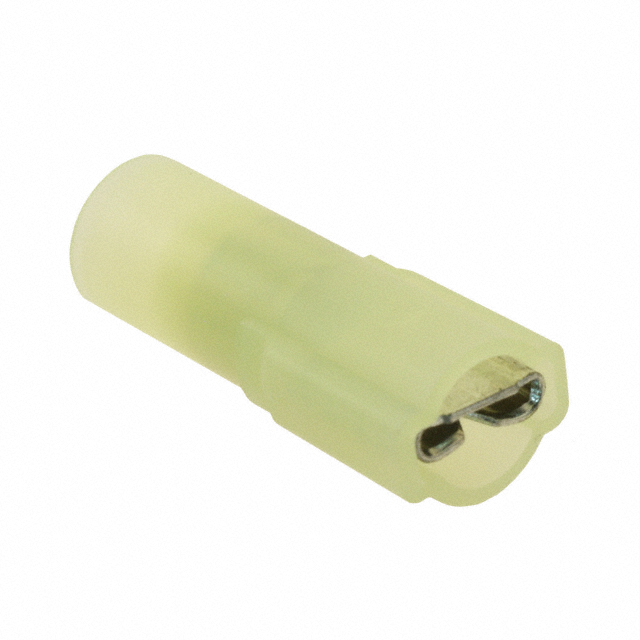

3M Electronic Specialty MNU10-250DFIX-BOTTLE				Butted Seam				Standard	Fully Insulated	Free Hanging (In-Line)	10 AWG	12 AWG			Crimp	6.35 mm	0.25 in	Female
