282909 Series

Catalog

CONN EUROSTYLE BLOCK M 2 POS 2.54MM SOLDER ST THRU-HOLE 24A/CONTACT

Part	Wire Termination	Wire Gauge [Max]	Wire Gauge [Min]	Screw Material - Plating	Color	Positions Per Level	Mounting Type	Current	Voltage	Screw Thread	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Torque - Screw	Torque - Screw	Features	Contact Material - Plating [custom]	Clamp Material - Plating	Mating Orientation	Pitch [x]	Pitch [x]

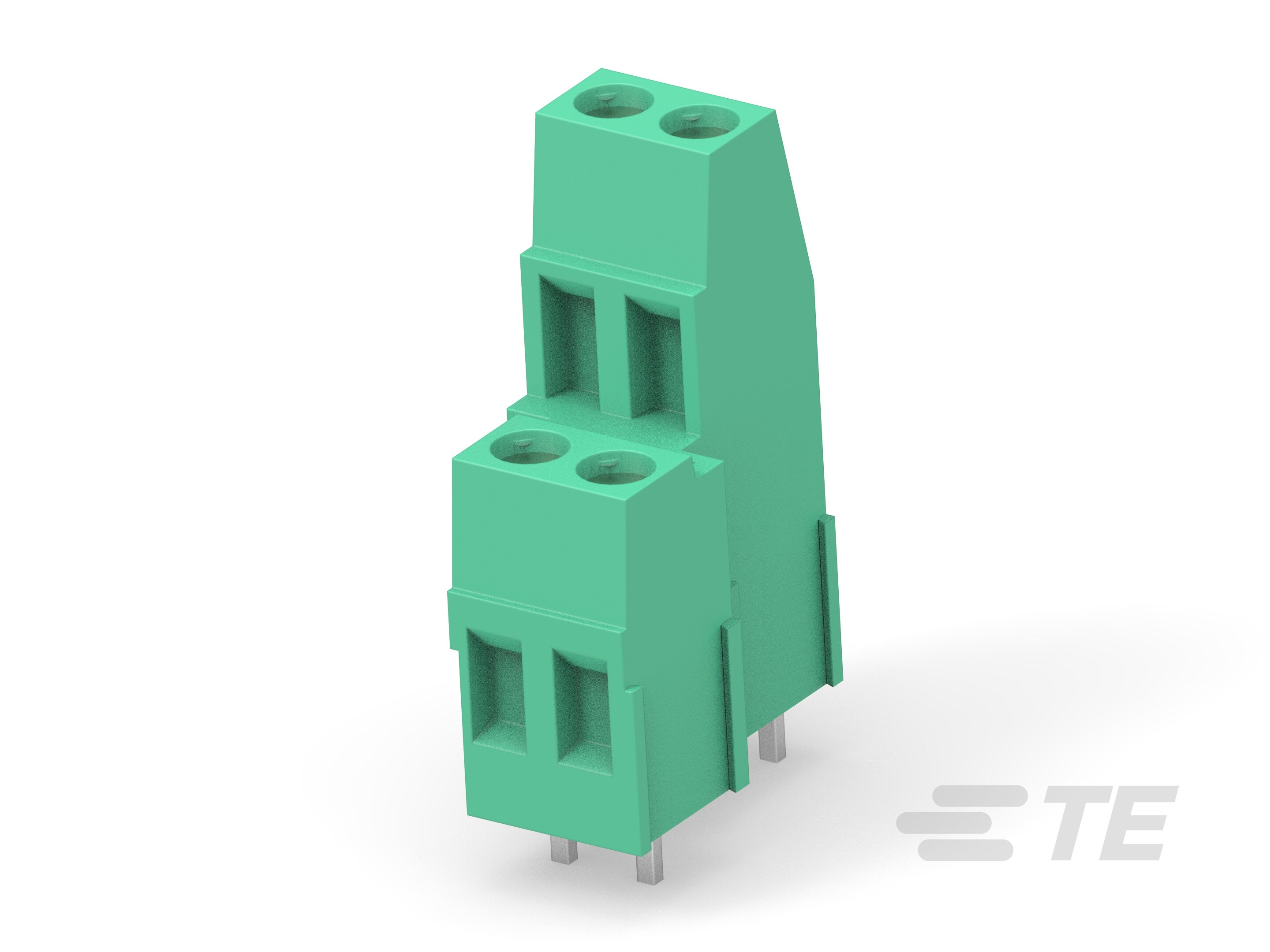

TE Connectivity Raychem Cable Protection 282909-2	Screw - Rising Cage Clamp	30 AWG	12 AWG	Brass - Nickel Plated	Green	2	Through Hole	24 A	300 V	M3	-40 °C	105 ░C	2	0.79 Nm	7 Lb-In	Interlocking (Side)	Brass - Tin Plated	Brass - Nickel Plated	Horizontal with Board	0.2 in	5.08 mm

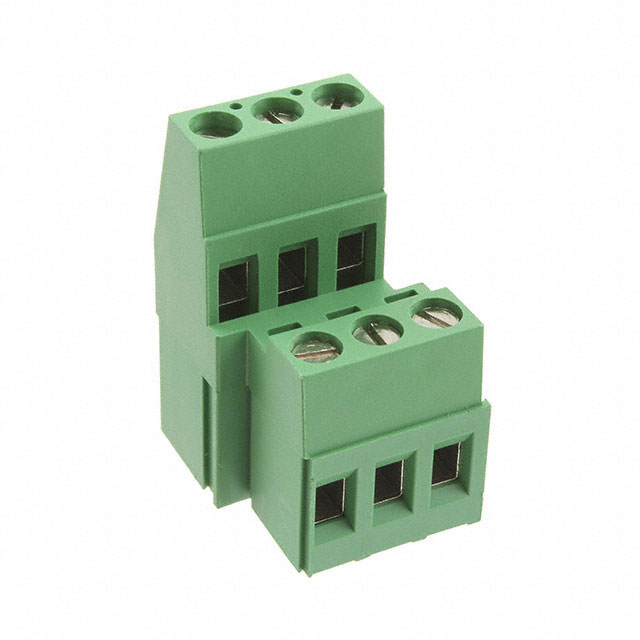

TE Connectivity Raychem Cable Protection 282909-3	Screw - Rising Cage Clamp	30 AWG	12 AWG	Brass - Nickel Plated	Green	3	Through Hole	24 A	300 V	M3	-40 °C	105 ░C	2	0.79 Nm	7 Lb-In	Interlocking (Side)	Brass - Tin Plated	Brass - Nickel Plated	Horizontal with Board	0.2 in	5.08 mm
TE Connectivity Raychem Cable Protection 282909-4	Screw - Rising Cage Clamp	30 AWG	12 AWG	Brass - Nickel Plated	Green		Through Hole	24 A	300 V	M3	-40 °C	105 ░C	2	0.79 Nm	7 Lb-In	Interlocking (Side) Positions Stamped	Brass - Tin Plated	Brass - Nickel Plated	Horizontal with Board	0.2 in	5.08 mm
