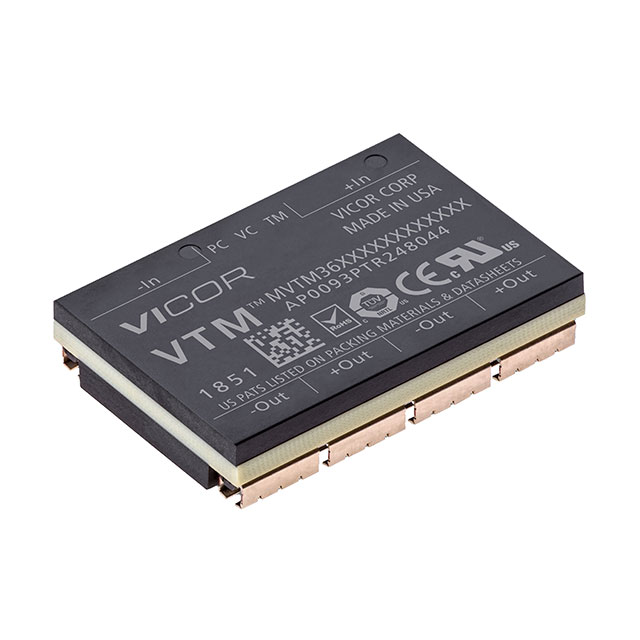

MVTM36 Series

Catalog

DC DC CONVERTER 12V 150W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Voltage - Isolation	Voltage - Output 1	Current - Output (Max) [Max]	Number of Outputs	Efficiency	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Features	Voltage - Input (Min) [Min]	Package / Case	Type	Power (Watts)	Mounting Type	Voltage - Output 1 [custom]
Vicor Corporation MVTM36BT120M010A00	-55 C	125 °C	50 V	2250 VDC	12 V	10 A	1	95 %	ITE (Commercial)	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	OCP OTP OVP SCP	26 V	Module	Voltage Transformation Module	150 W	Through Hole
Vicor Corporation MVTM36BF030M040B00	-55 C	125 °C	50 V	2250 VDC	3 V	40 A	1	94 %	ITE (Commercial)	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	OCP OTP OVP SCP	26 V	Module	Voltage Transformation Module	150 W	Surface Mount
Vicor Corporation MVTM36BT060M020A00	-55 C	125 °C	50 V	2250 VDC		20 A	1	95.5 %	ITE (Commercial)	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	OCP OTP OVP SCP	26 V	Module	Voltage Transformation Module	150 W	Through Hole	6 V
Vicor Corporation MVTM36BT045M027A00	-55 C	125 °C	50 V	2250 VDC	4.5 V		1	94.7 %	ITE (Commercial)	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	OCP OTP OVP SCP	26 V	Module	Voltage Transformation Module	150 W	Through Hole
