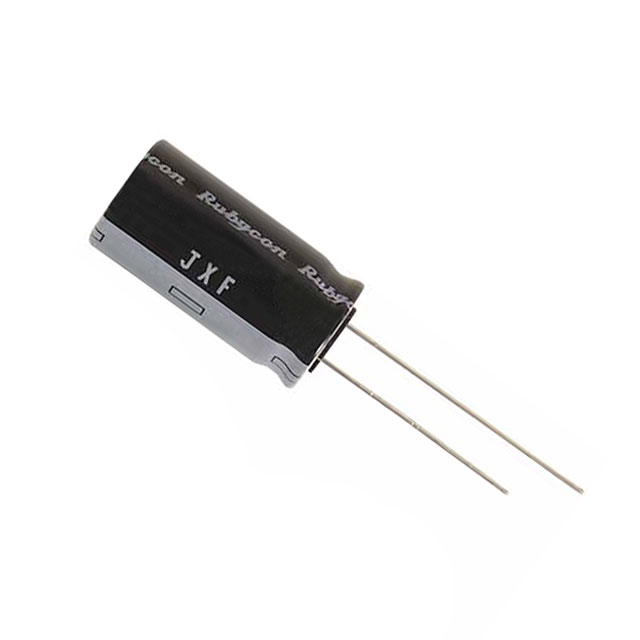

JXF Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED LOW IMPEDANCE ELECTROLYTIC CAPACITORS

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Lead Spacing	Lead Spacing	Package / Case	Polarization	Impedance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Tolerance	Capacitance	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Ripple Current @ Low Frequency
Rubycon 35JXF1200MEFC12.5X25	-55 C	105 ░C	35 V	0.197 "	5 mm	Can Radial	Polar	30 mOhms	1.063 in	27 mm	Through Hole	20 %	1.2 mF	General Purpose	0.492 in	12.5 mm	8000 Hrs
Rubycon 35JXF820MEFC10X25	-55 C	105 ░C	35 V	0.197 "	5 mm	Can Radial	Polar	37 mOhms	1.063 in	27 mm	Through Hole	20 %	820 µF	General Purpose	0.394 in	10 mm	6000 Hrs	1.026 A
Rubycon 25JXF1200MEFC10X25	-55 C	105 ░C	25 VDC	0.197 "	5 mm	Can Radial	Polar	37 mOhms	1.063 in	27 mm	Through Hole	20 %	1.2 mF	General Purpose	0.394 in	10 mm	6000 Hrs	1.026 A
Rubycon 35JXF3300MEFC18X25	-55 C	105 ░C	35 V	0.295 in	7.5 mm	Can Radial	Polar	20 mOhms	1.063 in	27 mm	Through Hole	20 %	3.3 mF	General Purpose	0.709 in	18 mm	8000 Hrs
