78 Series

Catalog

DIP SWITCHES / SIP SWITCHES DIP SWITCH SPST RAISED SLIDE 8 POS

Part	Termination Style	Height Above Board [z]	Height Above Board [z]	Number of Positions	Mounting Type	Actuator Level	Voltage Rating	Pitch	Pitch	Contact Material	Circuit	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Mechanical Life	Electrical Life	Length	Length	Body Material	Height Above Board	Height Above Board
Grayhill Inc. 78B08T	PC Pin	0.315 in	8 mm	8	Through Hole	Raised	30 VDC	2.54 mm	0.1 "	Copper Alloy	SPST	Slide (Standard)	85 °C	-40 C	Gold
Grayhill Inc. 78B02T	PC Pin	0.315 in	8 mm	2	Through Hole	Raised	30 VDC	2.54 mm	0.1 "	Copper Alloy	SPST	Slide (Standard)	85 °C	-40 C	Gold	2000 Cycles	2000 Steps	0.28 in	7.11 mm	Thermoplastic
Grayhill Inc. 78B10T	PC Pin	0.315 in	8 mm	10	Through Hole	Raised	30 VDC	2.54 mm	0.1 "	Copper Alloy	SPST	Slide (Standard)	85 °C	-40 C	Gold

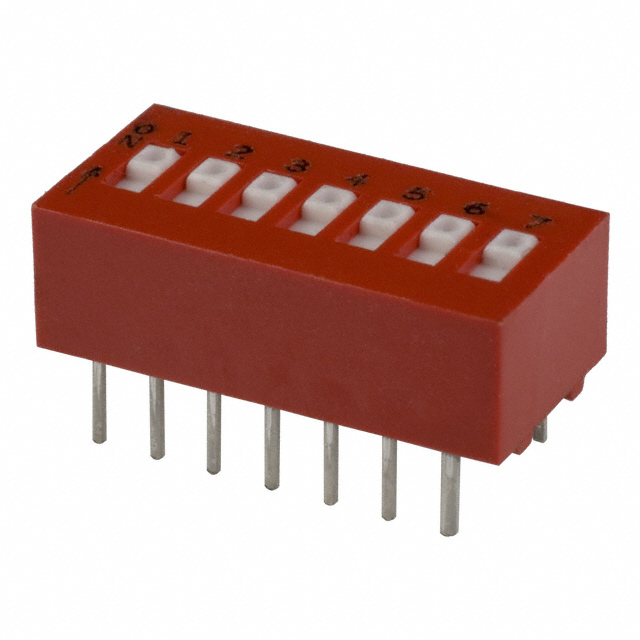

Grayhill Inc. 78RB07T	PC Pin			7	Through Hole	Flush Recessed	30 VDC	2.54 mm	0.1 "	Copper Alloy	SPST	Slide (Standard)	85 °C	-40 C	Gold	2000 Cycles	2000 Steps			Thermoplastic	6.73 mm	0.265 in
