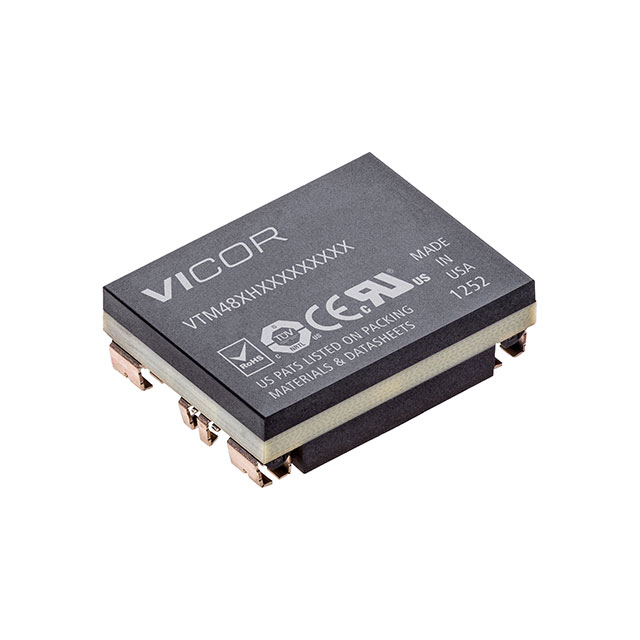

VTM48 Series

Catalog

DC DC CONVERTER 4V 200W

Part	Power (Watts)	Package / Case	Current - Output (Max) [Max]	Applications	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Mounting Type	Voltage - Input (Min) [Min]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Voltage - Output 1	Number of Outputs	Efficiency	Voltage - Isolation	Voltage - Output 1 [custom]
Vicor Corporation VTM48ET040T050B0R	200 Watts	Module	50 A	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	Through Hole	26 V	Voltage Transformation Module	125 °C	-40 C	55 V	4 V	1	94 %	2250 VDC
Vicor Corporation VTM48ET160M015A00	240 Watts	Module	15 A	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	Through Hole	26 V	Voltage Transformation Module	125 °C	-55 C	55 V	16 V	1	95.3 %	2250 VDC
Vicor Corporation VTM48EF040T050B0R	200 Watts	Module	50 A	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	Surface Mount	26 V	Voltage Transformation Module	125 °C	-40 C	55 V	4 V	1	94 %	2250 VDC
Vicor Corporation VTM48EF120T025B00	300 W	Module	25 A	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	Surface Mount	26 V	Voltage Transformation Module	125 °C	-40 C	55 V	12 V	1	96 %	2250 VDC
Vicor Corporation VTM48ET020T080B00	160 W	Module	80 A	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	Through Hole	26 V	Voltage Transformation Module	125 °C	-40 C	55 V	2 V	1	92.4 %	2250 VDC
Vicor Corporation VTM48EH040T025B00	83 W	Module	25 A	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP	0.65 "	6.7 mm	16.5 mm	22 mm	0.87 in	0.26 in	Surface Mount	26 V	Voltage Transformation Module	125 °C	-40 C	55 V	3.3 V	1	93 %	2250 VDC
Vicor Corporation VTM48ET060M040A00	240 Watts	Module	40 A	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	Through Hole	26 V	Voltage Transformation Module	125 °C	-55 C	55 V		1	94.7 %	2250 VDC	6 V
Vicor Corporation VTM48EF480T006A01
Vicor Corporation VTM48EF240M012A00	300 W	Module	12 A	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	Surface Mount	26 V	Voltage Transformation Module	125 °C	-55 C	55 V	24 V	1	95 %	2250 VDC
Vicor Corporation VTM48EH040M025B00	83 W	Module	25 A	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP	0.65 "	6.7 mm	16.5 mm	22 mm	0.87 in	0.26 in	Surface Mount	26 V	Voltage Transformation Module	125 °C	-55 C	55 V	3.3 V	1	93 %	2250 VDC
