T4771N22 Series
Manufacturer: INFINEON
Beta
⌘K

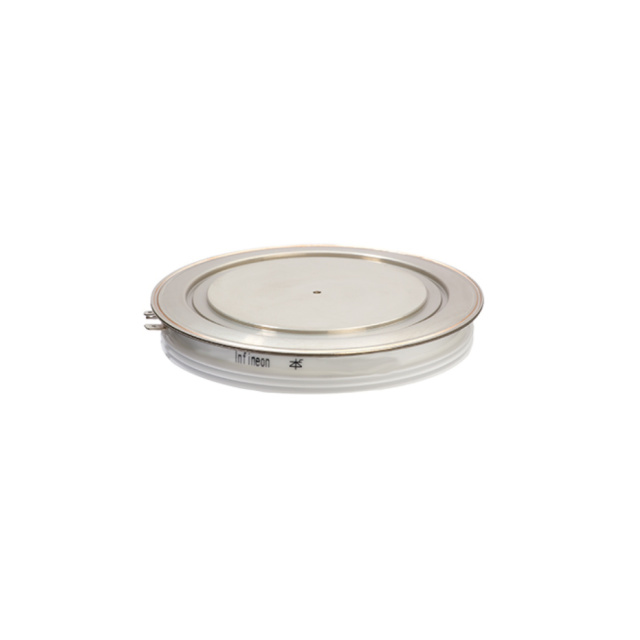

2200 V ELECTRICAL TRIGGERED PHASE CONTROL THYRISTOR DISC ASSEMBLED IN A HERMETIC SEALED CERAMIC HOUSING WITH A 150 MM DIA AND A HEIGHT OF 26 MM
| Part | Current - Hold (Ih) (Max) [Max] | Current - On State (It (AV)) (Max) | Voltage - Off State | Package / Case | Current - Gate Trigger (Igt) (Max) [Max] | Voltage - Gate Trigger (Vgt) (Max) [Max] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Current - Non Rep. Surge 50, 60Hz (Itsm) | Structure | Number of SCRs, Diodes | Current - On State (It (RMS)) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 350 mA | 6110 A | 2.9 kV | TO-200AF | 350 mA | 2.5 V | Chassis Mount | 125 °C | -40 C | 100000 A | Single | 1 SCR | 6820 A |
