DF600R12 Series
Manufacturer: INFINEON
Beta
⌘K

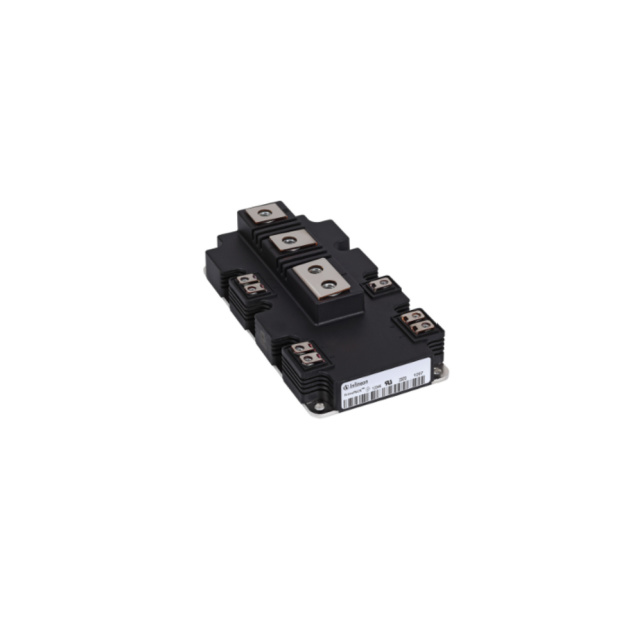

THE DF600R12IP4D IS A CHOPPER IGBT4 - P4 MODULE IN A PRIMEPACK™ 2 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 600 A.
| Part | Configuration | Package / Case | Input Capacitance (Cies) @ Vce | IGBT Type | Current - Collector Cutoff (Max) [Max] | Supplier Device Package | Mounting Type | Power - Max [Max] | Voltage - Collector Emitter Breakdown (Max) [Max] | Input | NTC Thermistor | Current - Collector (Ic) (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Vce(on) (Max) @ Vge, Ic [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | Single | Module | 37 nF | Trench Field Stop | 5 mA | Module | Chassis Mount | 3350 W | 1200 V | Standard | 600 A | -40 C | 150 °C | 2.05 V |
