MS3106A14 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CIRCULAR CONNECTOR, MIL-DTL-5015

Part	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Shielding	Insert Material	Color	Features	Shell Material	Shell Finish	Mounting Type	Backshell Material	Plating	Shell Size - Insert	Orientation	Termination	Applications	Connector Type	Qualification	Contact Finish - Mating	Number of Positions	Fastening Type	Primary Material	Current Rating	Voltage Rating (DC)	Voltage Rating (AC)	Ingress Protection	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Grade
Amphenol Aerospace Operations MS3106A14S-2SX-RES
Amphenol Aerospace Operations MS3106A14S-5P-RES
Amphenol Aerospace Operations MS3106A-14S-2PX
Amphenol Aerospace Operations MS3106A14S-5SX	125 °C	-55 °C	Copper Alloy	Unshielded	Neoprene	Olive Drab	Backshell Coupling Nut	Aluminum Alloy	Cadmium Olive Drab Chromate	Free Hanging (In-Line)	Aluminum Alloy	Olive Drab Chromate over Cadmium	14S-5	X	Solder Cup	Marine Military	Female Sockets Plug	MIL-DTL-5015	Silver	5	Threaded	Metal

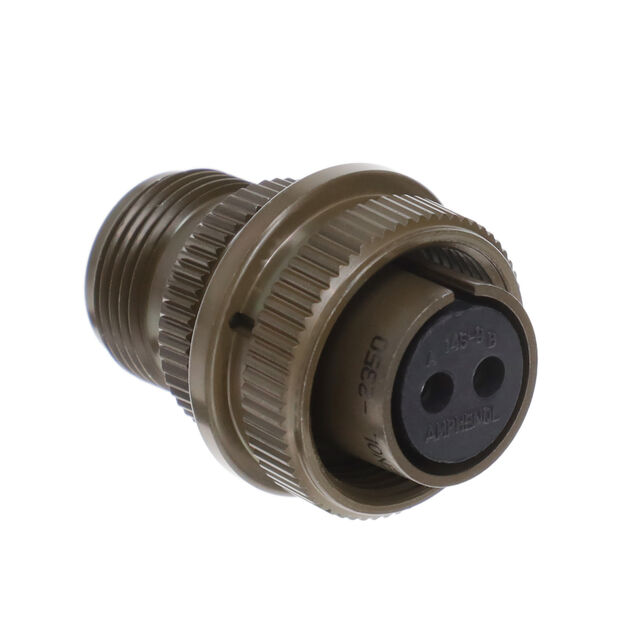

Amphenol Aerospace Operations MS3106A14S-9S	125 °C	-55 °C	Copper Alloy	Unshielded	Neoprene	Olive Drab	Backshell Coupling Nut	Aluminum Alloy	Cadmium Olive Drab Chromate	Free Hanging (In-Line)	Aluminum Alloy	Olive Drab Chromate over Cadmium	14S-9	N (Normal)	Solder Cup	Marine Military	Female Sockets Plug	MIL-DTL-5015	Silver	2	Threaded	Metal
Amphenol Aerospace Operations MS3106A14S-9PW

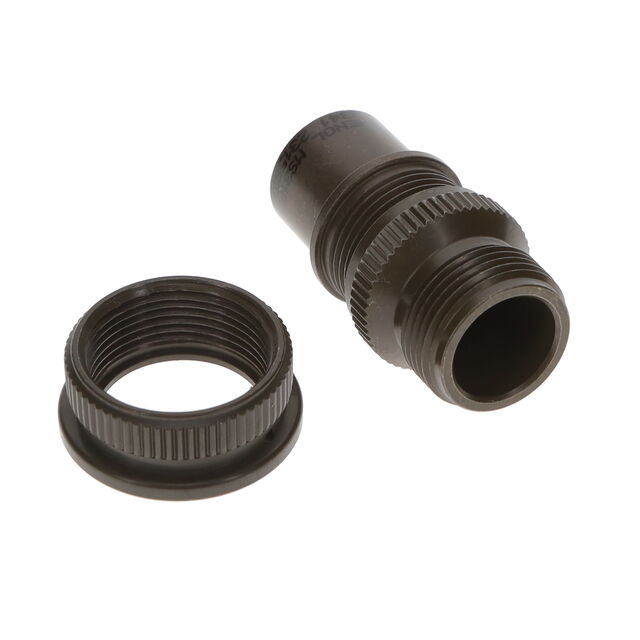

Amphenol Aerospace Operations MS3106A14S-4S	125 °C	-55 °C	Copper Alloy	Unshielded	Neoprene	Olive Drab	Backshell Coupling Nut	Aluminum Alloy	Cadmium Olive Drab Chromate	Free Hanging (In-Line)			14S-4	N (Normal)	Solder Cup	Marine Military	Female Sockets Plug	MIL-DTL-5015	Silver	1	Threaded	Metal	13 A	1250 VDC	900 VAC	Environment Resistant	4 S	14 S	Military
Amphenol Aerospace Operations MS3106A14S-1S	125 °C	-55 °C	Copper Alloy	Unshielded	Neoprene	Olive Drab	Backshell Coupling Nut	Aluminum Alloy	Cadmium Olive Drab Chromate	Free Hanging (In-Line)	Aluminum Alloy	Olive Drab Chromate over Cadmium	14S-1	N (Normal)	Solder Cup	Marine Military	Female Sockets Plug	MIL-DTL-5015	Silver	3	Threaded	Metal
Amphenol Aerospace Operations MS3106A14S-5S	125 °C	-55 °C	Copper Alloy	Unshielded	Neoprene	Olive Drab	Backshell Coupling Nut	Aluminum Alloy	Cadmium Olive Drab Chromate	Free Hanging (In-Line)	Aluminum Alloy	Olive Drab Chromate over Cadmium	14S-5	N (Normal)	Solder Cup	Marine Military	Female Sockets Plug	MIL-DTL-5015	Silver	5	Threaded	Metal
Amphenol Aerospace Operations MS3106A14S-12P
