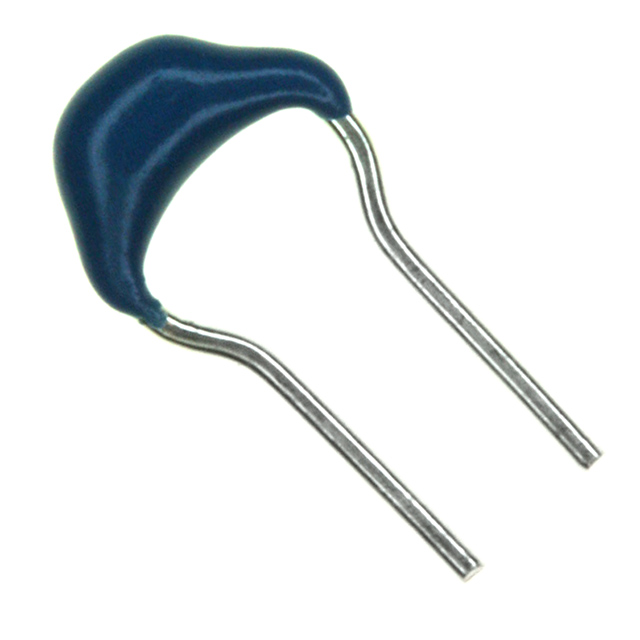

FK Series

Catalog

MULTILAYER CERAMIC CAPACITORS MLCC - LEADED SUGGESTED ALTERNATE 810-FG18C0G2A182JNT0

...

Part	Package / Case	Tolerance	Applications	Lead Spacing	Lead Spacing	Mounting Type	Temperature Coefficient	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Lead Style	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max)
TDK Corporation FK14C0G2A182JN006	Radial	5 %	General Purpose	2.5 mm	0.098 in	Through Hole	C0G NP0	0.217 "	5.5 mm	1800 pF	Formed Leads - Kinked	100 V	-55 C	125 °C
TDK Corporation FK28X7R2A682KN000	Radial	10 %	General Purpose	5 mm	0.197 "	Through Hole	X7R	0.217 "	5.5 mm	6800 pF	Formed Leads - Kinked	100 V	-55 C	125 °C	0.098 in	2.5 mm	4 mm	0.157 in
TDK Corporation FK18C0G1H680JN006	Radial	5 %	General Purpose	2.5 mm	0.098 in	Through Hole	C0G NP0	0.217 "	5.5 mm	68 pF	Formed Leads - Kinked	50 VDC	-55 C	125 °C	0.098 in	2.5 mm	4 mm	0.157 in
TDK Corporation FK26C0G1H153JN006	Radial	5 %	General Purpose	5 mm	0.197 "	Through Hole	C0G NP0	0.236 "		15000 pF	Formed Leads - Kinked	50 VDC	-55 C	125 °C	0.138 in	3.5 mm	5.5 mm	0.217 in	6 mm
TDK Corporation FK14X7S2A334KR020	Radial	10 %	General Purpose	2.5 mm	0.098 in	Through Hole	X7S	0.217 "	5.5 mm	0.33 µF	Formed Leads	100 V	-55 C	125 °C
TDK Corporation FK26X5R0J685KN006	Radial	10 %	General Purpose	5 mm	0.197 "	Through Hole	X5R	0.236 "		6.8 µF	Formed Leads - Kinked	6.3 VDC	-55 C	85 °C	0.138 in	3.5 mm	5.5 mm	0.217 in	6 mm
TDK Corporation FK22C0G2E223JN000	Radial	5 %	General Purpose	5 mm	0.197 "	Through Hole	C0G NP0	0.315 in	8 mm	0.022 µF	Formed Leads - Kinked	250 V	-55 C	125 °C	0.157 "	4 mm	7.5 mm	0.295 "
TDK Corporation FK14X7R1C105KN006	Radial	10 %	General Purpose	2.5 mm	0.098 in	Through Hole	X7R	0.217 "	5.5 mm	1 µF	Formed Leads - Kinked	16 V	-55 C	125 °C
TDK Corporation FK18C0G2E331JN006	Radial	5 %	General Purpose	2.5 mm	0.098 in	Through Hole	C0G NP0	0.217 "	5.5 mm	330 pF	Formed Leads - Kinked	250 V	-55 C	125 °C	0.098 in	2.5 mm	4 mm	0.157 in
TDK Corporation FK14X7R1E155KR020	Radial	10 %	General Purpose	2.5 mm	0.098 in	Through Hole	X7R	0.217 "	5.5 mm	1500 nF	Formed Leads	25 VDC	-55 C	125 °C
