PS9117A Series

Catalog

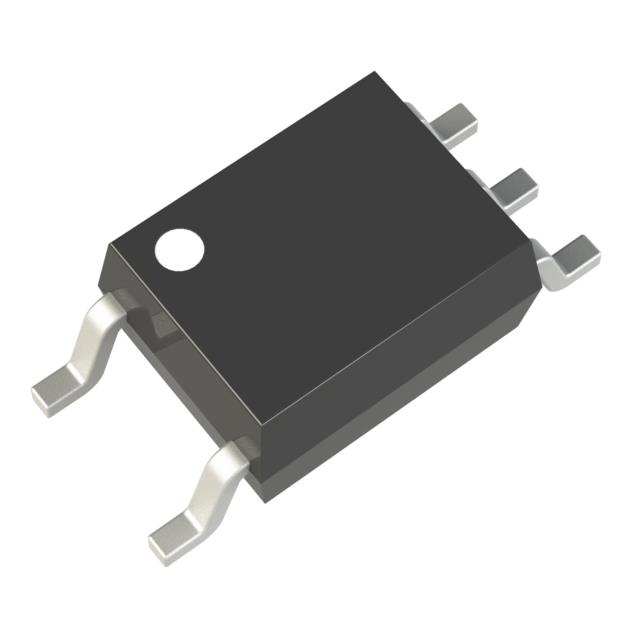

HIGH SPEED OPTOCOUPLERS HI-SPEED OPTOCPLR SO-5

Part	Common Mode Transient Immunity (Min) [Min]	Mounting Type	Voltage - Isolation	Current - Output / Channel	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate	Output Type	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Voltage - Forward (Vf) (Typ)	Input Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - DC Forward (If) (Max)	Supplier Device Package	Inputs - Side 1/Side 2 [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Channels [custom]	Package / Case	Package / Case
Renesas Electronics Corporation PS9117A-AX	15 kV/µs	Surface Mount	3750 Vrms	25 mA	85 °C	-40 C	10 Mbps	Open Collector	75 ns	75 ns	1.65 V	DC	5 ns	20 ns	30 mA	5-SO	1	5.5 V	4.5 V	1	6-SOIC	0.173 " 4.4 mm Width 5 Leads
Renesas Electronics Corporation PS9117A-V-AX	15 kV/µs	Surface Mount	3750 Vrms	25 mA	85 °C	-40 C	10 Mbps	Open Collector	75 ns	75 ns	1.65 V	DC	5 ns	20 ns	30 mA	5-SO	1	5.5 V	4.5 V	1	6-SOIC	0.173 " 4.4 mm Width 5 Leads
Renesas Electronics Corporation PS9117A-AX	15 kV/µs	Surface Mount	3750 Vrms	25 mA	85 °C	-40 C	10 Mbps	Open Collector	75 ns	75 ns	1.65 V	DC	5 ns	20 ns	30 mA	5-SO	1	5.5 V	4.5 V	1	6-SOIC	0.173 " 4.4 mm Width 5 Leads
