MURTA400 Series

Catalog

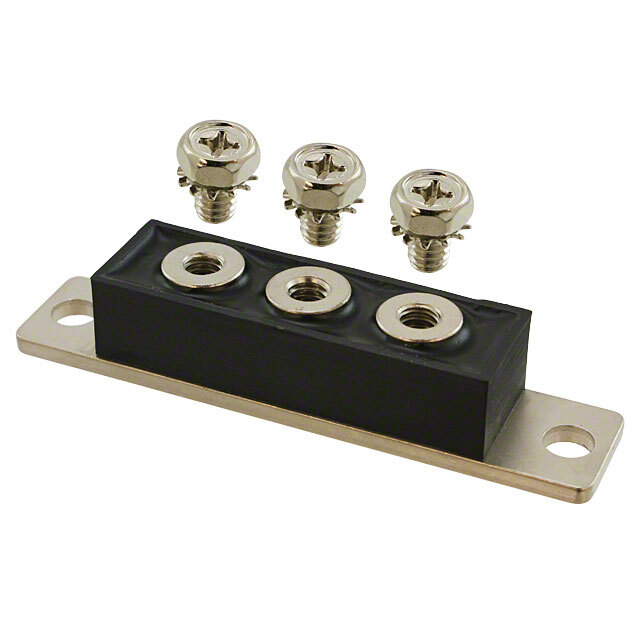

DIODE MODULE GP 400V 200A 3TOWER

Part	Mounting Type	Current - Average Rectified (Io) (per Diode)	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Technology	Diode Configuration	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Speed [Min]
GeneSiC Semiconductor MURTA40040R	Chassis Mount	200 A	-55 °C	150 °C	Standard	1 Pair Common Anode	400 V	Three Tower	Three Tower	1.3 V	25 µA	200 mA 500 ns
GeneSiC Semiconductor MURTA40040	Chassis Mount	200 A	-55 °C	150 °C	Standard	1 Pair Common Cathode	400 V	Three Tower	Three Tower	1.3 V	25 µA	200 mA 500 ns
GeneSiC Semiconductor MURTA40020R	Chassis Mount	200 A	-55 °C	150 °C	Standard	1 Pair Common Anode	200 V	Three Tower	Three Tower	1.3 V	25 µA	200 mA 500 ns
GeneSiC Semiconductor MURTA40060	Chassis Mount	200 A	-55 °C	150 °C	Standard	1 Pair Common Cathode	600 V	Three Tower	Three Tower	1.7 V	25 µA	200 mA 500 ns
GeneSiC Semiconductor MURTA40060R	Chassis Mount	200 A	-55 °C	150 °C	Standard	1 Pair Common Anode	600 V	Three Tower	Three Tower	1.7 V	25 µA	200 mA 500 ns
