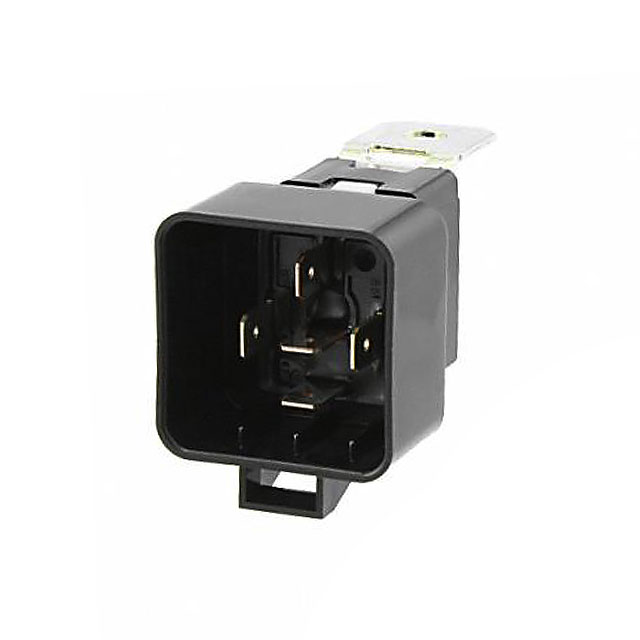

CB1-WM Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
RELAY AUTOMOTIVE SPDT 20A 24V
| Part | Contact Material | Coil Resistance | Coil Power | Must Operate Voltage | Must Release Voltage | Mounting Type | Coil Voltage | Contact Rating (Current) | Switching Voltage | Contact Form | Coil Current | Features | Termination Style | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | Silver Alloy Cadmium Free | 320 Ohms | 1.8 W | 14 VDC | 2.4 VDC | Chassis Mount | 24 VDC | 20 A | 28 VDC | SPDT (1 Form C) | 0.075 A | Sealed - Fully | Quick Connect - 0.250" (6.3mm) | 15 ms | 85 °C | -40 C | Non Latching | 15 ms |
 Panasonic Electronic Components | Silver Alloy Cadmium Free | 103 Ohms | 1.4 W | 7 VDC | 1.2 VDC | Chassis Mount | 12 VDC | 40 A | 14 VDC | SPDT (1 Form C) | 117 mA | Sealed - Fully | Quick Connect - 0.250" (6.3mm) | 15 ms | 85 °C | -40 C | Non Latching | 15 ms |
