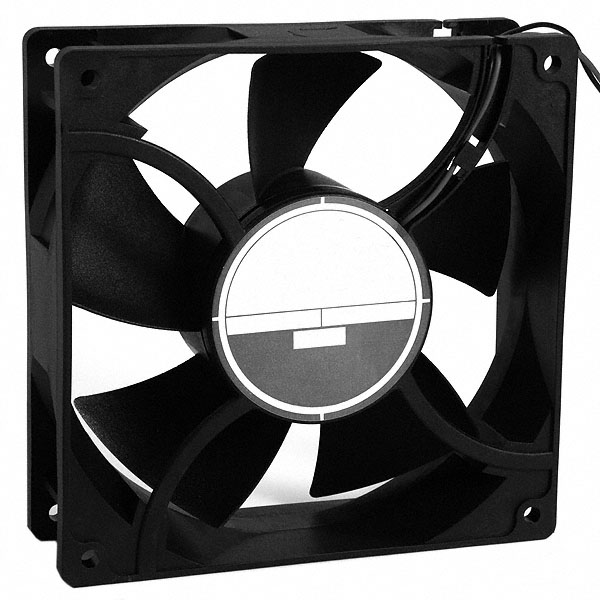

OD127 Series
Manufacturer: ORION FANS
Beta
⌘K
FAN AXIAL 127X38.5MM 12VDC WIRE
| Part | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Current Rating (Amps) | Lifetime @ Temp. | Bearing Type | RPM | Approval Agency | Voltage - Rated | Width [y] | Fan Type | Static Pressure | Static Pressure | Size / Dimension [z] | Size / Dimension [x] | Noise | Operating Temperature [Min] | Operating Temperature [Max] | Air Flow | Air Flow | Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 8 V | 14 V | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 780 mA | 45 °C 60000 Hrs | Ball | 2950 RPM | cURus TUV | 12 VDC | 38.5 mm | Tubeaxial | 0.35 in H2O | 87.2 Pa | 5 in | 5 " | 53 dB | -4 °F | 167 °F | 161 CFM | 4.51 mł/min | 3 Wire Leads | Speed Sensor (Tach) |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 8 V | 14 V | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 45 °C 60000 Hrs | Ball | cURus TUV | 12 VDC | 38.5 mm | Tubeaxial | 5 in | 5 " | -4 °F | 167 °F | 3 Wire Leads | Speed Sensor (Tach) | |||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 11 VDC | 28 V | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 0.61 A | 45 °C 60000 Hrs | Ball | 3500 RPM | cURus TUV | 24 VDC | 38.5 mm | Tubeaxial | 0.46 in H2O | 114.6 Pa | 5 in | 5 " | 56 dB | -4 °F | 167 °F | 161 CFM | 4.51 mł/min | 3 Wire Leads | PWM Control |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 8 V | 14 V | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 2.3 A | 45 °C 60000 Hrs | Ball | 4100 RPM | cURus TUV | 12 VDC | 38.5 mm | Tubeaxial | 0.55 in H2O | 137 Pa | 5 in | 5 " | 62 dB(A) | -4 °F | 167 °F | 193 CFM | 5.4 mł/min | 3 Wire Leads | Speed Sensor (Tach) |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 11 VDC | 28 V | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 0.41 A | 45 °C 60000 Hrs | Ball | 2950 RPM | cURus TUV | 24 VDC | 38.5 mm | Tubeaxial | 0.35 in H2O | 87.2 Pa | 5 in | 5 " | 53 dB | -4 °F | 167 °F | 161 CFM | 4.51 mł/min | 3 Wire Leads | Locked Rotor Sensor |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 22 VDC | 55 VDC | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 0.34 A | 45 °C 60000 Hrs | Ball | 3500 RPM | cURus TUV | 48 VDC | 38.5 mm | Tubeaxial | 0.46 in H2O | 114.6 Pa | 5 in | 5 " | 56 dB | -4 °F | 167 °F | 161 CFM | 4.51 mł/min | 4 Wire Leads | PWM Control Speed Sensor (Tach) |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 22 VDC | 55 VDC | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 0.23 A | 45 °C 60000 Hrs | Ball | 2950 RPM | cURus TUV | 48 VDC | 38.5 mm | Tubeaxial | 0.35 in H2O | 87.2 Pa | 5 in | 5 " | 53 dB | -4 °F | 167 °F | 161 CFM | 4.51 mł/min | 3 Wire Leads | PWM Control |
 ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 26 VDC | 56 VDC | Aluminum | 0.22 A | 45 °C 60000 Hrs | Ball | 3200 RPM | cURus TUV | 48 VDC | 38.5 mm | Tubeaxial | 0.41 in H2O | 102.1 Pa | 5 in | 5 " | 46 dB(A) | -4 °F | 167 °F | 140 CFM | 3.92 mł/min | 2 Wire Leads | |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 11 VDC | 28 V | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 45 °C 60000 Hrs | Ball | cURus TUV | 24 VDC | 38.5 mm | Tubeaxial | 5 in | 5 " | -4 °F | 167 °F | 3 Wire Leads | PWM Control | |||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 8 V | 14 V | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 780 mA | 45 °C 60000 Hrs | Ball | 2950 RPM | cURus TUV | 12 VDC | 38.5 mm | Tubeaxial | 0.35 in H2O | 87.2 Pa | 5 in | 5 " | 53 dB | -4 °F | 167 °F | 161 CFM | 4.51 mł/min | 4 Wire Leads | PWM Control Speed Sensor (Tach) |
