512F Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

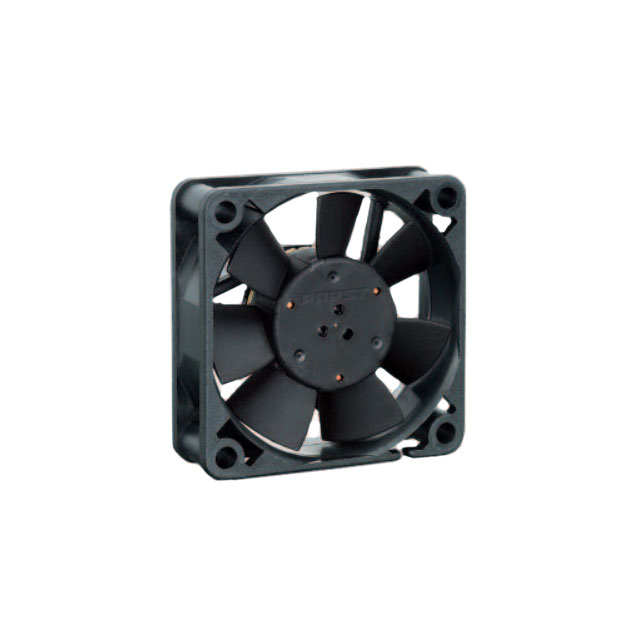

FAN AXIAL 50X15MM 12VDC WIRE
| Part | Material - Frame | Material - Blade | Air Flow | Air Flow | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Voltage - Rated | Termination | Size / Dimension [x] | Size / Dimension [z] | Bearing Type | Fan Type | Operating Temperature [Min] | Operating Temperature [Max] | Noise | Width [y] | RPM | Features | Approval Agency | Weight [diameter] | Weight [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polyamide (PA) Nylon Fiberglass Reinforced | 11.8 CFM | 0.33 mł/min | 50000 Hrs | 10.8 VDC | 13.2 VDC | 12 VDC | 3 Wire Leads | 50 mm | 50 mm | Sintec | Tubeaxial | -20 ░C | 70 °C | 30 dB | 15 mm | 5000 RPM | Speed Sensor (Tach) | |||
ebm-papst Inc. | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polyamide (PA) Nylon Fiberglass Reinforced | 11.8 CFM | 0.33 mł/min | 50000 Hrs | 10.8 VDC | 13.2 VDC | 12 VDC | 3 Wire Leads | 50 mm | 50 mm | Sintec | Tubeaxial | -20 ░C | 70 °C | 30 dB | 15 mm | 5000 RPM | Speed Sensor (Tach) | CE CSA UL VDE | 0.055 lb | 24.95 g |
