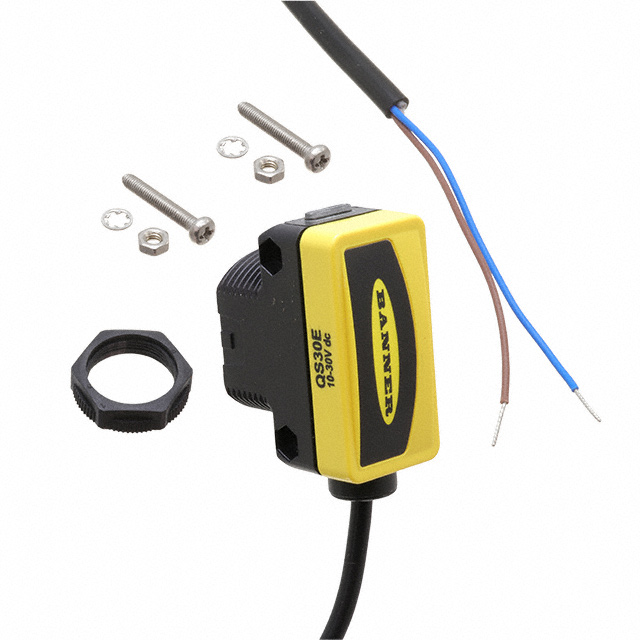

QS30E Series

Catalog

PHOTOELECTRIC SENSOR, QS30 SERIES, WORLD-BEAM, DIFFUSE, 1400MM, NPN / PNP, 10-30V, QUICK DISCONNECT

Part	Ingress Protection	Sensing Method	Sensing Distance	Sensing Distance	Voltage - Supply [Min]	Voltage - Supply [Max]	Connection Method	Response Time	Light Source	Adjustment Type	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Cable Length	Cable Length	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]
BANNER ENGINEERING QS30EDVQ	IEC IEC IP67 IP67 NEMA 6P	Diffuse	39.37 in	1 m	10 VDC	30 VDC	Connector	1.8 ms	LED	Adjustable	Dark-ON/Light-ON NPN/PNP	55 °C	-10 °C
BANNER ENGINEERING QS30EQ	IP67 NEMA 6P	Through-Beam	196.85 ft	60 m	10 VDC	30 VDC	Connector		Infrared (875nm)			70 °C	-20 ░C
BANNER ENGINEERING QS30EXQP-74009	IP67 NEMA 6P	Through-Beam	698.82 ft	213 m	10 VDC	30 VDC	Connector	100 ms	LED			60 °C	-20 ░C
BANNER ENGINEERING QS30EXQ	IP69K NEMA 6P	Through-Beam	698.82 ft	213 m	10 VDC	30 VDC	Cable	30 ms	LED			60 °C	-20 ░C	78.74 "	2 m
BANNER ENGINEERING QS30EX	IP67 NEMA 6P	Through-Beam	698.82 ft	213 m	10 VDC	30 VDC	Cable	30 ms	LED			60 °C	-20 ░C	78.74 "	2 m

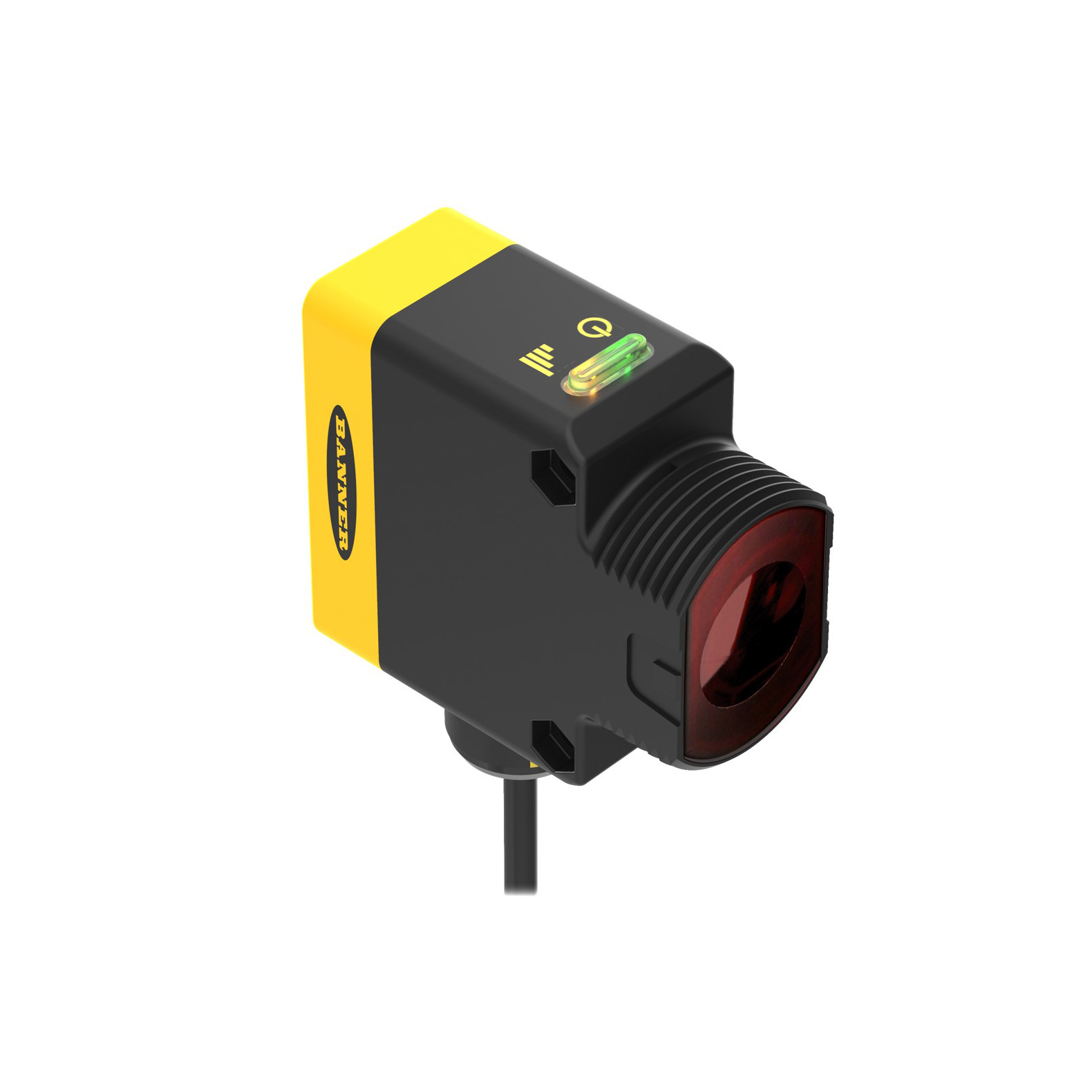

BANNER ENGINEERING QS30EXH2O	IEC IEC IP67 IP67 NEMA 6P	Through-Beam	13.12 '	4 m	10 VDC	30 VDC	Cable	1 ms	LED			60 °C	-20 ░C	78.74 "	2 m

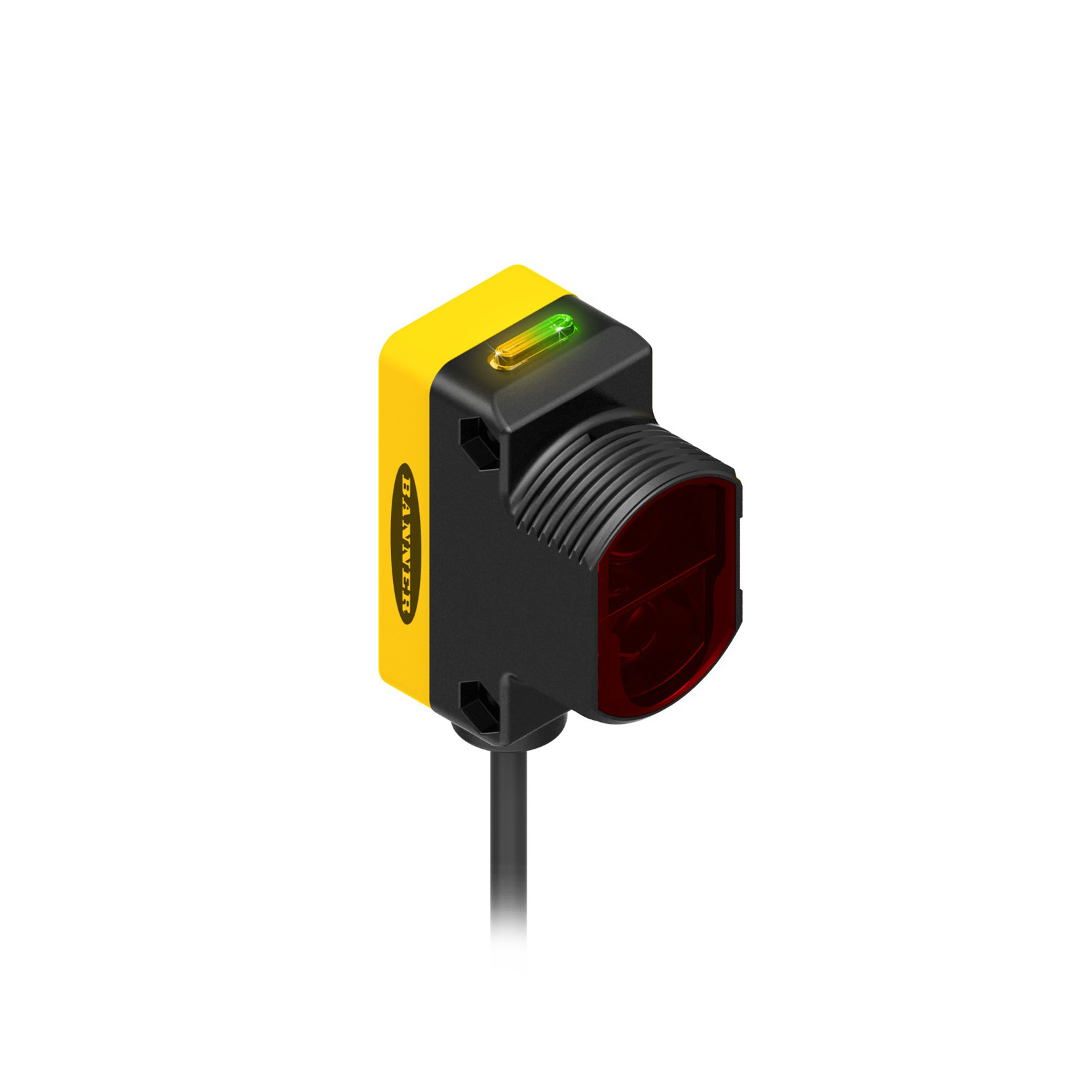

BANNER ENGINEERING QS30ELVCQ5	IEC IEC IP67 IP67 NEMA 6P	Retroreflective NonPolarized	78.74 in	2 m	10 VDC	30 VDC	Connector	500 µs	Red (660nm)	Adjustable	NPN/PNP - Dark-ON/Light-ON - Selectable	55 °C	-10 °C
BANNER ENGINEERING QS30ELVCQ	IEC IEC IP67 IP67 NEMA 6P	Retroreflective NonPolarized			10 VDC	30 VDC	Connector	500 µs	LED	Adjustable	NPN PNP	55 °C	-10 °C			3.937 "	10 cm	2000 mm	78.74 "
