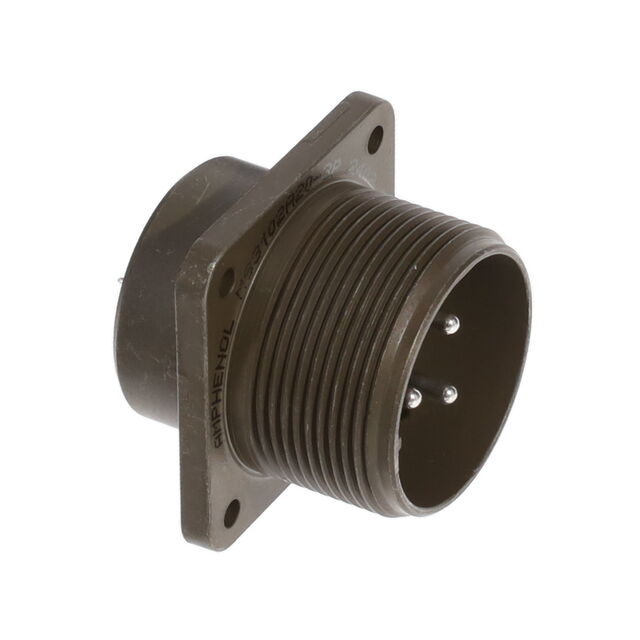

MS3102A20 Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K
ER 9C 6#16 3#12 PIN RECP
| Part | Shell Material | Orientation | Insert Material | Number of Positions | Operating Temperature (Max) | Operating Temperature (Min) | Primary Material | Color | Qualification | Applications | Contact Material | Shell Size - Insert Width | Shell Size - Insert Length | Shielding | Shell Finish | Contact Finish - Mating | Cable Opening | Mounting Feature | Mounting Type | Connector Type | Termination | Fastening Type | Current Rating | Grade | Shell Size - Insert (Maximum) | Shell Size - Insert (Minimum) | Ingress Protection | Current Rating Options |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Aerospace Operations | ||||||||||||||||||||||||||||
 Amphenol Aerospace Operations | Aluminum Alloy | N (Normal) | Neoprene | 3 | 125 °C | -55 °C | Metal | Olive Drab | MIL-5015 | Marine Military | Copper Alloy | 3 mm | 20 mm | Unshielded | Cadmium Olive Drab Chromate | Silver | 1.125 in | Flange | Panel Mount | Male Pins Receptacle | Solder Cup | Threaded | ||||||
 Amphenol Aerospace Operations | Aluminum Alloy | W | Neoprene | 3 | 125 °C | -55 °C | Metal | Olive Drab | MIL-5015 | Marine Military | Copper Alloy | 3 mm | 20 mm | Unshielded | Cadmium Olive Drab Chromate | Silver | 1.125 in | Flange | Panel Mount | Female Sockets Receptacle | Solder Cup | Threaded | ||||||
 Amphenol Aerospace Operations | Aluminum Alloy | N (Normal) | Neoprene | 14 | 125 °C | -55 °C | Metal | Olive Drab | MIL-DTL-5015 | Marine Military | Copper Alloy | Unshielded | Cadmium Olive Drab Chromate | Silver | Flange | Panel Mount | Male Pins Receptacle | Solder Cup | Threaded | 13 A | Military | 27 | 20 | Environment Resistant | ||||
 Amphenol Aerospace Operations | Aluminum Alloy | N (Normal) | Neoprene | 6 | 125 °C | -55 °C | Metal | Olive Drab | MIL-DTL-5015 | Marine Military | Copper Alloy | Unshielded | Cadmium Olive Drab Chromate | Silver | Flange | Panel Mount | Female Sockets Receptacle | Solder Cup | Threaded | Military | 22 | 20 | Environment Resistant | 13A 46A | ||||
Amphenol Aerospace Operations | ||||||||||||||||||||||||||||
Amphenol Aerospace Operations | ||||||||||||||||||||||||||||
Amphenol Aerospace Operations | ||||||||||||||||||||||||||||
Amphenol Aerospace Operations | ||||||||||||||||||||||||||||
 Amphenol Aerospace Operations | Aluminum Alloy | N (Normal) | Neoprene | 17 | 125 °C | -55 °C | Metal | Olive Drab | MIL-5015 | Marine Military | Copper Alloy | Unshielded | Cadmium Olive Drab Chromate | Silver | 1.125 in | Flange | Panel Mount | Female Sockets Receptacle | Solder Cup | Threaded | 29 | 20 |
