FFB0824 Series

Catalog

FAN AXIAL 80X38MM 24VDC WIRE

Part	Lifetime @ Temp.	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Material - Blade	Approval Agency	Static Pressure	Static Pressure	Air Flow	Air Flow	Power (Watts)	Bearing Type	Voltage - Rated	Termination	Width [y]	Features	Fan Type	Size / Dimension [z]	Size / Dimension [x]	Noise	RPM	Weight [custom]	Weight [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection

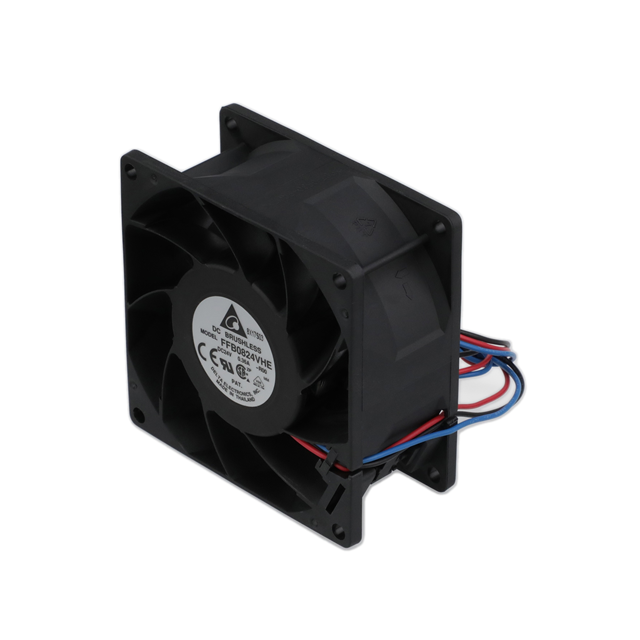

Delta Electronics FFB0824VHE-R00	70000 Hrs	Plastic	27.6 VDC	14	0.24 A	Plastic	CE CSA UL VDE	0.424 in H2O	105.6 Pa	1.6 mł/min	57.2 CFM	5.76 W	Ball	24 VDC	3 Wire Leads	38 mm	Locked Rotor Sensor	Tubeaxial	80 mm	80 mm	44.5 dB	4200 RPM	0.375 lb	170.1 g	70 °C	-10 °C

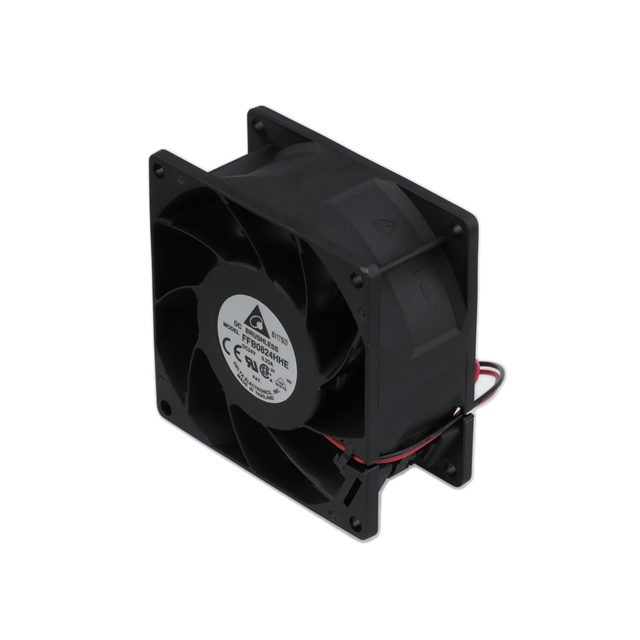

Delta Electronics FFB0824HHE	70000 Hrs	Plastic	27.6 VDC	14	150 mA	Plastic	CE CSA UL VDE	0.281 in H2O	70 Pa	1.27 m³/min	45.2 CFM	3.6 W	Ball	24 VDC	2 Wire Leads	38 mm		Tubeaxial	80 mm	80 mm	39 dB(A)	3400 RPM	0.375 lb	170.1 g	70 °C	-10 °C

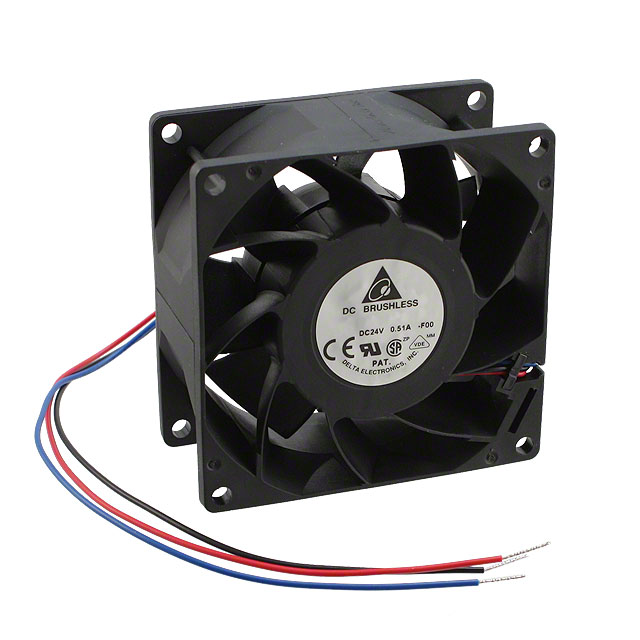

Delta Electronics FFB0824SHE-F00	70000 Hrs	Plastic	27.6 VDC	14	0.34 A	Plastic	CE CSA UL VDE	0.591 in H2O	147.2 Pa	1.92 m³/min	68.5 CFM	8.16 W	Ball	24 VDC	3 Wire Leads	38 mm	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	80 mm	80 mm	48.5 dB(A)	4900 RPM	0.375 lb	170.1 g	70 °C	-10 °C

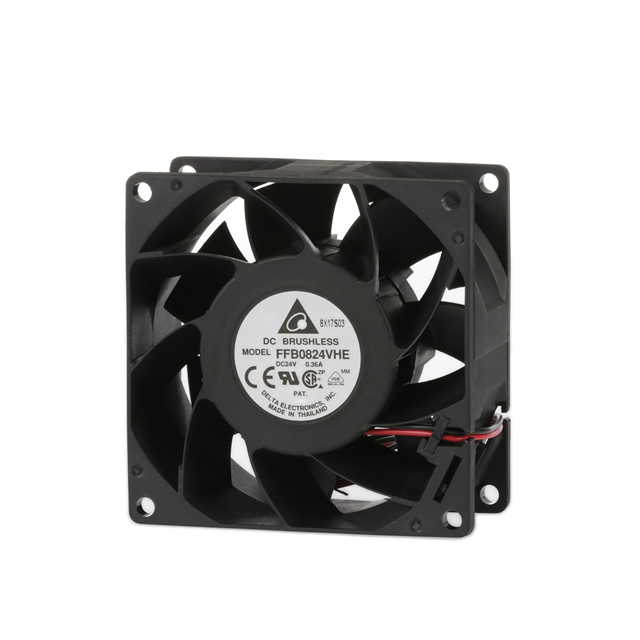

Delta Electronics FFB0824VHE	70000 Hrs	Plastic	27.6 VDC	14	0.24 A	Plastic	CE CSA UL VDE	0.424 in H2O	105.6 Pa	1.6 mł/min	57.2 CFM	5.76 W	Ball	24 VDC	2 Wire Leads	38 mm		Tubeaxial	80 mm	80 mm	44.5 dB	4200 RPM	0.375 lb	170.1 g	70 °C	-10 °C
Delta Electronics FFB0824EHE-F00	70000 Hrs	Plastic	26.4 VDC	14 VDC	0.5 A	Plastic	CE CSA UL VDE	0.812 in H2O	202.3 Pa	2.25 mł/min	80.2 CFM	12 W	Ball	24 VDC	3 Wire Leads	38 mm	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	80 mm	80 mm	52.5 dB(A)	5700 RPM	0.375 lb	170.1 g	70 °C	-10 °C

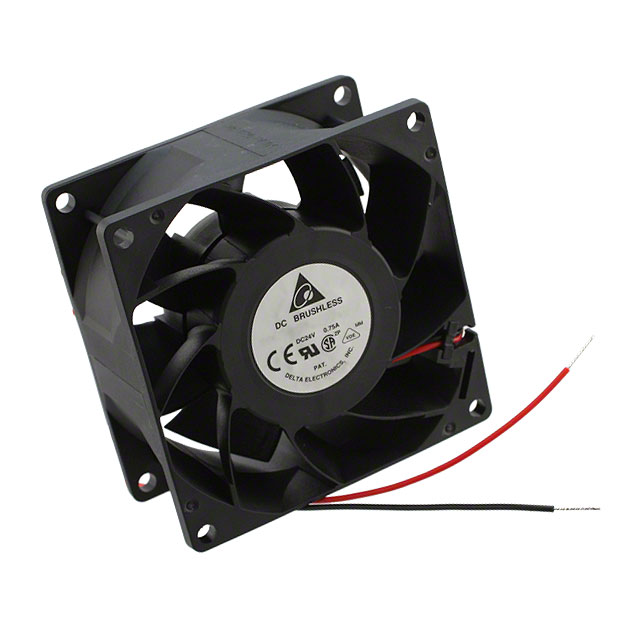

Delta Electronics FFB0824EHE	70000 Hrs	Plastic	26.4 VDC	14 VDC	0.5 A	Plastic	CE CSA UL VDE	0.812 in H2O	202.3 Pa	2.25 mł/min	80.2 CFM	12 W	Ball	24 VDC	2 Wire Leads	38 mm		Tubeaxial	80 mm	80 mm	52.5 dB(A)	5700 RPM	0.375 lb	170.1 g	70 °C	-10 °C
Delta Electronics FFB0824HHE-F00	70000 Hrs	Plastic	27.6 VDC	14	150 mA	Plastic	CE CSA UL VDE	0.281 in H2O	70 Pa	1.27 m³/min	45.2 CFM	3.6 W	Ball	24 VDC	3 Wire Leads	38 mm	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	80 mm	80 mm	39 dB(A)	3400 RPM	0.375 lb	170.1 g	70 °C	-10 °C
Delta Electronics FFB0824SH-TZW1	70000 Hrs	Plastic	26.4 VDC	20.4 VDC	0.24 A	Plastic	CE CSA UL VDE	0.392 in H2O	97.6 Pa	1.88 m³/min	67 CFM	5.76 W	Ball	24 VDC	2 Wire Leads	25.4 mm		Tubeaxial	80 mm	80 mm	48.6 dB(A)	4500 RPM	0.254 lb	115.21 g	70 °C	-10 °C	IP55 - Dust Protected Water Resistant
Delta Electronics FFB0824EHE-R00	70000 Hrs	Plastic	26.4 VDC	14 VDC	0.5 A	Plastic	CE CSA UL VDE	0.812 in H2O	202.3 Pa	2.25 mł/min	80.2 CFM	12 W	Ball	24 VDC	3 Wire Leads	38 mm	Locked Rotor Sensor	Tubeaxial	80 mm	80 mm	52.5 dB(A)	5700 RPM	0.375 lb	170.1 g	70 °C	-10 °C
