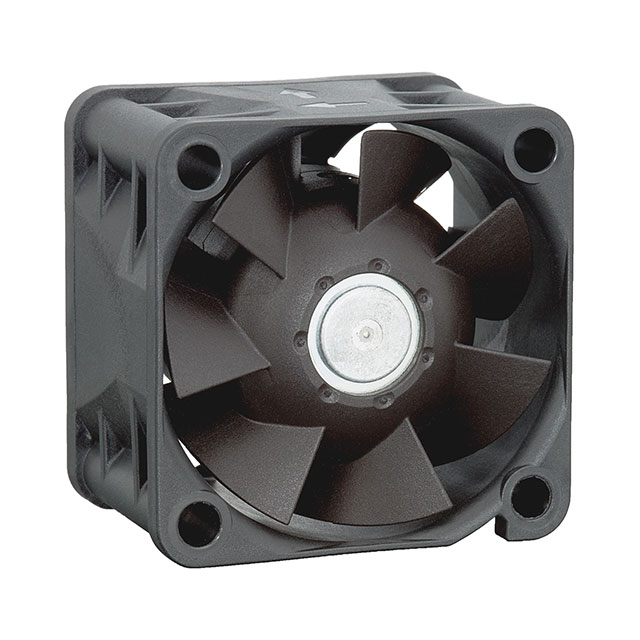

422J Series

Catalog

FAN AXIAL 40X28MM 12VDC WIRE

Part	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Air Flow	Air Flow	Material - Blade	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [z]	Noise	Termination	Power (Watts)	Width [x]	RPM	Approval Agency	Weight	Weight	Bearing Type	Voltage - Rated	Features
ebm-papst Inc. 422JH	60000 Hrs	8 V	13.8 VDC	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	0.627 m³/min	22.4 CFM	Polyamide (PA) Nylon Fiberglass Reinforced	Tubeaxial	-20 ░C	70 °C	40 mm	40 mm	54 dB	2 Wire Leads	6.8 W	28 mm	17200 RPM	CSA UL VDE	44.91 g	0.099 lb	Ball	12 VDC

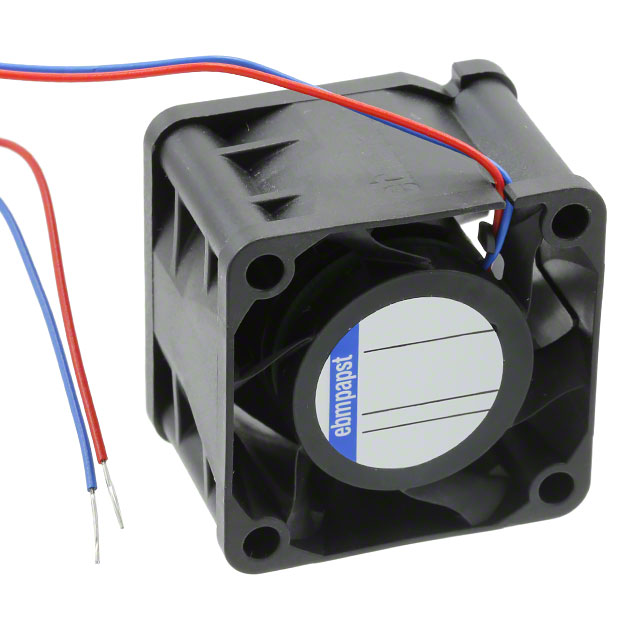

ebm-papst Inc. 422JM	67500 Hrs	8 V	13.8 VDC	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	0.395 m³/min	14.1 CFM	Polyamide (PA) Nylon Fiberglass Reinforced	Tubeaxial	-20 ░C	70 °C	40 mm	40 mm	42 dB	2 Wire Leads		28 mm	11100 RPM	CSA UL VDE	44.91 g	0.099 lb	Ball	12 VDC

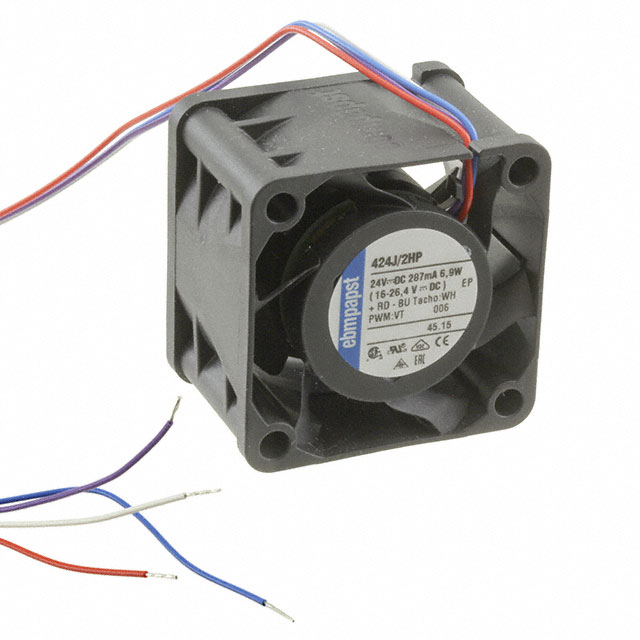

ebm-papst Inc. 422J/2HP	40 °C 60000 Hrs	8 V	13.8 VDC		0.627 m³/min	22.4 CFM	Polyamide (PA) Nylon	Tubeaxial	-20 ░C	70 °C	40 mm	40 mm	54 dB	4 Wire Leads	6.8 W	28 mm	17200 RPM	CE	44.91 g	0.099 lb	Ball	12 VDC	PWM Control Speed Sensor (Tach)
ebm-papst Inc. 422JN	67500 Hrs	8 V	13.8 VDC	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	0.512 mł/min	18.3 CFM	Polyamide (PA) Nylon Fiberglass Reinforced	Tubeaxial	-20 ░C	70 °C	40 mm	40 mm	48 dB	2 Wire Leads	4 W	28 mm	14000 RPM	CSA UL VDE	44.91 g	0.099 lb	Ball	12 VDC
