047950 Series

Manufacturer: Molex

Catalog

RF ANT 2.4/5GHZ PCB TRCE 16300MM

Part	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Power - Max [Max]	Return Loss	Mounting Type	Gain	Frequency (Center/Band)	Antenna Type	Features	Features	Number of Bands	Frequency Range [Max]	Frequency Range [Min]	Termination	Height (Max)	Height (Max) [Max]	Applications	RF Family/Standard

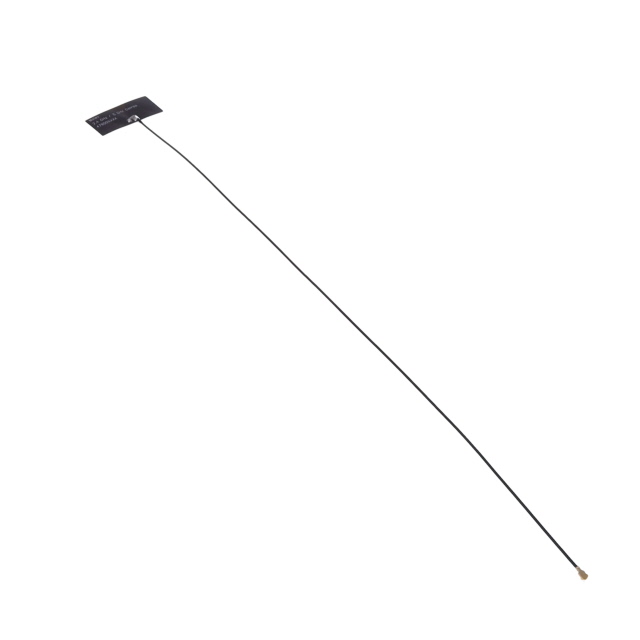

Molex 0479504011	4 GHz	2 GHz	3 GHz	2 W	-10 dB	Adhesive	2.3 dBi 3.1 dBi	2.4 GHz 5 GHz	PCB Trace	300 mm	Cable	2	2.5 GHz 5.85 GHz	2.4 GHz 5.15 GHz
Molex 0479500250

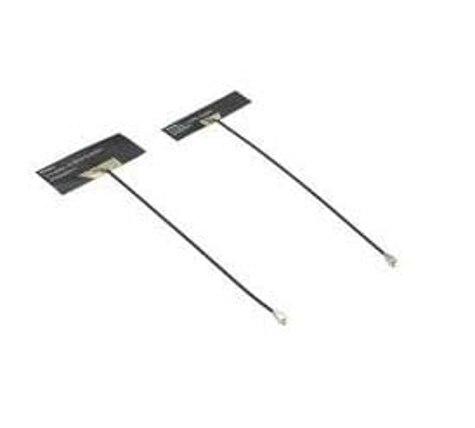

Molex 0479502011	4 GHz	2 GHz	3 GHz	2 W	-10 dB -9 dB	Adhesive	2.6 dBi 4.4 dBi	2.4 GHz 5 GHz	PCB Trace	200 mm	Cable	2	2.4835 GHz 5.9 GHz	2.4 GHz 4.8 GHz	SMT Male	0.1 mm	0.004 in	Bluetooth WLAN Zigbee™	802.15.4 Bluetooth WiFi

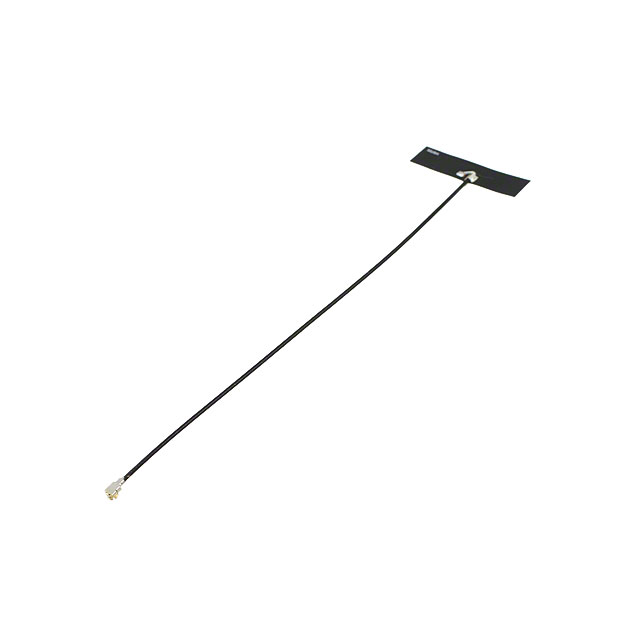

Molex 0479501001	4 GHz	2 GHz	3 GHz	2 W	-10 dB -9 dB	Adhesive	2.7 dBi 3 dBi 3.7 dBi	2.4 GHz 5 GHz	PCB Trace		Cable - 150mm	2	2.4835 GHz 5.9 GHz	2.4 GHz 4.8 GHz	SMT Male	0.1 mm	0.004 in	Bluetooth WLAN Zigbee™	802.15.4 Bluetooth WiFi
