OSTTE09 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

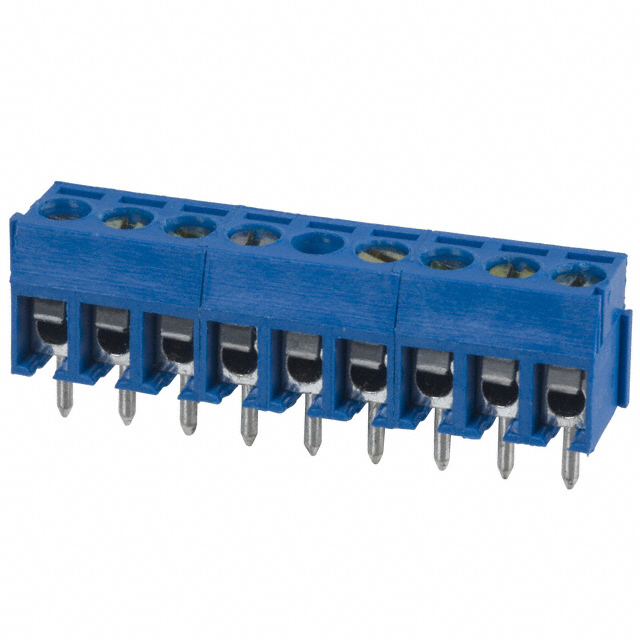

TERM BLK 9POS SIDE ENT 3.5MM PCB
| Part | Clamp Material - Plating [custom] | Screw Thread | Contact Material - Plating | Torque - Screw | Torque - Screw | Screw Material - Plating | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Orientation | Voltage | Positions Per Level | Wire Termination | Mounting Type | Features | Color | Wire Gauge [Max] | Wire Gauge [Min] | Pitch | Pitch | Number of Levels | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | Stainless Steel | M2 | Brass - Tin Plated | 1.7 Lb-In | 0.2 Nm | Steel - Zinc Plated | Thermoplastic | -30 ░C | 105 ░C | Horizontal with Board | 125 V | 9 | Screw - Leaf Spring Wire Guard | Through Hole | Interlocking (Side) | Blue | 26 AWG | 16 AWG | 3.5 mm | 0.138 " | 1 | 10 A |
