SGRT Series

Catalog

CONN RING CIRC 7-10AWG #8 CRIMP

Part	Material - Insulation	Length - Overall [x]	Length - Overall [x]	Mounting Type	Contact Material	Width - Outer Edges [y]	Width - Outer Edges [y]	Termination	Terminal Type	Color	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Stud/Tab Size	Insulation	Width - Outer Edges	Width - Outer Edges	Width - Outer Edges [x]	Length - Overall	Length - Overall

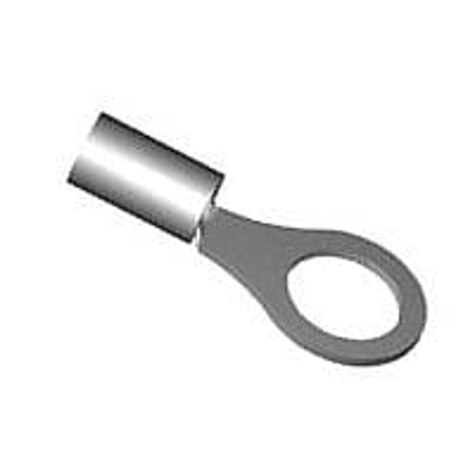

TE Connectivity AMP Connectors SGRT-4-08	Polyvinylidene Fluoride (PVDF)	2.005 in	50.93 mm	Free Hanging (In-Line)	Copper Alloy	0.55 in	13.97 mm	Crimp	Circular	Transparent - Blue	Tin	10 AWG	7 AWG	8 Stud	Insulated with Heat Shrink
TE Connectivity AMP Connectors SGRT-3-06	Polyvinylidene Fluoride (PVDF)	1.86 "	47.24 mm	Free Hanging (In-Line)	Copper Alloy			Crimp	Circular	Transparent - Blue	Tin	13 AWG	9 AWG	6 Stud	Insulated with Heat Shrink	11.05 mm	0.435 in
TE Connectivity AMP Connectors SGRT-2-06	Polyvinylidene Fluoride (PVDF)	1.595 in	40.51 mm	Free Hanging (In-Line)	Copper Alloy			Crimp	Circular	Transparent - Blue	Tin	16 AWG	12 AWG	6 Stud	Insulated with Heat Shrink	11.05 mm	0.435 in
TE Connectivity AMP Connectors SGRT-2-03	Polyvinylidene Fluoride (PVDF)	1.455 in	36.96 mm	Free Hanging (In-Line)	Copper Alloy			Crimp	Circular	Transparent - Blue	Tin	16 AWG	12 AWG	6 Stud	Insulated with Heat Shrink	7.24 mm		0.285 "
TE Connectivity AMP Connectors SGRT-4-06	Polyvinylidene Fluoride (PVDF)			Free Hanging (In-Line)	Copper Alloy			Crimp	Circular	Transparent - Blue	Tin	10 AWG	7 AWG	6 Stud	Insulated with Heat Shrink	11.05 mm	0.435 in		1.865 in	47.37 mm
