LM3676 Series

Catalog

CONV DC-DC 2.9V TO 5.5V SYNCHRONOUS STEP DOWN SINGLE-OUT 1.8V 0.6A 8-PIN WSON EP T/R

Part	Output Type	Voltage - Input (Max) [Max]	Mounting Type	Function	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Switching	Voltage - Output (Min/Fixed)	Supplier Device Package	Output Configuration	Topology	Current - Output	Number of Outputs	Package / Case	Voltage - Output (Max) [Max]	Output Type	Supplied Contents	Outputs and Type	Outputs and Type	Utilized IC / Part	Voltage - Output [Min]	Voltage - Output [Max]	Main Purpose	Regulator Topology	Board Type
Texas Instruments LM3676SDX-1.8/NOPB	1.81 mOhm	5.5 V	Surface Mount	Step-Down	2.9 V	-30 °C	85 °C	2 MHz	1.8 V	8-WSON (3x3)	Positive	Buck	600 mA	1	8-WFDFN Exposed Pad
Texas Instruments LM3676SDX-ADJ		5.5 V	Surface Mount	Step-Down	2.9 V	-30 °C	85 °C	2 MHz	1.1 V	8-WSON (3x3)	Positive	Buck	600 mA	1	8-WFDFN Exposed Pad	3.3 V	Adjustable
Texas Instruments LM3676SD-1.8	1.81 mOhm	5.5 V	Surface Mount	Step-Down	2.9 V	-30 °C	85 °C	2 MHz	1.8 V	8-WSON (3x3)	Positive	Buck	600 mA	1	8-WFDFN Exposed Pad
Texas Instruments LM3676SD-3.3/NOPB	1.81 mOhm	5.5 V	Surface Mount	Step-Down	2.9 V	-30 °C	85 °C	2 MHz	3.3 V	8-WSON (3x3)	Positive	Buck	600 mA	1	8-WFDFN Exposed Pad
Texas Instruments LM3676SD-1.8/NOPB	1.81 mOhm	5.5 V	Surface Mount	Step-Down	2.9 V	-30 °C	85 °C	2 MHz	1.8 V	8-WSON (3x3)	Positive	Buck	600 mA	1	8-WFDFN Exposed Pad
Texas Instruments LM3676SDX-1.8	1.81 mOhm	5.5 V	Surface Mount	Step-Down	2.9 V	-30 °C	85 °C	2 MHz	1.8 V	8-WSON (3x3)	Positive	Buck	600 mA	1	8-WFDFN Exposed Pad
Texas Instruments LM3676SD-1.5/NOPB	1.81 mOhm	5.5 V	Surface Mount	Step-Down	2.9 V	-30 °C	85 °C	2 MHz	1.5 V	8-WSON (3x3)	Positive	Buck	600 mA	1	8-WFDFN Exposed Pad
Texas Instruments LM3676SD-ADJ/NOPB		5.5 V	Surface Mount	Step-Down	2.9 V	-30 °C	85 °C	2 MHz	1.1 V	8-WSON (3x3)	Positive	Buck	600 mA	1	8-WFDFN Exposed Pad	3.3 V	Adjustable
Texas Instruments LM3676SD-ADJ		5.5 V	Surface Mount	Step-Down	2.9 V	-30 °C	85 °C	2 MHz	1.1 V	8-WSON (3x3)	Positive	Buck	600 mA	1	8-WFDFN Exposed Pad	3.3 V	Adjustable

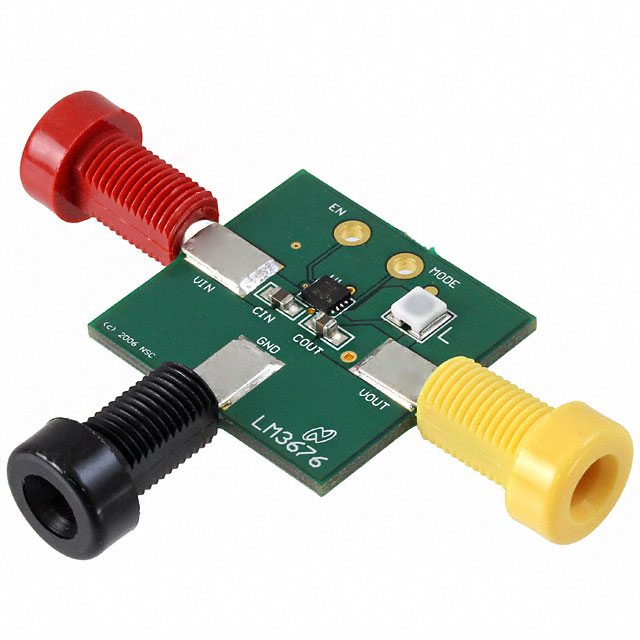

Texas Instruments LM3676SD-ADJEV								2 MHz					600 mA					Board(s)	Non-Isolated	1	LM3676	1 V	3.3 V	DC/DC Step Down	Buck	Fully Populated
