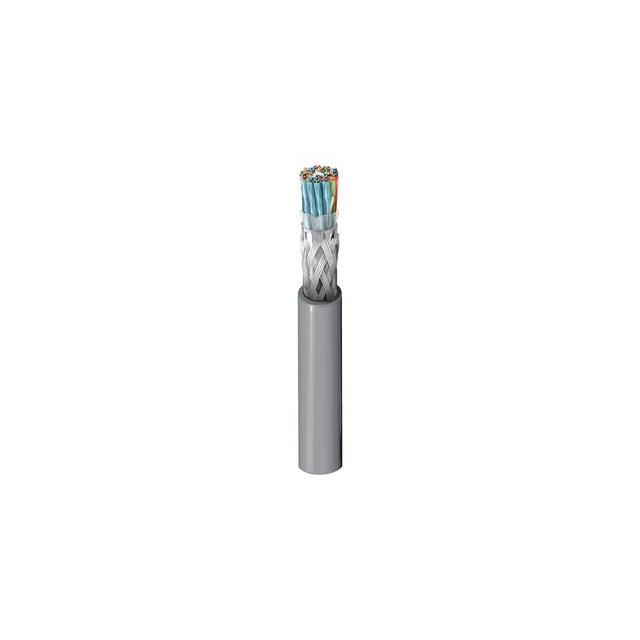

8185 Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 50COND 24AWG
| Part | Shield Material | Shield Coverage | Conductor Insulation | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Shield Type | Wire Gauge | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Voltage | Length | Length | Ratings | Usage | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Jacket Color | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Foam Polyethylene (FPE) | Multi-Pair | 60 °C | -40 C | Copper Tinned | Braid Foil | 24 AWG | Poly-Vinyl Chloride (PVC) | 20.88 mm | 0.822 in | 7 | 32 AWG | 50 | 300 VDC | 304.8 m | 1000 ft | UL Style 2493 | Computer | Drain Wire | 1.651 mm | 0.065 in | Chrome | ||
Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Foam Polyethylene (FPE) | Multi-Pair | 60 °C | -40 C | Copper Tinned | Braid Foil | 24 AWG | Poly-Vinyl Chloride (PVC) | 20.88 mm | 0.822 in | 7 | 32 AWG | 50 | 300 VDC | 152.4 m | 500 ft | UL Style 2493 | Computer | Drain Wire | 1.651 mm | 0.065 in | Chrome | ||
Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Foam Polyethylene (FPE) | Multi-Pair | 60 °C | -40 C | Copper Tinned | Braid Foil | 24 AWG | Poly-Vinyl Chloride (PVC) | 20.88 mm | 0.822 in | 7 | 32 AWG | 50 | 300 VDC | UL Style 2493 | Computer | Drain Wire | 1.651 mm | 0.065 in | Chrome | 100 ft | 30.5 m |
