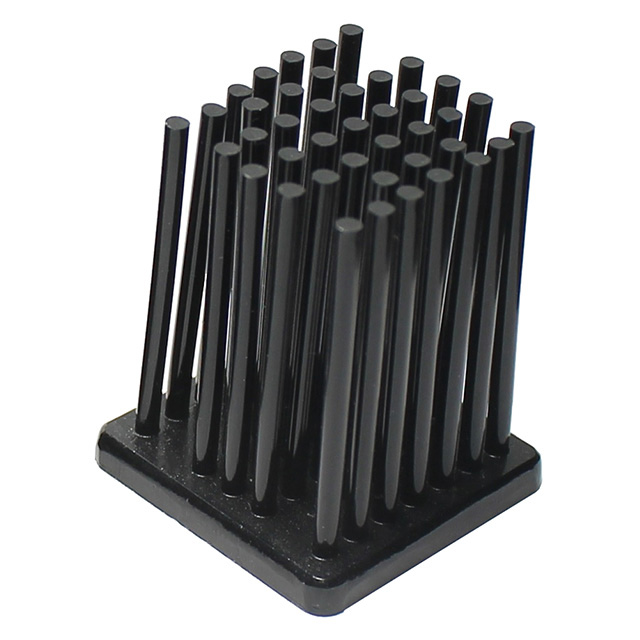

APR23 Series

Manufacturer: CTS Thermal Management Products

Catalog

HEATSINK FORGED BLK ANO TOP MNT

Part	Shelf Life	Thermal Resistance @ Forced Air Flow	Attachment Method	Thermal Resistance @ Natural	Shape	Width [x]	Width [x]	Type	Package Cooled	Material	Length	Length	Material Finish	Fin Height	Fin Height [custom]	Fin Height [custom]	Fin Height [custom]	Fin Height [custom]	Fin Height	Fin Height [z]	Fin Height [z]
CTS Thermal Management Products APR23-23-15CB/A01	24 Months	5.62 °C/W	Thermal Tape Adhesive (Included)	13.93 °C/W	Pin Fins Square	0.89 in	22.61 mm	Top Mount	ASIC BGA CPU LGA	Aluminum Alloy	0.89 in	22.61 mm	Black Anodized	14.6 mm	0.575 in
CTS Thermal Management Products APR23-23-23CB/A01	24 Months	4.62 °C/W	Thermal Tape Adhesive (Included)	12.81 °C/W	Pin Fins Square	0.89 in	22.61 mm	Top Mount	ASIC BGA CPU LGA	Aluminum Alloy	0.89 in	22.61 mm	Black Anodized			22.61 mm	0.89 in
CTS Thermal Management Products APR23-23-12CB/A01	24 Months	5.96 °C/W	Thermal Tape Adhesive (Included)	14.3 °C/W	Pin Fins Square	0.89 in	22.61 mm	Top Mount	ASIC BGA CPU LGA	Aluminum Alloy	0.89 in	22.61 mm	Black Anodized		0.457 in			11.6 mm
CTS Thermal Management Products APR23-23-18CB/A01	24 Months	5.26 °C/W	Thermal Tape Adhesive (Included)	13.54 °C/W	Pin Fins Square	0.89 in	22.61 mm	Top Mount	ASIC BGA CPU LGA	Aluminum Alloy	0.89 in	22.61 mm	Black Anodized	17.6 mm					0.693 in
CTS Thermal Management Products APR23-23-28CB/A01	24 Months	4.26 °C/W	Thermal Tape Adhesive (Included)	11.88 °C/W	Pin Fins Square	0.89 in	22.61 mm	Top Mount	ASIC BGA CPU LGA	Aluminum Alloy	0.89 in	22.61 mm	Black Anodized							27.6 mm	1.087 in
CTS Thermal Management Products APR23-23-21CB/A01	24 Months	4.94 °C/W	Thermal Tape Adhesive (Included)	13.2 °C/W	Pin Fins Square	0.89 in	22.61 mm	Top Mount	ASIC BGA CPU LGA	Aluminum Alloy	0.89 in	22.61 mm	Black Anodized	20.6 mm					0.811 in
CTS Thermal Management Products APR23-23-33CB/A01	24 Months	3.99 °C/W	Thermal Tape Adhesive (Included)	11.29 °C/W	Pin Fins Square	0.89 in	22.61 mm	Top Mount	ASIC BGA CPU LGA	Aluminum Alloy	0.89 in	22.61 mm	Black Anodized	32.6 mm					1.283 in
