IL-G-10P Series

Catalog

CONN HEADER R/A 10POS 2.5MM

Part	Number of Positions Loaded	Insulation Color	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Termination	Insulation Height [custom]	Insulation Height [custom]	Current Rating (Amps)	Mounting Type	Material Flammability Rating	Number of Rows	Insulation Material	Number of Positions	Fastening Type	Contact Shape	Connector Type	Contact Type	Pitch - Mating	Pitch - Mating	Style	Contact Finish - Post	Mated Stacking Heights	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Insulation Height	Insulation Height

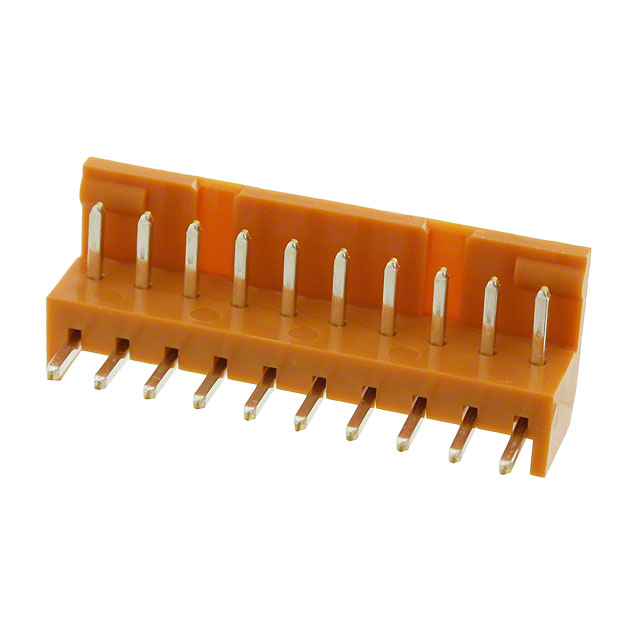

JAE Electronics IL-G-10P-S3L2-SA	All	Brown	Brass	85 °C	-40 C	Shrouded - 1 Wall	4 mm	0.157 in	0.138 in	3.5 mm	Solder	0.236 "	6 mm	3 A	Right Angle Through Hole	UL94 V-0	1	Nylon 6/6 Polyamide (PA66)	10	Friction Lock	Square	Header	Male Pin	2.5 mm	0.098 in	Board to Cable/Wire	Tin

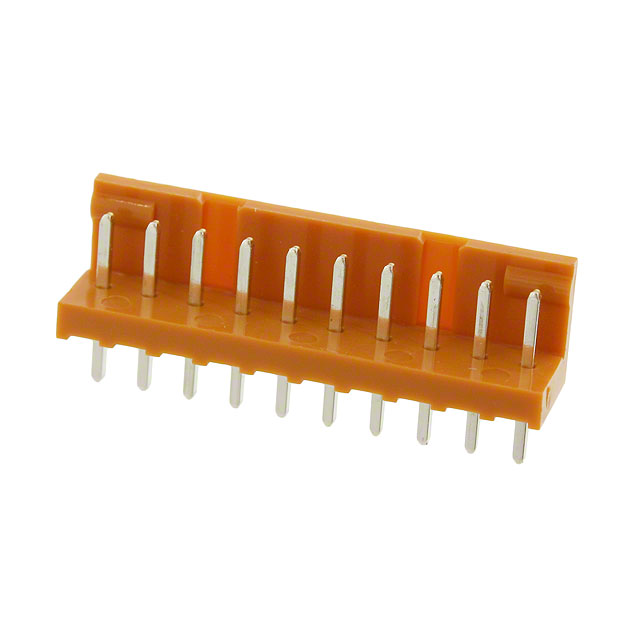

JAE Electronics IL-G-10P-S3T2-SA-1	All	Brown	Brass	85 °C	-40 C	Shrouded - 1 Wall	4 mm	0.157 in	0.138 in	3.5 mm	Solder			3 A	Through Hole	UL94 V-0	1	Nylon 6/6 Polyamide (PA66)	10	Friction Lock	Square	Header	Male Pin	2.5 mm	0.098 in	Board to Cable/Wire		10 mm	9.6 mm	0.378 in	3.9 µin	0.099 µm	Gold	0.28 in	7.1 mm
JAE Electronics IL-G-10P-S3T2-SA	All	Brown	Brass	85 °C	-40 C	Shrouded - 1 Wall	4 mm	0.157 in	0.138 in	3.5 mm	Solder			3 A	Through Hole	UL94 V-0	1	Nylon 6/6 Polyamide (PA66)	10	Friction Lock	Square	Header	Male Pin	2.5 mm	0.098 in	Board to Cable/Wire	Tin	10 mm	9.6 mm	0.378 in				0.28 in	7.1 mm
