895-037 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SINGLE FML 37POS 0.100

...

Part	Material - Insulation	Termination Rows	Pitch	Pitch	Number of Positions/Bay/Row	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Color	Card Thickness [Max]	Card Thickness [Min]	Gender	Number of Positions	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Read Out	Contact Finish	Number of Rows	Termination	Mounting Type	Card Type	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 895-037-520-408	Polyphenylene Sulfide (PPS)	1	0.1 "	2.54 mm	37	125 °C	-40 C	4-40 Threaded Insert Top Mount Opening	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	37	Cantilever	0.25 Ám	10 Áin	Copper Alloy	Single	Gold	1	Solder	Through Hole	Non Specified - Single Edge
EDAC Inc. 895-037-500-602	Polyphenylene Sulfide (PPS)	1	0.1 "	2.54 mm	37	125 °C	-40 C		Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	37	Cantilever	0.25 Ám	10 Áin	Copper Alloy	Single	Gold	1	Solder Eyelet(s)	Through Hole	Non Specified - Single Edge	3.25 mm	0.128 "
EDAC Inc. 895-037-542-107	Polyphenylene Sulfide (PPS)	1	0.1 "	2.54 mm	37	125 °C	-40 C	Flush Mount M3 Threaded Insert Top Opening	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	37	Cantilever	0.25 Ám	10 Áin	Copper Alloy	Single	Gold	1	Wire Wrap	Through Hole	Non Specified - Single Edge

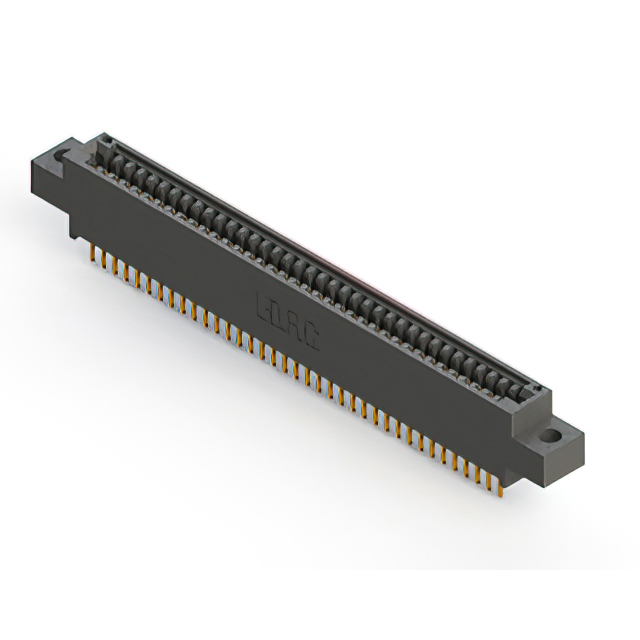

EDAC Inc. 895-037-558-604	Polyphenylene Sulfide (PPS)	1	0.1 "	2.54 mm	37	125 °C	-40 C		Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	37	Cantilever	0.25 Ám	10 Áin	Copper Alloy	Single	Gold	1	Solder	Right Angle Through Hole	Non Specified - Single Edge	3.96 mm	0.156 "
EDAC Inc. 895-037-521-607	Polyphenylene Sulfide (PPS)	1	0.1 "	2.54 mm	37	125 °C	-40 C	M3 Threaded Insert Top Mount Opening	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	37	Cantilever	0.25 Ám	10 Áin	Copper Alloy	Single	Gold	1	Solder	Through Hole	Non Specified - Single Edge
EDAC Inc. 895-037-541-102	Polyphenylene Sulfide (PPS)	1	0.1 "	2.54 mm	37	125 °C	-40 C	Flush Mount Top Opening Unthreaded	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	37	Cantilever	0.25 Ám	10 Áin	Copper Alloy	Single	Gold	1	Wire Wrap	Through Hole	Non Specified - Single Edge	3.25 mm	0.128 "

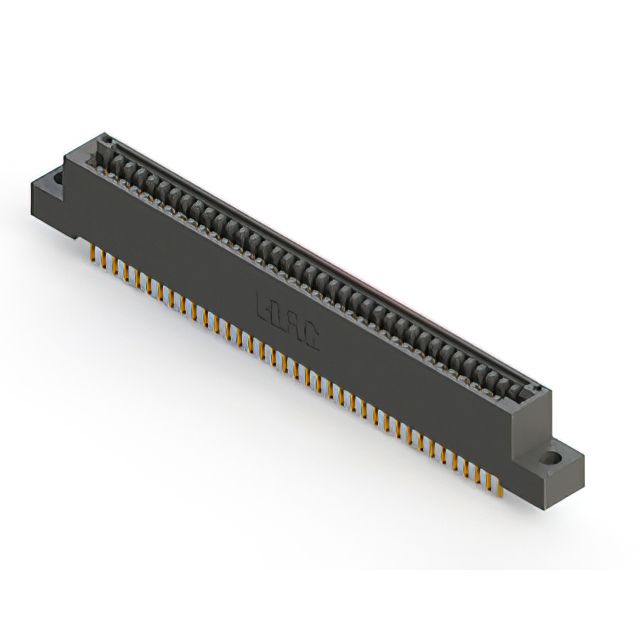

EDAC Inc. 895-037-558-104	Polyphenylene Sulfide (PPS)	1	0.1 "	2.54 mm	37	125 °C	-40 C	Flush Mount Top Opening Unthreaded	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	37	Cantilever	0.25 Ám	10 Áin	Copper Alloy	Single	Gold	1	Solder	Right Angle Through Hole	Non Specified - Single Edge	3.96 mm	0.156 "
EDAC Inc. 895-037-542-407	Polyphenylene Sulfide (PPS)	1	0.1 "	2.54 mm	37	125 °C	-40 C	M3 Threaded Insert Top Mount Opening	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	37	Cantilever	0.25 Ám	10 Áin	Copper Alloy	Single	Gold	1	Wire Wrap	Through Hole	Non Specified - Single Edge

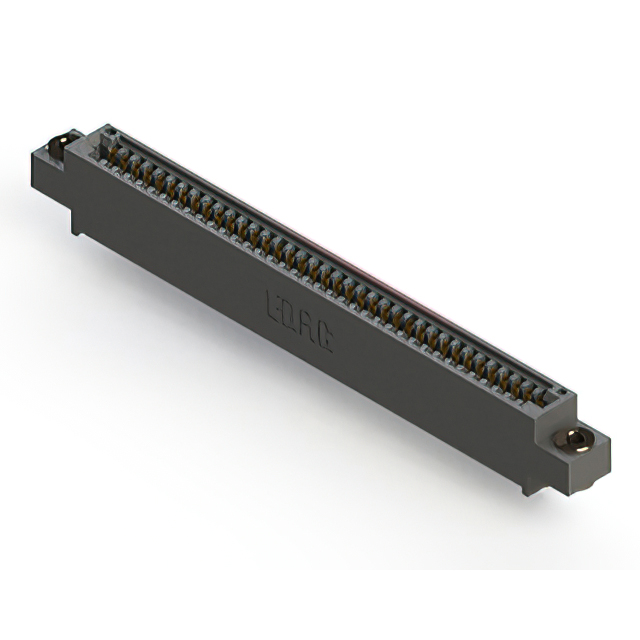

EDAC Inc. 895-037-521-603	Polyphenylene Sulfide (PPS)	1	0.1 "	2.54 mm	37	125 °C	-40 C	Floating Bobbin Top Mount Opening	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	37	Cantilever	0.25 Ám	10 Áin	Copper Alloy	Single	Gold	1	Solder	Through Hole	Non Specified - Single Edge	2.95 mm	0.116 "
EDAC Inc. 895-037-559-404	Polyphenylene Sulfide (PPS)	1	0.1 "	2.54 mm	37	125 °C	-40 C		Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	37	Cantilever	0.25 Ám	10 Áin	Copper Alloy	Single	Gold	1	Solder	Right Angle Through Hole	Non Specified - Single Edge	3.96 mm	0.156 "
