7105-1561 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SSMC F RA NA SD .47
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Center Contact Plating | Dielectric Material | Body Material | Body Finish | Mating Cycles | Frequency - Max [Max] | Mounting Type | Impedance | Cable Group | Shield Termination | Contact Termination | Number of Ports | Housing Color | Connector Type | Fastening Type | Connector Style | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

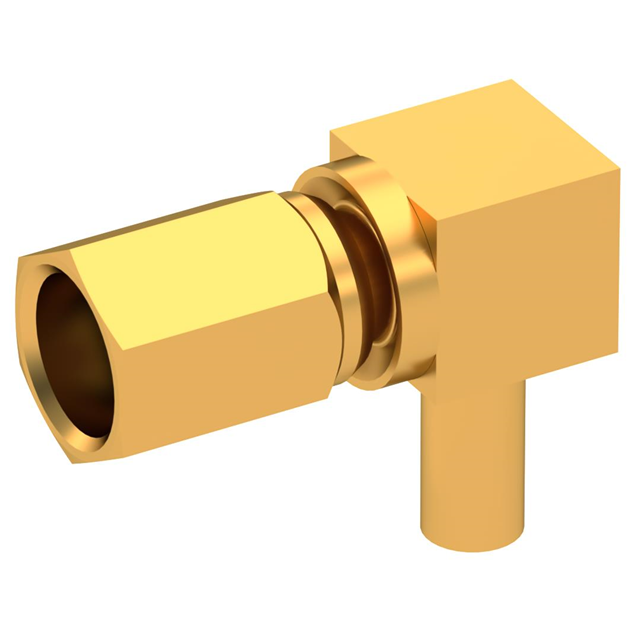

 Radiall USA, Inc. | -65 ░C | 165 °C | 250 V | Gold | Polytetrafluoroethylene (PTFE) | Brass | Gold | 500 | 12.4 GHz | Free Hanging (In-Line) Right Angle | 50 Ohms | M17/151 (0.047" Semi Rigid) | Solder | Solder | 1 | Gold | Female Socket Plug | Threaded | SSMC | Beryllium Copper |

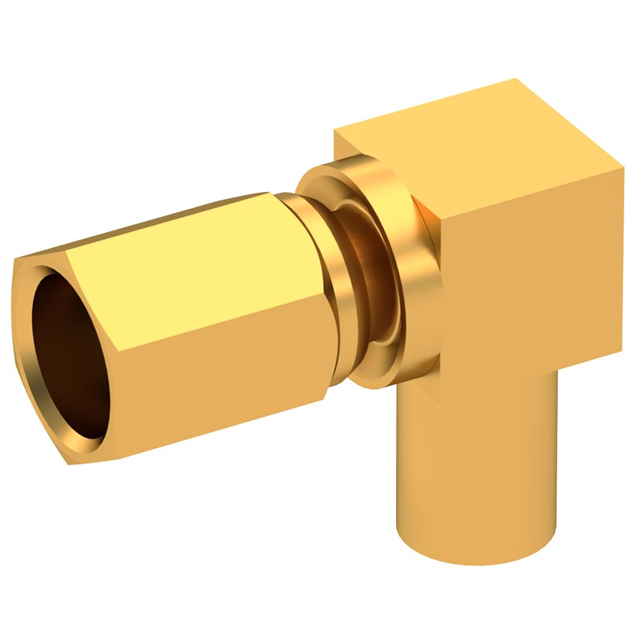

 Radiall USA, Inc. | -65 ░C | 165 °C | 250 V | Gold | Polytetrafluoroethylene (PTFE) | Brass | Gold | 500 | 12.4 GHz | Free Hanging (In-Line) Right Angle | 50 Ohms | RG-405 (.085" Semi Rigid) | Solder | Solder | 1 | Gold | Female Socket Plug | Threaded | SSMC | Beryllium Copper |
