F611 Series
Manufacturer: KEMET
Beta
⌘K

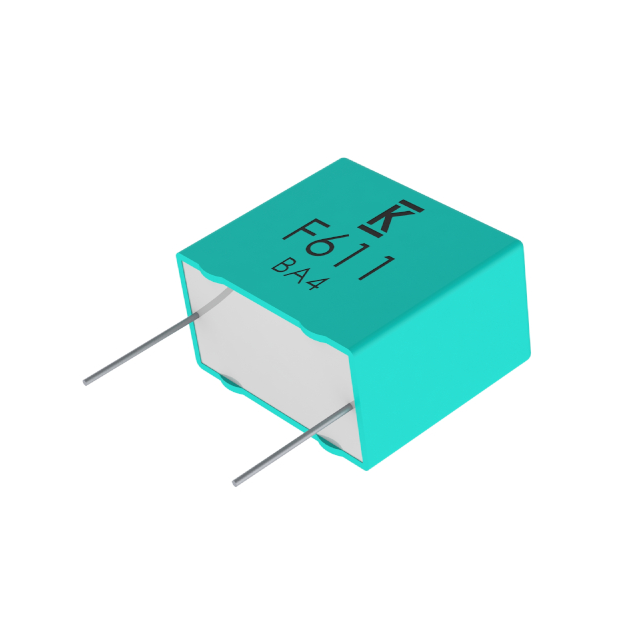

FILM CAPACITORS 100V 22UF 10% LS=22. 5MM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Capacitance | Voltage Rating - AC | Voltage Rating - DC | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Lead Spacing | Lead Spacing | Termination | Package / Case | Dielectric Material | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | -55 C | 105 ░C | 10 % | 22 µF | 63 V | 100 V | Through Hole | 24.5 mm | 0.965 in | 0.886 in | 22.5 mm | PC Pins | Radial | Polyester Metallized | 26 mm | 15.5 mm | 0.61 " | 1.024 in | General Purpose |
