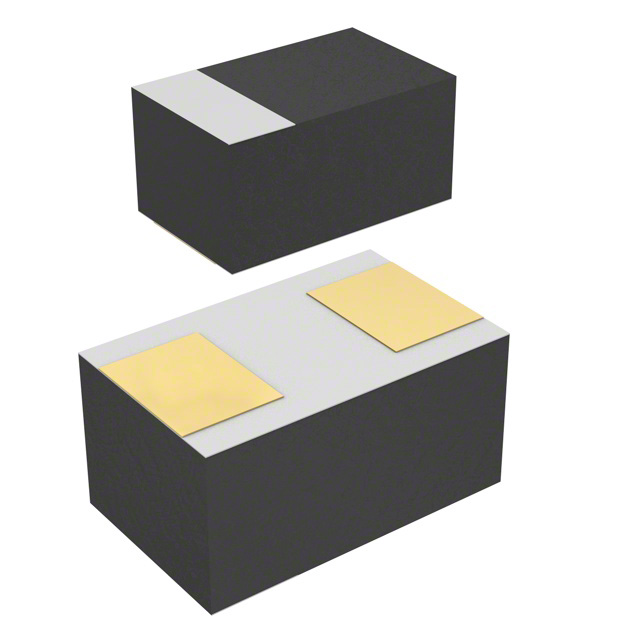

f38 Series
Manufacturer: KYOCERA AVX
Beta
⌘K
CAPACITOR: TANTALUM-POLYMER; 10UF; 10VDC; M; 0603; SMD; ESR: 300MΩ
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Features | Manufacturer Size Code | Tolerance | Capacitance | Voltage - Rated | Type | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | ESR (Equivalent Series Resistance) | Operating Temperature [Min] | Operating Temperature [Max] | Lifetime @ Temp. | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | 0.033 " | 0.063 " | 1.6 mm | 0.85 mm | General Purpose | M | 20 % | 10 µF | 10 V | Molded | Surface Mount | 0.035 in | 0.9 mm | 300 mOhm | -55 C | 105 ░C | 1000 Hrs | 1608 Metric | 0603 |
