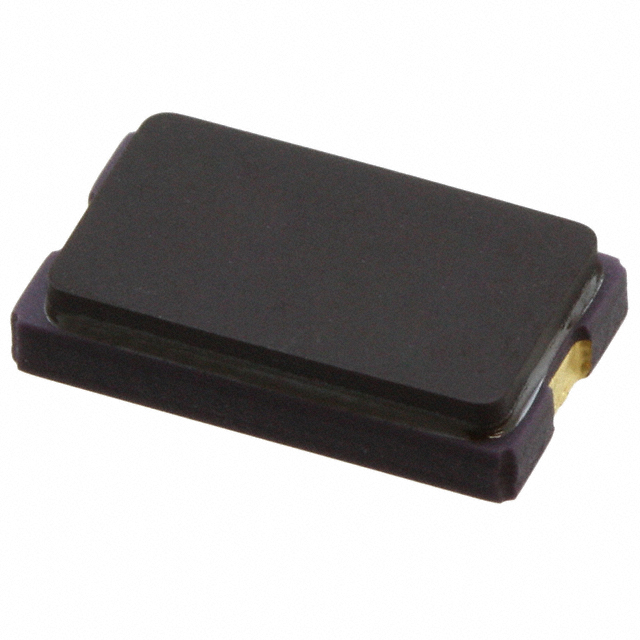

AX Series
Manufacturer: TXC CORPORATION
Beta
⌘K
CRYSTALS 8.0X4.5 GLASS SEAL MHZ QUARTZ XTAL -2PAD - AUTOMOTIVE GRADE / CERAMIC, +/-30PPM A.25C, +/-100PPM (-40 TO 125C), 8PF - AEC-Q200 CERTIFIED
| Part | Frequency Tolerance | Type | Load Capacitance | Mounting Type | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) | Frequency | Frequency Stability | Supplier Device Package | Ratings | Operating Mode | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | ESR (Equivalent Series Resistance) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TXC CORPORATION | 30 ppm | MHz Crystal | 8 pF | Surface Mount | 2-SMD No Lead | 0.059 " | 1.5 mm | 8 MHz | 100 ppm | 2-SMD (8x4.5) | AEC-Q200 | Fundamental | 4.5 mm | 0.177 " | 8 mm | 0.315 in | 125 °C | -40 C | |
 TXC CORPORATION | 30 ppm | MHz Crystal | 8 pF | Surface Mount | 2-SMD No Lead | 0.059 " | 1.5 mm | 28.63636 MHz | 30 ppm | 2-SMD (8x4.5) | Fundamental | 4.5 mm | 0.177 " | 8 mm | 0.315 in | 85 °C | -40 C | 80 Ohm |
